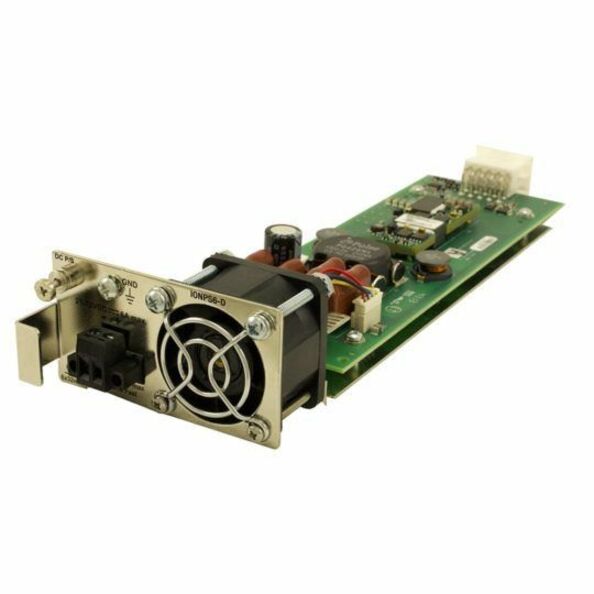

Lantronix IONPS6-D — DC Power Supply Module
$399.17$594.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- DC power input with -21 to -72 VDC and +21 to +72 VDC input
- ION106 chassis compatibility for the ION 6-Slot Chassis
- Redundant power support when a second AC or DC power supply is installed
- Hot-swappable front-mounted power supply module for the ION 6-Slot Chassis
- Power On LED status indication on the ION106 chassis frame
- IONMM management support for management and configuration when installed in the ION106 chassis
The Lantronix IONPS6-D is a redundant DC power supply module for use in the ION106 chassis. It supports -21 to -72 VDC and +21 to +72 VDC input for the ION 6-Slot Chassis. The ION 6-Slot Chassis can support up to two hot-swappable power supply modules mounted in the front of the chassis. A single power supply can power all slide-in modules installed in the chassis, and the system can be made redundant with a second AC or DC power supply. In a redundant configuration, the power supplies operate in an instant fail-over mode. Management and configuration of the power supply modules is available when the IONMM management module card is installed in the ION106 chassis.
Ideal For
- Adding redundant DC power to an ION106 6-Slot Chassis
- Replacing or adding a front-mounted power supply module in an ION 6-Slot Chassis
- Supporting ION Platform deployments in service provider, data center, and core network applications
- Managing and configuring power supply modules when an IONMM management module card is installed
Specifications
| Depth | 3” [76.2 mm] |
| Width | 1.63″ [41.4 mm] |
| Height | 9.75” [247.7 mm] |
| Weight | 0.94 lbs. [0.43 kg] |
| Storage | -40°C to 70°C |
| Altitude | 0 – 10,000 ft. (with de-rating) |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Operating | 0°C to 50°C |
| Application | Up to 2 power supply modules can be used in the 6-Slot ION Chassis, ION106 |
| Power Input | -21 to -72 VDC and +21 to +72 VDC input |
| Status Leds | Power On LEDs for each installed power supply module are installed on the frame of the ION106 chassis |
| Certification | UL listed; EN55022 Class A; EN55024; CE Mark; FCC Class A; CISPR Class A |
| Compatibility | ION106 |
| MTBF Bellcore | Greater than 178,750 Hours |
| MTBF Milhdbk217f | Greater than 65,000 Hours |
Frequently Asked Questions
Which chassis does the IONPS6-D support?▾
The IONPS6-D is for use in the ION106 chassis, the ION 6-Slot Chassis.
Is the IONPS6-D hot-swappable?▾
Yes. The ION 6-Slot Chassis can support up to two hot-swappable power supply modules mounted in the front of the chassis.
What DC input range does this power supply support?▾
The power input is -21 to -72 VDC and +21 to +72 VDC input.
Can the power supply module be managed?▾
Management and configuration of the power supply modules is available when the IONMM management module card is installed in the ION106 chassis.
