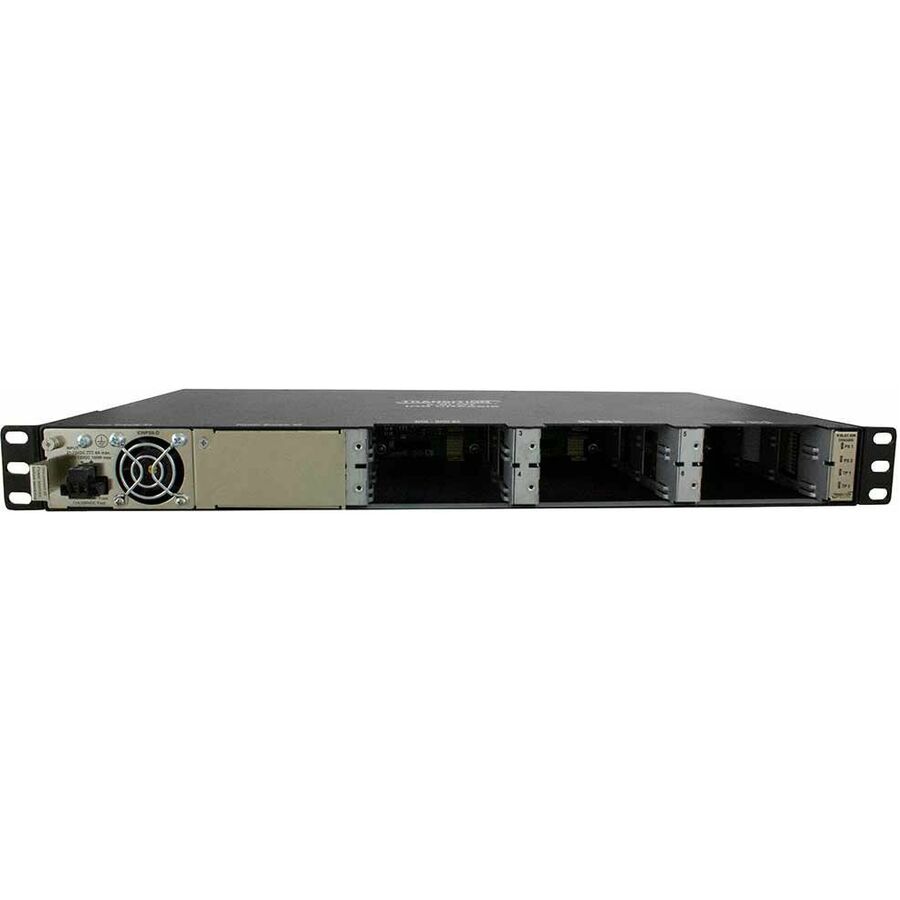

Lantronix ION106-D — 6-Slot Chassis with DC Power Supply
$604.65$891.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 6-slot ION chassis for ION slide-in modules
- 1 DC power supply included
- 2 power supply bays support one required module and an optional redundant second module
- 1U rack-mountable form factor
- Telnet, web and SNMP management access with an ION Management Module
- Management VLAN, TLS/SSL, SSH, IEEE 802.1X/RADIUS, SNMP and ACL Rules supported through the ION Management Module
The Lantronix ION106-D is a 6-slot ION Chassis with (1) DC power supply. It provides a rack-mountable platform for ION slide-in modules in service provider, data center and core network applications. The ION Platform accommodates a variety of modules and interface devices supporting multiple protocols and networking environments, including Ethernet and TDM networks. It is designed for integrating copper and fiber equipment with infrastructure. To take full advantage of the chassis features and functions, an ION Management Module is required. The management module communicates with individual cards in the chassis so a network administrator can configure, monitor and troubleshoot ION slide-in modules remotely. Only one power supply module is required to power the chassis and installed modules. An optional second power supply module provides redundancy for instant fail-over.
Ideal For
- Mounting ION slide-in modules in a 1U rack-mountable chassis
- Integrating copper and fiber equipment with network infrastructure
- Central-office, data center and core network applications
- Remote configuration, monitoring and troubleshooting of ION slide-in modules through an ION Management Module
Specifications
| Depth | 10” [254 mm] |
| Slots | 6 Slot |
| Width | 17″ [430 mm] |
| Height | 1.75” [44.45 mm] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Form Factor | Rack-mountable |
| Console Port | USB console port |
| Card Slot Power | +12VDC maximum to each card slot |
| AC Input Voltage | 100-240VAC |
| DC Input Voltage | -21 to -72VDC and +21 to +72VDC |
| Limited Warranty | Lifetime |
| Storage Temperature | -40°C to 85°C |
| Compatible Rack Unit | 1U |
| Included Power Supply | (1) DC power supply |
| Operating Temperature | 0°C to 50°C |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Management Access Methods | Telnet, web, SNMP |
| Management Ethernet Interfaces | (2) 10/100 Ethernet interfaces |
| Number Of Power Supplies Supported | 2 |
Documentation
Frequently Asked Questions
What is included with ION106-D?▾
ION106-D is a 6-slot ION Chassis with (1) DC power supply for ION slide-in modules.
Does the chassis support redundant power?▾
Yes. The chassis has two open bays for ION 6-slot power supply modules. Only one power supply module is required; an optional second power supply module provides redundancy for instant fail-over.
Is a management module required?▾
To take full advantage of the features and functions available with the ION Chassis, an ION Management Module is required. It allows a network administrator to configure, monitor and troubleshoot ION slide-in modules remotely.
What environment is the ION106-D specified for?▾
The operating range is 0°C to 50°C, with 5% to 95% non-condensing humidity and 0 – 10,000 ft. altitude.
