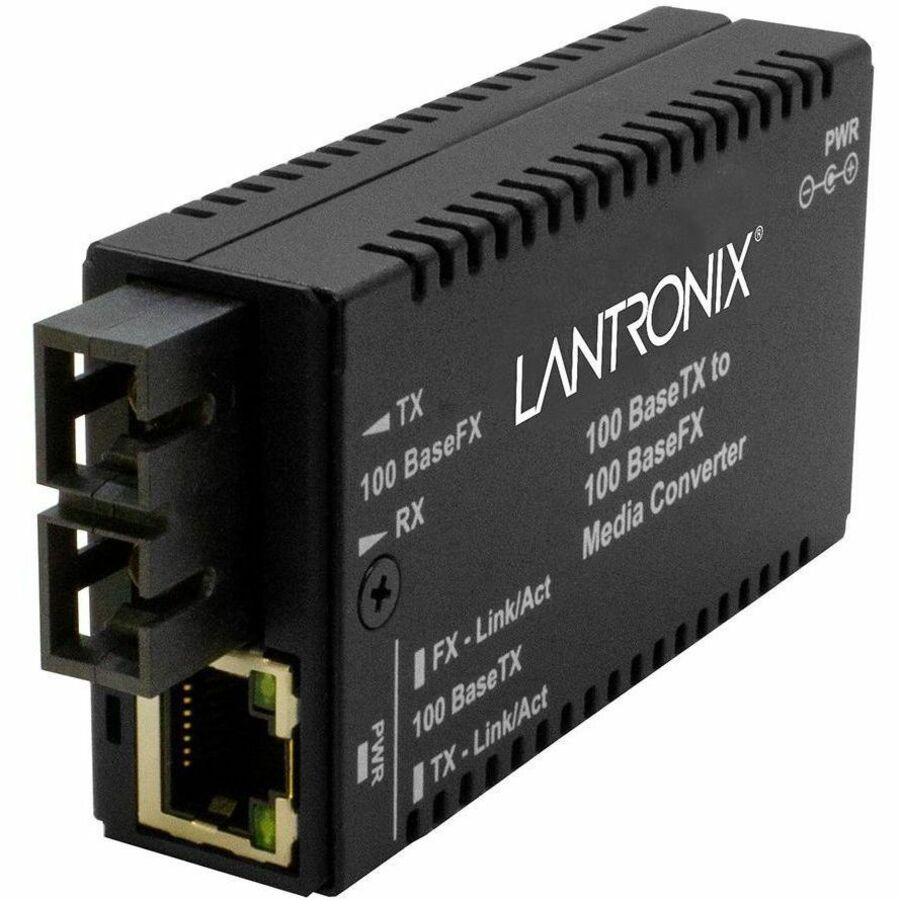

Lantronix M/E-TX-FX-01(SC)-NA — M/E-TX-FX-01-NA M/E-TX Series Media Converter
$95.98$139.00
Ships from and sold by A5 IT
-NA%20%E2%80%94%20M%2FE-TX-FX-01-NA%20M%2FE-TX%20Series%20Media%20Converter&mpn=M%2FE-TX-FX-01(SC)-NA&price=9598&image=https%3A%2F%2Fcontent.etilize.com%2FMain%2F1078169316.jpg&vendor=Lantronix){kind=link}
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 100Base-TX to 100Base-FX conversion for Fast Ethernet media conversion
- 1 RJ-45 network port and 1 SC port for copper-to-fiber connectivity
- 1300nm multimode SC fiber reach up to 2km/1.2mi
- Low-Latency Layer 1 Design retransmits Fast Ethernet signals without store-and-forward packet inspection delays
- Unit and port LEDs provide quick status information
- Auto-Negotiation and Auto-MDI/MDIX support
- Mini size is 65% smaller than standard media converter
- Convert Fast Ethernet copper to fiber using 100Base-TX to 100Base-FX conversion

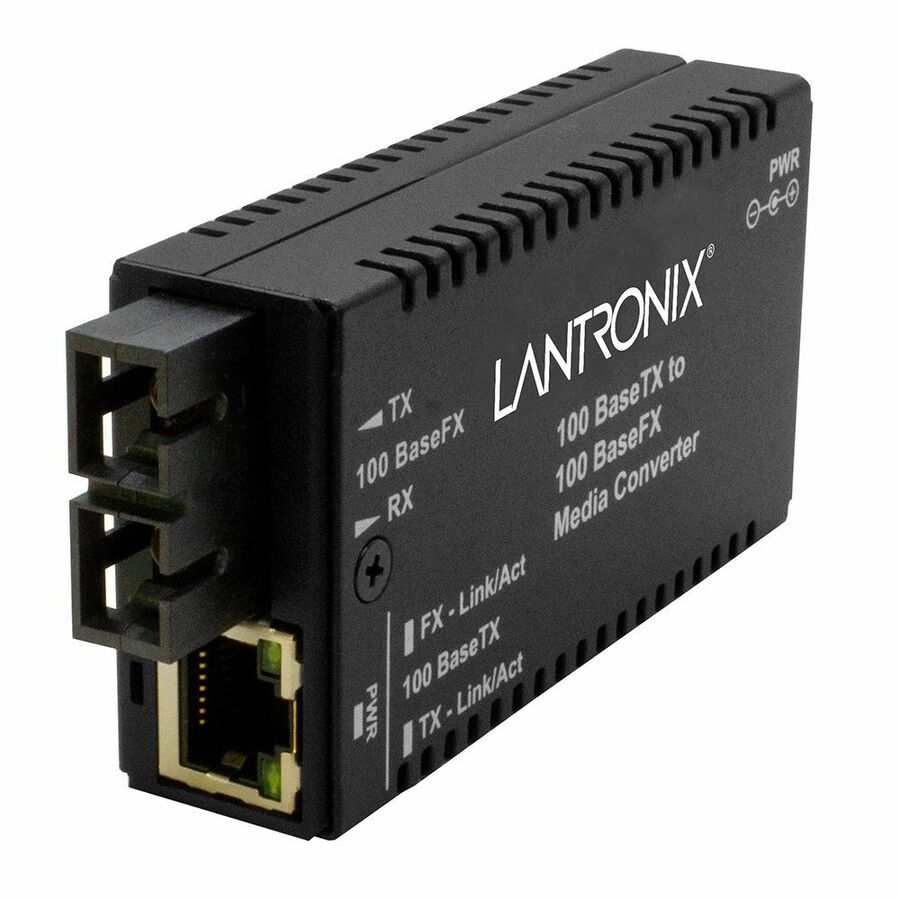

The Lantronix M/E-TX-FX-01(SC)-NA is a Mini Fast Ethernet media converter in the M/E-TX Series. It provides media conversion between 100Base-TX ports and 100Base-FX ports. This SKU connects 100Base-TX (RJ-45) [100m/328 ft.] to 100Base-FX 1300nm multimode (SC) [2km/1.2mi.] with an 11.0db link budget. The mini converter can be used in pairs or as a single unit to add fiber optic cabling to copper-rich Fast Ethernet environments. Its Low-Latency Layer 1 Design retransmits Fast Ethernet signals without store-and-forward packet inspection delays. Unit and port LEDs provide quick status information, with Auto-Negotiation and Auto-MDI/MDIX included.
Ideal For
- Integrating fiber optic cabling into copper-rich Fast Ethernet environments
- Extending Fast Ethernet data over fiber beyond twisted pair distances
- Adding a 100Base-FX 1300nm multimode SC link to a 100Base-TX RJ-45 device
- Installing media conversion where available space is limited
Specifications
| MTBF | 41,680 hours (MIL-HDBK-217F); 114,580 hours (Bellcore7 V5.0) |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 100 Mbps |
| Power LED | PWR (Power) below RJ-45: On = Power |
| Standards | IEEE 802.3u |
| Dimensions | 1.8” [46 mm] x 3.3” [85 mm] x 0.85 [22 mm] |
| Form Factor | Mini |
| Link Budget | 11.0db |
| Power Input | 7.5VDC to 13.9VDC |
| Power Supply | External AC/DC required; +12VDC, 0.5A |
| Certifications | Wall Mount Power Supply, UL Listed, cUL Listed (Canada) |
| Fiber Distance | 2km/1.2mi. |
| Copper Distance | 100m/328 ft |
| Fiber Interface | 100Base-FX 1300nm multimode (SC) |
| Copper Interface | 100Base-TX (RJ-45) |
| Power Consumption | 2.6 Watts |
| Network Technology | 100Base-TX to 100Base-FX |
| Ethernet Technology | Fast Ethernet |
| Storage Temperature | -15°C to 65°C |
| Operating Temperature | 0°C to 50°C |
| Fiber Link Activity LED | FX-Link/Act (Fiber Link / Activity) Upper Left on RJ-45: On = link, Flashing = Activity |
| Copper Link Activity LED | TX-Link/Act (Copper Link / Activity) Upper Right on RJ-45: On = link, Flashing = Activity |
Frequently Asked Questions
What does this media converter connect?▾
It converts 100Base-TX (RJ-45) to 100Base-FX 1300nm multimode (SC).
What fiber distance does this SKU support?▾
The M/E-TX-FX-01(SC)-NA is listed for 2km/1.2mi. over 100Base-FX 1300nm multimode fiber.
What power does it require?▾
It requires External AC/DC power; +12VDC, 0.5A. The specified power input range is 7.5VDC to 13.9VDC.
Which status LEDs are provided?▾
The M/E-TX Series includes PWR, FX-Link/Act, and TX-Link/Act status LEDs.
