Lantronix M/GE-ISW-SFP-01-PD — Media Converter
$339.83$506.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T to 100/1000Base-X conversion with RJ-45 copper and an Open SFP Slot
- IEEE 802.3af PD power input from the RJ-45 TP interface
- Auto-Negotiation with Auto-MDI/MDIX on the copper port
- Fixed Full-Duplex on Fiber
- Active Link Pass Through
- Jumbo Frame support up to 10240 bytes
- DIN Rail clip and Velcro included

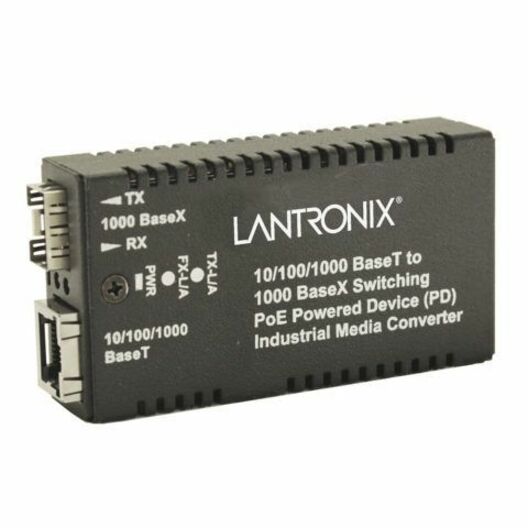

Lantronix M/GE-ISW-SFP-01-PD is a hardened Mini Powered Device Gigabit Ethernet media converter for 10/100/1000Base-T to 100/1000Base-X. It provides an Open SFP Slot and takes IEEE 802.3af PD power input from the RJ-45 TP interface. The converter supports Auto-Negotiation, Auto-MDI/MDIX on the copper port, Fixed Full-Duplex on Fiber, Active Link Pass Through, and Jumbo Frame up to 10240 bytes. Unit and port LEDs show power, fiber link/activity, and copper link/activity status. It operates from -40°C to +75°C and includes a DIN Rail clip and Velcro. The compact housing measures 1.8” [46 mm] wide, 3.3” [85 mm] deep, and 0.85” [22 mm] high.
Ideal For
- Converting 10/100/1000Base-T RJ-45 copper links to 100/1000Base-X SFP fiber links
- Adding fiber connectivity in hardened 10/100/1000 UTP environments
- Using PoE power input where a separate power connection is not required
- Installing a compact media converter with the included DIN Rail clip or Velcro
Specifications
| PoE++ | Class 1 Powered Device (0.44 Watts – 3.84 Watts) |
| MTBF | Greater than 225,000 Hours (MIL-HDBK-217F); Greater than 618,750 Hours (Bellcore) |
| Depth | 3.3” [85 mm] |
| Width | 1.8” [46 mm] |
| Height | 0.85” [22 mm] |
| Weight | 0.40 lbs. [0.18 kg] |
| Pwr LED | (below RJ-45) ON = Lit for normal operation |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 10/100/1000 Mbps |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3x; IEEE 802.3af |
| Power Input | IEEE 802.3af supplied through TP RJ-45 |
| Certifications | FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark |
| Max Frame Size | 10240 bytes |
| Fx-link Act LED | (Upper Left on RJ-45) On = link; Flashing = Activity |
| Tx-link Act LED | (Upper Right on RJ-45) On = link; Flashing = Activity |
| Media Conversion | PoE Powered Hardened Mini 10/100/1000Base-T (RJ-45) to 100/1000Base-X Open SFP Slot |
| Power Consumption | 1.8 Watts |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -40°C to +75°C |
Frequently Asked Questions
What media does the M/GE-ISW-SFP-01-PD convert?▾
It converts 10/100/1000Base-T (RJ-45) to 100/1000Base-X through an Open SFP Slot.
How is the converter powered?▾
It uses IEEE 802.3af supplied through TP RJ-45 and is a PoE Class 1 Powered Device (0.44 Watts – 3.84 Watts).
What operating temperature range does it support?▾
The operating temperature is -40°C to +75°C.
What mounting items are included?▾
A DIN Rail clip and Velcro are included.
