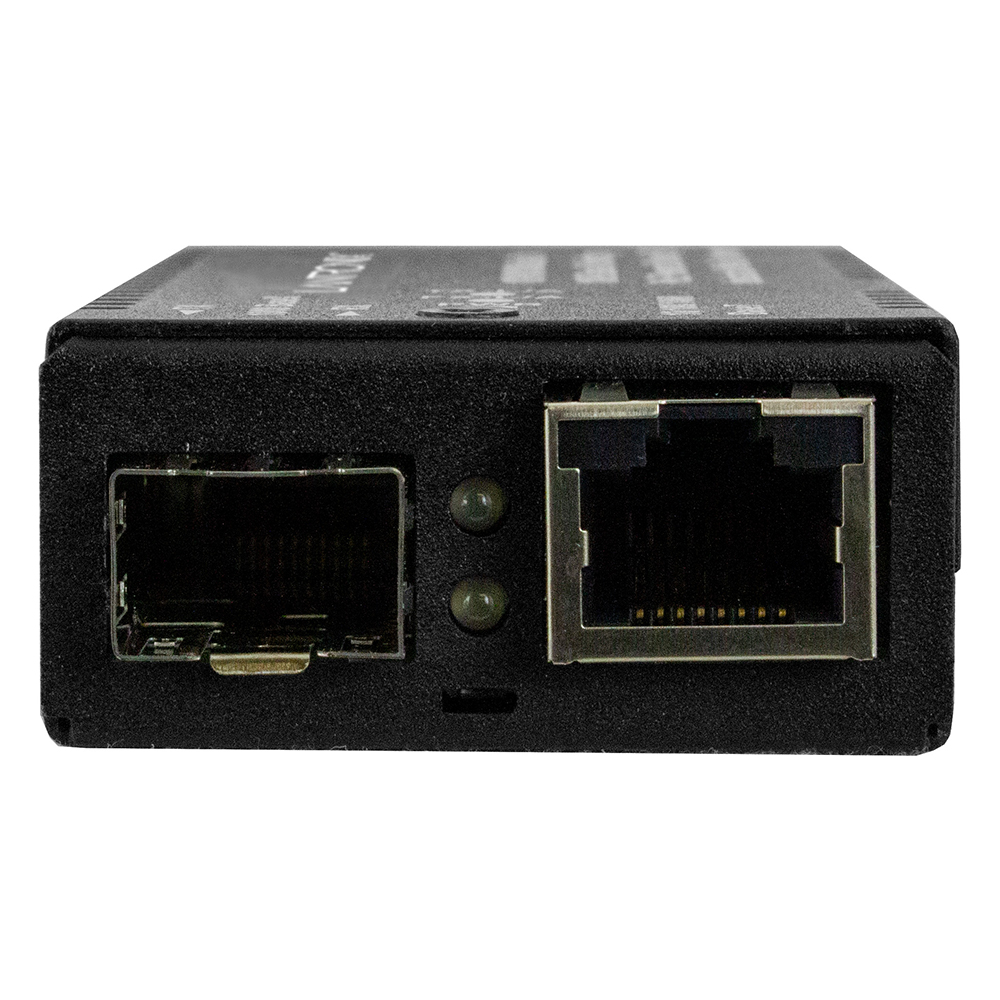

Lantronix M/GE-ISW-SFP-01-PD PoE-Powered Hardened Mini Media Converter
The M/GE-ISW-SFP-01-PD is a hardened mini Gigabit media converter that draws its own power from an IEEE 802.3af PoE switch port, converting copper to fiber through an open SFP slot where no local power outlet exists.
From $339.83
Overview
About the Lantronix M/GE-ISW-SFP-01-PD
Most media converters need a power adapter or terminal-block supply at the installation point. The M/GE-ISW-SFP-01-PD removes that requirement: it is an IEEE 802.3af Class 1 powered device that takes power over the same RJ-45 cable that carries its data. Connect it to a PoE switch port and it converts that copper link to fiber, which simplifies installs in ceilings, poles and enclosures without an outlet.
The copper port runs 10/100/1000Base-T with auto-negotiation and Auto-MDI/MDIX, and the fiber side is an open 100/1000Base-X SFP slot, so multimode, single-mode or long-reach optics can be fitted to suit the run. The converter draws 1.8 W, within its Class 1 range of 0.44 to 3.84 W. It operates from -40°C to +75°C and stores from -40°C to +85°C.
The housing measures 46 x 85 x 22 mm and weighs 0.18 kg, with a DIN-rail clip and Velcro included and a WMBM wall bracket offered separately. Active Link Pass Through, fixed full-duplex fiber and 10,240-byte jumbo frames are supported. Searchers may also see the part written as MGE-ISW-SFP-01-PD, without the slash.
Key capabilities
- Powered by 802.3af PoE
- The converter takes its power from the RJ-45 data port as an IEEE 802.3af Class 1 device, so no adapter or local outlet is needed.
- Open SFP slot
- An empty 100/1000Base-X SFP slot accepts the module that fits the fiber type, wavelength and distance of each run.
- Hardened temperature range
- Operates from -40°C to +75°C with 5% to 95% non-condensing humidity, for cabinets and enclosures exposed to temperature extremes.
- Low 1.8 W draw
- Consumption of 1.8 W fits well within a PoE port's budget and leaves switch power for other devices.
- DIN-rail ready
- A DIN-rail clip and Velcro are included, and the 46 x 85 x 22 mm housing fits tight spaces.
How to choose the right M/GE-ISW-SFP-01-PD part number
This family has a single converter part number, M/GE-ISW-SFP-01-PD, a PoE-powered hardened mini converter from 10/100/1000Base-T to an open 100/1000Base-X SFP slot. Choose the SFP module separately to set fiber type and reach. The only listed accessory is the WMBM 3.3-inch wall mount bracket, which fits all mini media converters; a DIN-rail clip is already included.
Configure & order
Find your M/GE-ISW-SFP-01-PD part number
Every orderable M/GE-ISW-SFP-01-PD configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
M/GE-ISW-SFP-01-PD
RJ-45 (Ethernet) · 10/100/1000 Mbps · SFP (open slot) · Set by the SFP module
$339.83
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the M/GE-ISW-SFP-01-PD, organized by what it does — mounting & enclosures— each with why you'd add it.
Mounting & enclosures
1 item
WMBM
WMBM
3.3” [84 mm] wall mount bracket kit for “Mini” Media Converters. It is listed as a compatible accessory for the M/GE-PSW-PSE-01 series.
$16.19
4 in stock
Compatibility taken from the Lantronix part-number tables for the M/GE-ISW-SFP-01-PD. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the M/GE-ISW-SFP-01-PD is used
- Fiber extension from a PoE switch where no outlet exists
- Hardened fiber links in outdoor or industrial enclosures
- Converting a PoE switch port to a fiber uplink
- Ceiling or pole installs needing minimal power wiring
M/GE-ISW-SFP-01-PD FAQ
How is the M/GE-ISW-SFP-01-PD powered?
By IEEE 802.3af Power over Ethernet supplied through its RJ-45 twisted-pair port. It is a Class 1 powered device (0.44 to 3.84 W) and draws 1.8 W, so it needs a PoE-capable switch port or midspan injector on the copper side.
Can the M/GE-ISW-SFP-01-PD provide PoE to other devices?
No. It is a powered device (PD), not a power source. It consumes PoE on its RJ-45 port to run itself and converts that copper link to fiber through its SFP slot.
Does it include an SFP module?
No. The 100/1000Base-X SFP slot ships open, so you install a module matched to your fiber type, wavelength and distance. The slot supports 100 Mbps or 1000 Mbps fiber links.
What is the operating temperature of the M/GE-ISW-SFP-01-PD?
-40°C to +75°C, with storage from -40°C to +85°C, 5% to 95% non-condensing humidity and altitude up to 10,000 ft. Certifications listed are FCC Class A, CISPR22/EN55022 Class A, EN55024 and CE Mark.
