Lantronix M/GE-PSW-SX-01(LC)-NA — M/GE-PSW-SX-01-NA Media Converter
$277.64$413.00
Ships from and sold by A5 IT
-NA%20%E2%80%94%20M%2FGE-PSW-SX-01-NA%20Media%20Converter&mpn=M%2FGE-PSW-SX-01(LC)-NA&price=27764&image=https%3A%2F%2Fcontent.etilize.com%2FMain%2F1078169320.jpg&vendor=Lantronix){kind=link}
Free 2-3 Day ShippingArrives by Wednesday, Oct 21
Order within 12h 43m to get it by Wednesday, Oct 21
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T to 1000Base-SX conversion for copper-to-fiber Gigabit Ethernet links
- 1 RJ-45 network port and 1 LC fiber port
- 850nm multimode fiber support with 62.5/125 µm and 50/125 µm distance listings
- Auto-Negotiation for copper Ethernet connection setup
- Auto-MDI/MDIX for RJ-45 cabling flexibility
- Active Link Pass Through and Automatic Link Restoration
- Jumbo Frame support up to 10,240 Bytes
- Convert 10/100/1000BASE-T copper to 1000BASE-SX fiber using a dedicated Gigabit media path

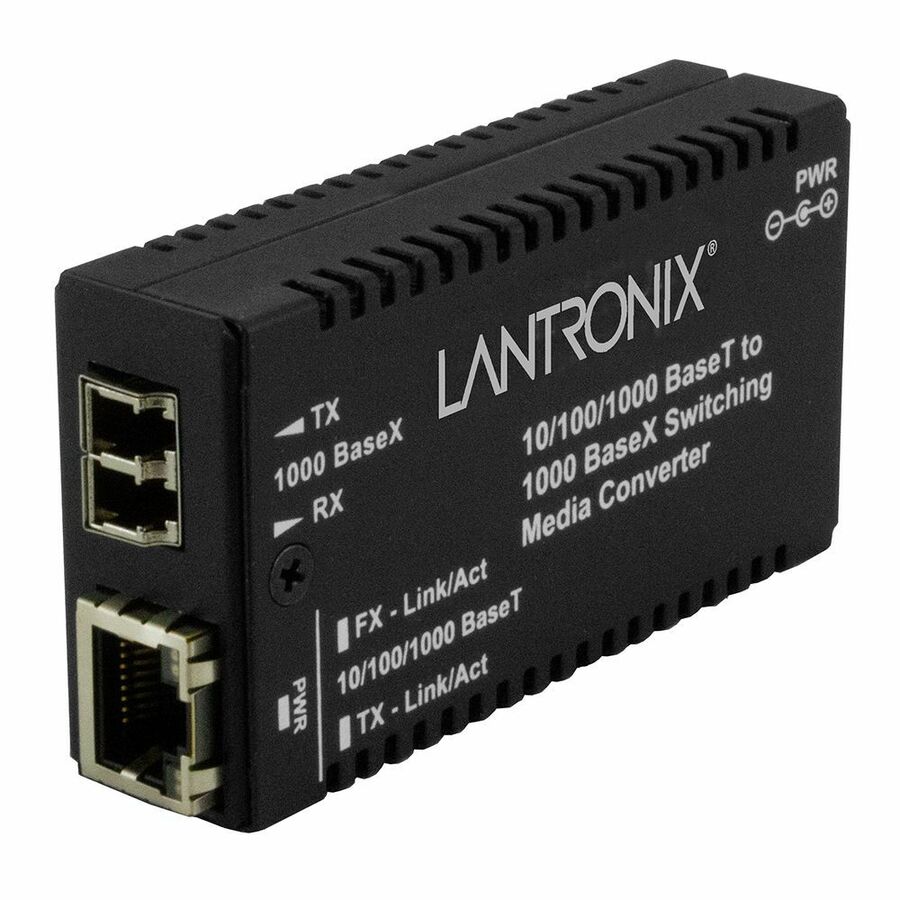

Lantronix M/GE-PSW-SX-01(LC)-NA is a Mini Gigabit Ethernet media converter for 10/100/1000Base-T RJ-45 to 1000Base-SX 850nm multimode fiber conversion. This LC model is part of the M/GE-PSW Series. The converter provides 1 network RJ-45 port and 1 LC fiber port. The Lantronix part-table row lists 100 m/328 ft. on the copper side, 220 m/722 ft. on 62.5/125 µm fiber, and 550m/1804 ft. on 50/125 µm fiber. It supports Auto-Negotiation, Auto-MDI/MDIX, Active Link Pass Through, Automatic Link Restoration and Jumbo Frame up to 10,240 Bytes. Product data lists AC Adapter power and standalone, wall, DIN rail and rack-mountable use.
Ideal For
- Convert a 10/100/1000Base-T RJ-45 link to 1000Base-SX multimode fiber
- Connect an existing 10/100 Mbps device to 1000 Mbps devices
- Extend a Gigabit Ethernet connection over LC multimode fiber within the listed fiber distances
- Deploy as a standalone, wall-mounted, DIN Rail Mountable or rack-mountable media converter
Specifications
| Depth | 3.3" |
| Model | M/GE-PSW-SX-01(LC)-NA |
| Height | 0.9" |
| Series | M/GE-PSW Series |
| Mounting | Standalone; Wall Mountable; DIN Rail Mountable; Rack-mountable |
| Data Rate | 1000 Mbit/s |
| Compliance | TAA Compliant |
| Fiber Port | 1 x LC |
| Form Factor | Mini |
| Jumbo Frame | Up to 10,240 Bytes |
| Network Port | 1 x Network (RJ-45) |
| Power Source | AC Adapter |
| Power Supply | -NA Power Supply |
| Converter Type | Media converter |
| Fiber Interface | 1000Base-SX 850nm multimode (LC) |
| Copper Interface | 10/100/1000Base-T (RJ-45) [100 m/328 ft.] |
| Limited Warranty | Lifetime |
| Fiber Duplex Mode | Fixed Full-Duplex on fiber |
| Ethernet Technology | Gigabit Ethernet |
| Fiber Mode Supported | Multi-mode |
| 50 125 µM Link Budget | 7.0 dB |
| 625 125 µM Link Budget | 7.0 dB |
| Environmental Compliance | WEEE; RoHS; REACH |
| 50 125 µM Fiber Distance | 550m/1804 ft |
| 625 125 µM Fiber Distance | 220 m/722 ft |
| Fiber Optic Cable Core Cladding Specification | 62.5/125 µm; 50/125 µm |
Documentation
Frequently Asked Questions
What network conversion does this media converter provide?▾
It converts 10/100/1000Base-T (RJ-45) to 1000Base-SX 850nm multimode fiber with an LC connector.
What multimode fiber distances are listed for this LC model?▾
The Lantronix part-table row lists 62.5/125 µm fiber at 220 m/722 ft. and 50/125 µm fiber at 550m/1804 ft.
How is this SKU powered?▾
The product data lists an AC Adapter, and this SKU is supplied with the -NA power supply.
Can it be mounted in different ways?▾
Yes. The product data lists Standalone, Wall Mountable, DIN Rail Mountable and Rack-mountable form factors.
