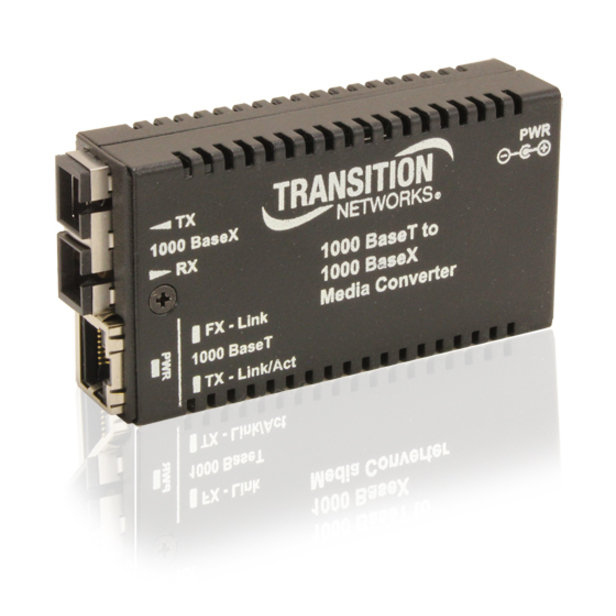

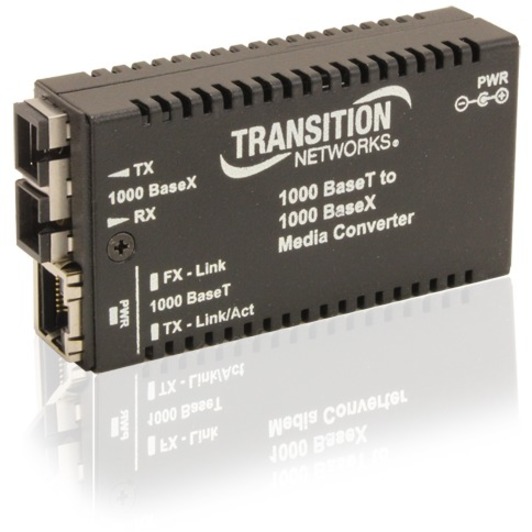

Lantronix M/GE-T-SFP-01-NA — Mini Gigabit Media Converter
$211.19$314.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 1000Base-T to 1000Base-SX/LX media conversion
- 1000 Mbps data rate for Gigabit Ethernet links
- 1 RJ-45 network port and 1 SFP slot
- Auto-Negotiation and Auto-MDI/MDIX support
- Jumbo Frames up to 13312bytes
- Status LEDs for power, fiber link/activity and copper link/activity
- 2.6 Watts power consumption
- Convert copper Gigabit links to fiber using 1000Base-T to 1000Base-X translation
The Lantronix M/GE-T-SFP-01-NA is a Mini Gigabit Ethernet Media Converter for 1000Base-T to 1000Base-SX/LX conversion. It connects a copper Gigabit Ethernet port to an SFP-based fiber link in a compact stand-alone format. The M/GE-T Series supports Auto-Negotiation, Auto-MDI/MDIX, Automatic Link Restoration and Fiber Link Pass Through. Status LEDs show power, fiber link/activity and copper link/activity. Lantronix lists the unit as 65% smaller than a standard media converter. It supports standalone, rack-mountable, DIN rail mountable and wall mountable installation formats, with external AC/DC power required.
Ideal For
- Converting 1000Base-T copper Ethernet to 1000Base-SX/LX fiber links
- Adding SFP-based fiber connectivity to Gigabit Ethernet infrastructure
- Extending network distance with fiber media conversion
- Deploying compact media converters in standalone, rack, DIN rail or wall-mount installations
Specifications
| Depth | 3.3” [85 mm] |
| Width | 1.8” [46 mm] |
| Height | 0.85″ [22 mm] |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3z; IEEE 802.3ab |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps |
| SFP+ Slots | 1 x SFP Slots |
| Unit MTBF | Greater than 250,000 Hours (MIL-HDBK-217F); Greater than 687,500 Hours (Bellcore) |
| Power Input | 7.5VDC to 13.9VDC |
| Jumbo Frames | Up to 13312bytes |
| Network Port | 1 x Network (RJ-45) |
| Power Supply | External AC/DC required; +12VDC, 0.5A |
| Power Consumption | 2.6 Watts |
| Network Technology | 1000Base-T to 1000Base-SX/LX |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Storage Temperature | -15°C to 65°C |
| Safety Certification | UL Listed; CUL Listed (Canada); FCC Class A; CISPR22 / EN55022 Class A; EN55024; CE Mark |
| Operating Temperature | 0°C to 50°C |
| MTBF With Power Supply | Greater than 41,660 Hours (MIL-HDBK-217F); Greater than 114,580 Hours (Bellcore) |
Frequently Asked Questions
What media conversion does the M/GE-T-SFP-01-NA provide?▾
It provides 1000Base-T to 1000Base-SX/LX media conversion for Gigabit Ethernet links.
Does this media converter support SFP modules?▾
Yes. The M/GE-T Series features list includes support for SFP modules.
What data rate does it support?▾
The listed data rate is 1000 Mbps.
How can it be mounted?▾
Lantronix lists standalone, rack-mountable, DIN rail mountable and wall mountable form factors for this model.
