Lantronix N-GXE-POE-LC-01 — N-GXE-POE-xx-01 Series PCIe Gigabit Fiber PoE+ NIC
$302.67$450.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 2-port PCIe NIC with one 1000Base-X fiber network interface port and one switched 10/100/1000Base-T port
- 1000Base-SX 850nm multimode LC port supports 550 m/1804 ft. over 50/125 um fiber and 220 m/722 ft. over 62.5/125 um fiber
- 10/100/1000Base-T PoE+ port supports IEEE 802.3at PoE+ power for a powered device
- Up to 2000 Mbps full-duplex bandwidth capacity with IEEE 802.3z and 1000Base-X compliance
- Traffic switching functions between the copper and fiber ports, even when the PC is in sleep mode
- VLANs and Prioritization configurable at the NIC via Lantronix’ PoE NIC utility software
- Optional low-profile bracket included

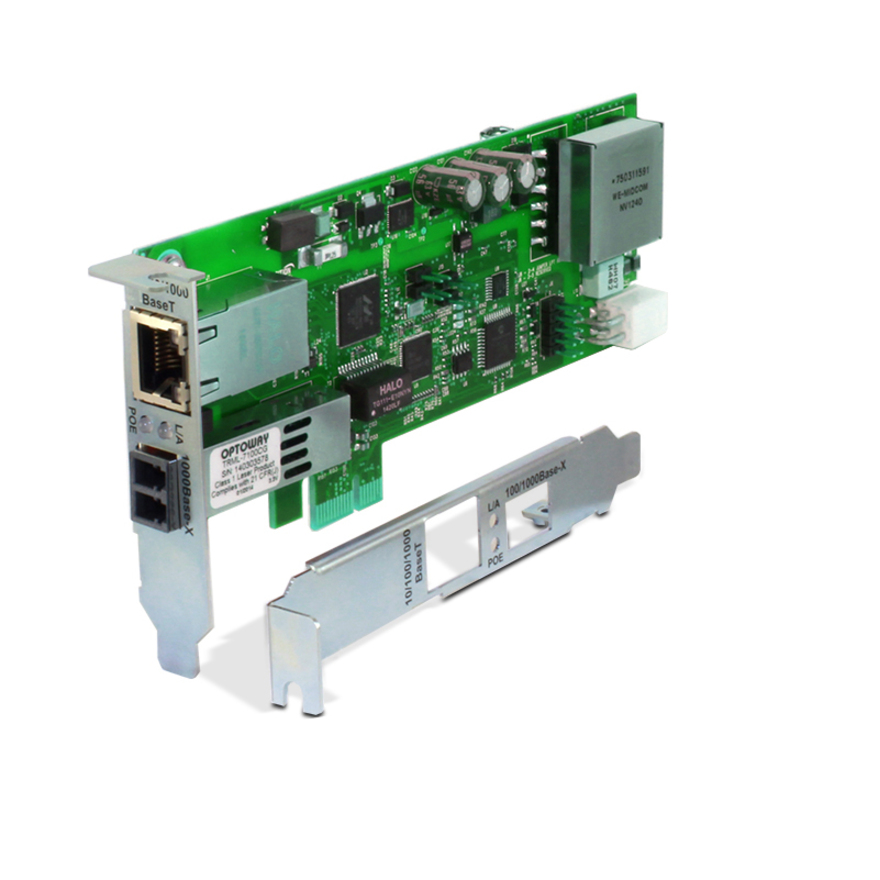

The Lantronix N-GXE-POE-LC-01 is a Fiber Gigabit Ethernet PCIe Network Interface Card in the N-GXE-POE-xx-01 Series. It provides connectivity to a secure fiber network while also delivering power to a PoE powered device through a copper UTP interface. This 2-port NIC combines a fixed 1000Base-SX 850nm multimode LC fiber port with a switched 10/100/1000Base-T PoE+ port. The LC interface supports 550 m/1804 ft. over 50/125 um fiber and 220 m/722 ft. over 62.5/125 um fiber. The NIC is designed to allow a PC to power a VoIP phone, or another traditional copper powered device, over a secure fiber network. It can also provide traffic switching functions between the copper and fiber ports, even when the PC is in sleep mode. When VoIP traffic is filtered and prioritized by third-party devices like an Ethernet switch and the IP phone, this PoE NIC passes tagged traffic. VLANs and Prioritization can also be configured at the NIC via Lantronix’ PoE NIC utility software.
Ideal For
- Connecting a PC to a secure fiber network while powering a VoIP phone from the copper PoE+ port
- Fiber-to-the-desk deployments that need one PCIe NIC for PC connectivity and PoE powered-device connectivity
- Passing tagged VoIP traffic when traffic is filtered and prioritized by third-party devices such as an Ethernet switch and IP phone
- Using a fixed multimode LC fiber interface instead of an open SFP fiber slot
Specifications
| Bus | PCIe x1 bus |
| PoE++ | Mode A Power |
| Depth | 6.5” [165.1 mm] |
| Width | 4.8” [121.9 mm] |
| Height | 0.9” [22.86 mm] |
| Series | N-GXE-POE-xx-01 Series |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Emission | EN55022 Class B, CE, UL Listed |
| Humidity | 5% to 95% (non-condensing) |
| Immunity | EN55024 |
| Standard | IEEE 802.3-2000; IEEE 802.3z; IEEE 802.3x; IEEE 802.1Q; IEEE 802.1P; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at |
| Warranty | Lifetime |
| Fiber Port | 1000Base-SX 850nm multimode LC |
| Port Count | 2 Port(s) |
| Copper Port | 10/100/1000Base-T PoE+ port |
| Fiber Reach | 50/125 um fiber: 550 m/1804 ft; 62.5/125 um fiber: 220 m/722 ft. |
| Link Budget | 8.0 dB |
| Voltage Input | PCIe 3.3V; 12V Peripheral connection for PoE |
| Host Interface | PCIe Rev 2.1 Interface |
| Max Packet Size | Jumbo Frames, 10k bytes |
| Mac Address Table | 8k MAC address table |
| Power Consumption | 1.6 Watts (typical without PoE); 43.6 Watts (typical with PoE) |
| Bandwidth Capacity | Up to 2000 Mbps full-duplex |
| Storage Temperature | -15°C to 65°C |
| Operating Temperature | 0°C to 50°C |
Documentation
Additional pdf1
N-GXE-POE-xx-01 Series Product Brief
Gigabit Power-over-Ethernet NIC Overview (PDF 271.47 KB)
Fiber-to-the-Desk Application Note
N-GXE-POE-xx-01 User Guide Rev F
N-GXE-POE-EPS-KIT Installation Guide (PDF 1.09 MB)
N-GXE-POE-EPS-KIT Quick Start Guide (PDF 288.30 KB)
TN-EPC Utility User Guide Rev B
Frequently Asked Questions
What fiber interface does N-GXE-POE-LC-01 use?▾
It has a fixed 1000Base-SX 850nm multimode LC fiber port with a listed link budget of 8.0 dB.
Does this NIC include a copper PoE+ port?▾
Yes. The NIC includes a 10/100/1000Base-T PoE+ port supporting IEEE 802.3at PoE+ power.
Which operating systems are listed for driver support?▾
The listed driver support includes Windows 7, Windows 8, 8.1, Windows 10, Windows Server 2008, Windows Server 2012, Vista and Linux.
Is a low-profile bracket included?▾
Yes. The N-GXE-POE-LC-01 part row states that it includes an optional low-profile bracket.
