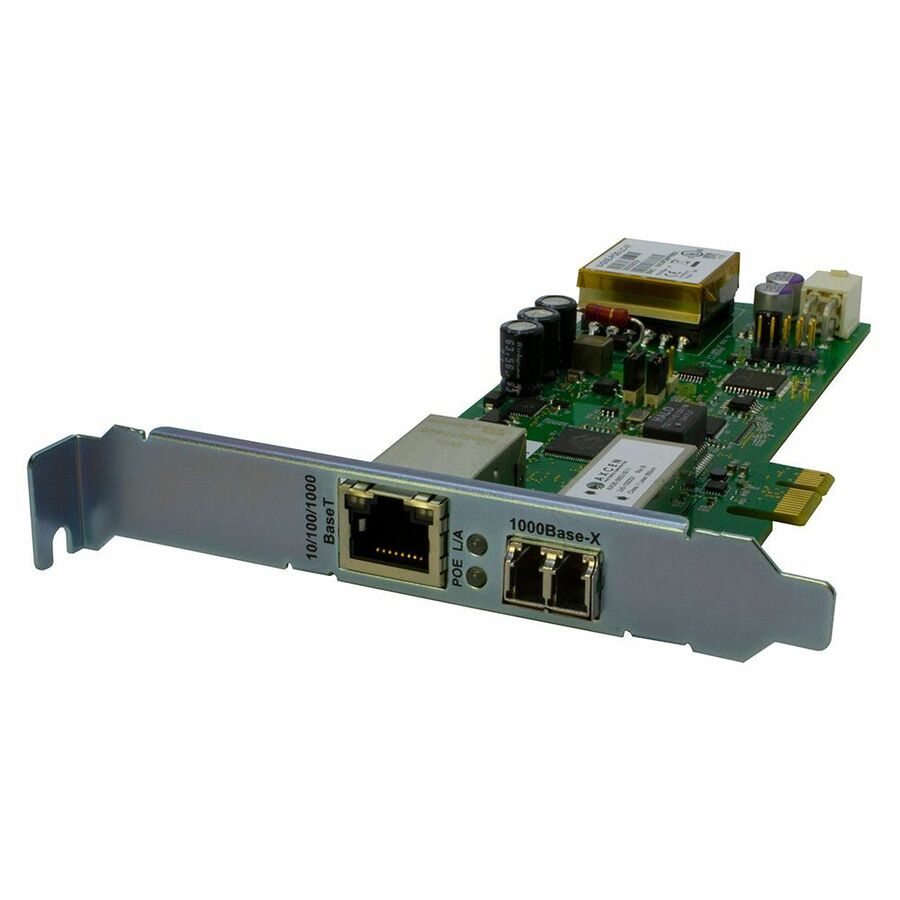

Lantronix N-GXE-POE-SFP-01 — N-GXE-POE-xx-01 Series PCIe Gigabit Ethernet PoE+ NIC
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Key Features
- 100/1000Base-X open SFP fiber slot for fiber network connectivity
- 10/100/1000Base-T PoE+ port supporting IEEE 802.3at PoE+ power
- 2 port NIC with one fiber network interface port and one switched copper port
- Up to 2000 Mbps full-duplex bandwidth capacity
- PCIe x1 bus support with PCIe Rev 2.1 interface compliance
- Traffic switching between copper and fiber ports, even when the PC is in sleep mode
- Optional low-profile bracket included
Ideal For
- Connect a PC to a secure fiber network while using a copper PoE+ interface for a powered device
- Power a VoIP phone from the PC NIC over the 10/100/1000Base-T PoE+ port
- Pass tagged VoIP traffic when filtering and prioritization are handled by third-party devices like an Ethernet switch and IP phone
- Combine PC connectivity and VoIP phone connectivity into one desktop device
Specifications
| PoE++ | Mode A Power |
| Ports | 2 |
| Series | N-GXE-POE-xx-01 Series |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Emission | EN55022 Class B, CE, UL Listed |
| Humidity | 5% to 95% (non-condensing) |
| Immunity | EN55024 |
| Standard | IEEE 802.3-2000; IEEE 802.3z; IEEE 802.3x; IEEE 802.1Q; IEEE 802.1P; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at |
| Warranty | Lifetime |
| Dimensions | 4.8” [121.9 mm] x 6.5” [165.1 mm] x 0.9” [22.86 mm] |
| Fiber Port | 100/1000Base-X Open SFP fiber slot |
| Copper Port | 10/100/1000Base-T PoE+ port |
| Mac Address | 8k MAC address table |
| Voltage Input | PCIe 3.3V; 12V Peripheral connection for PoE |
| Host Interface | PCI Express 2.1 x1 |
| Max Packet Size | Jumbo Frames, 10k bytes |
| Bandwidth Capacity | Up to 2000 Mbps full-duplex |
| Storage Temperature | -15°C to 65°C |
| Operating Temperature | 0°C to 50°C |
| Power Consumption With PoE++ | 43.6 Watts (typical with PoE) |
| Power Consumption Without PoE++ | 1.6 Watts (typical without PoE) |
Documentation
Additional pdf1
N-GXE-POE-xx-01 Series Product Brief
Gigabit Power-over-Ethernet NIC Overview (PDF 271.47 KB)
Fiber-to-the-Desk Application Note
N-GXE-POE-xx-01 User Guide Rev F
N-GXE-POE-EPS-KIT Installation Guide (PDF 1.09 MB)
N-GXE-POE-EPS-KIT Quick Start Guide (PDF 288.30 KB)
TN-EPC Utility User Guide Rev B
Frequently Asked Questions
What ports does N-GXE-POE-SFP-01 provide?▾
It provides a 100/1000Base-X open SFP fiber slot and a switched 10/100/1000Base-T PoE+ port.
Does the copper port support PoE+?▾
Yes. The copper port supports IEEE 802.3at PoE+ power for a PoE powered device, such as a VoIP phone.
What operating systems are listed for driver support?▾
Driver support is listed for Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2008, Windows Server 2012, Vista and Linux.
Can VLANs and prioritization be configured at the NIC?▾
Yes. VLANs and Prioritization can be configured at the NIC via Lantronix PoE NIC utility software.
