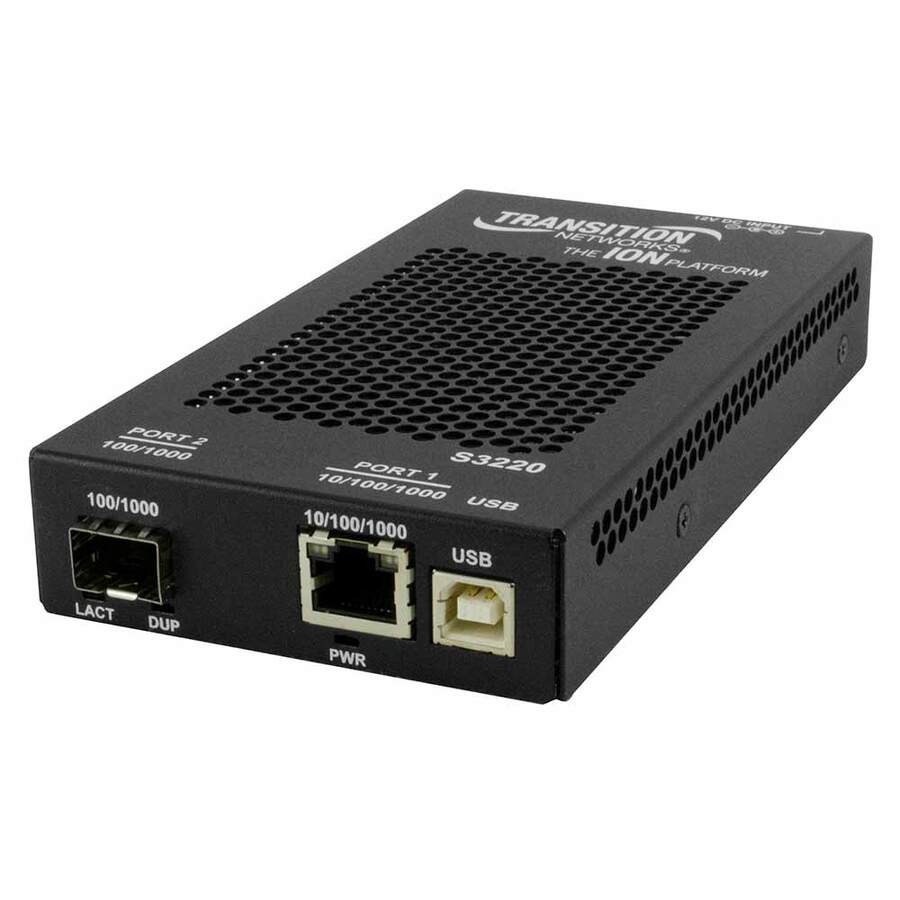

Lantronix S3220-1014 — 1000Base-LX Single-Mode SC Nid
Call for Price
Ships from and sold by A5 IT
Call for pricing
This part is quoted to order. Call for current pricing, lead time and volume breaks on the Lantronix S3220-1014.
224-312-2244Key Features
- 10/100/1000Base-T copper to 1000Base-LX fiber conversion with RJ-45 and single-mode SC interfaces
- 10 km/6.2 mi. fiber reach with 1000Base-LX 1310nm single mode optics
- 10.5 dB link budget for the S3220-1014 part-table configuration
- OAM/IP-Based Management for a stand-alone Gigabit Ethernet remotely managed NID
- IEEE 802.3ah Link OAM with Transparent Link Pass Through, Far-End-Fault (FEF), and Remote Loopback
- 10K Jumbo Frame Support with IEEE 802.1Q VLAN, double VLAN tagging with 4096 VIDs, and IEEE 802.1p QoS packet classification
- MEF 9, 14 and 21 certified S3220 Series platform
Ideal For
- Integrating 10/100/1000 copper environments with 1000Base-LX single-mode fiber cabling
- Managing Gigabit Ethernet links with OAM/IP-Based Management
- In-band remote management over fiber when linked to a C3220 card in a managed ION chassis
- Mobile backhaul applications using VLAN, QoS, jumbo frame support, and bandwidth allocation
Specifications
| Series | S3220 Series |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Standards | IEEE 802.3; IEEE 802.3ah; IEEE 802.1p; IEEE 802.1Q |
| Dimensions | 3.25” [82 mm] x 6.5” [165 mm] x 1″ [25 mm] |
| Link Budget | 10.5 dB |
| Power Input | 100-240 VAC,1A |
| Power Output | 12 VDC, 1.25A |
| Certifications | EN55022 Class A, EN55024, UL60950, CE Mark |
| Max Frame Size | 10,240 bytes |
| Fiber Data Rate | 1000 Mbps |
| Fiber Interface | 1000Base-LX 1310nm single mode (SC) [10 km/6.2 mi.] |
| Copper Data Rate | 10/100/1000 Mbps |
| Copper Interface | 10/100/1000Base-T (RJ-45) [100 m] |
| Mef Certifications | MEF 9, 14 and 21 certified |
| Filtering Addresses | 8K MAC Addresses |
| Storage Temperature | -25° to +85°C |
| Operating Temperature | 0°C to +50°C |
Frequently Asked Questions
What copper and fiber interfaces does S3220-1014 support?▾
S3220-1014 converts 10/100/1000Base-T (RJ-45) [100 m] to 1000Base-LX 1310nm single mode (SC) [10 km/6.2 mi.] with a 10.5 dB link budget.
How is the S3220 managed remotely?▾
The S3220 can be managed individually via an IP address, or managed in-band over the fiber when linked to a C3220 card installed in a managed ION chassis.
Which management features are listed for the S3220 Series?▾
The S3220 Series includes IEEE 802.3ah Link OAM, IP-Based Remote Management, In-Band management, SSH, Telnet, Command Line Interface (CLI), Web management, SNMP v1, v2c, and v3, and Focal Point Management.
What environment ratings are listed for S3220-1014?▾
For this SKU, the listed operating temperature is 0°C to +50°C, storage is -25° to +85°C, humidity is 5% to 95% (non-condensing), and altitude is 0 – 10,000 ft.
