Lantronix S3220 Series Managed Gigabit Ethernet NIDs
The S3220 Series is a stand-alone, remotely managed Network Interface Device that converts Gigabit copper to fiber at the customer edge, with IEEE 802.3ah Link OAM for carrier Ethernet and mobile backhaul links.
Overview
About the Lantronix S3220 Series
The S3220 (Lantronix ION S3220) is more than a media converter. It marks the demarcation point between a provider's fiber and the customer's 10/100/1000 copper equipment, and lets the operator see and test that link remotely. It can be managed on its own IP address or in-band over the fiber from a C3220 card in a managed ION chassis, so a remote unit needs no separate management connection.
Carrier features include MEF 9, 14 and 21 certification, IEEE 802.3ah Link OAM, remote loopback, Far-End-Fault and transparent link pass through. Traffic handling covers 802.1Q VLANs and double tagging with 4096 VIDs, 802.1p, DiffServ and IPv6 traffic class QoS, bandwidth profiling, and frames up to 10,240 bytes. DMI optical management reports SFP diagnostics, and copper ports have cable diagnostics.
Management is via web, CLI over Telnet or SSH, SNMP v1/v2c/v3, Lantronix Focal Point and a USB port for initial setup, with RADIUS, management VLAN and SNTP. The 82 x 165 x 25 mm unit runs from an external 100-240 VAC adapter at 0°C to +50°C, and the S3221-1040-T extends that to -40°C to +65°C.
Key capabilities
- In-band remote management
- Paired with a C3220 card in a managed ION chassis, the remote S3220 is managed over the fiber itself, without a separate management connection at the customer site.
- MEF certified carrier Ethernet
- MEF 9, 14 and 21 certification, 802.3ah Link OAM and remote loopback support standards-based business Ethernet and backhaul service delivery.
- Q-in-Q and bandwidth profiles
- Double VLAN tagging with 4096 VIDs, 802.1p and DiffServ classification and bandwidth profiling enforce provider service definitions at the edge.
- Dual SFP option

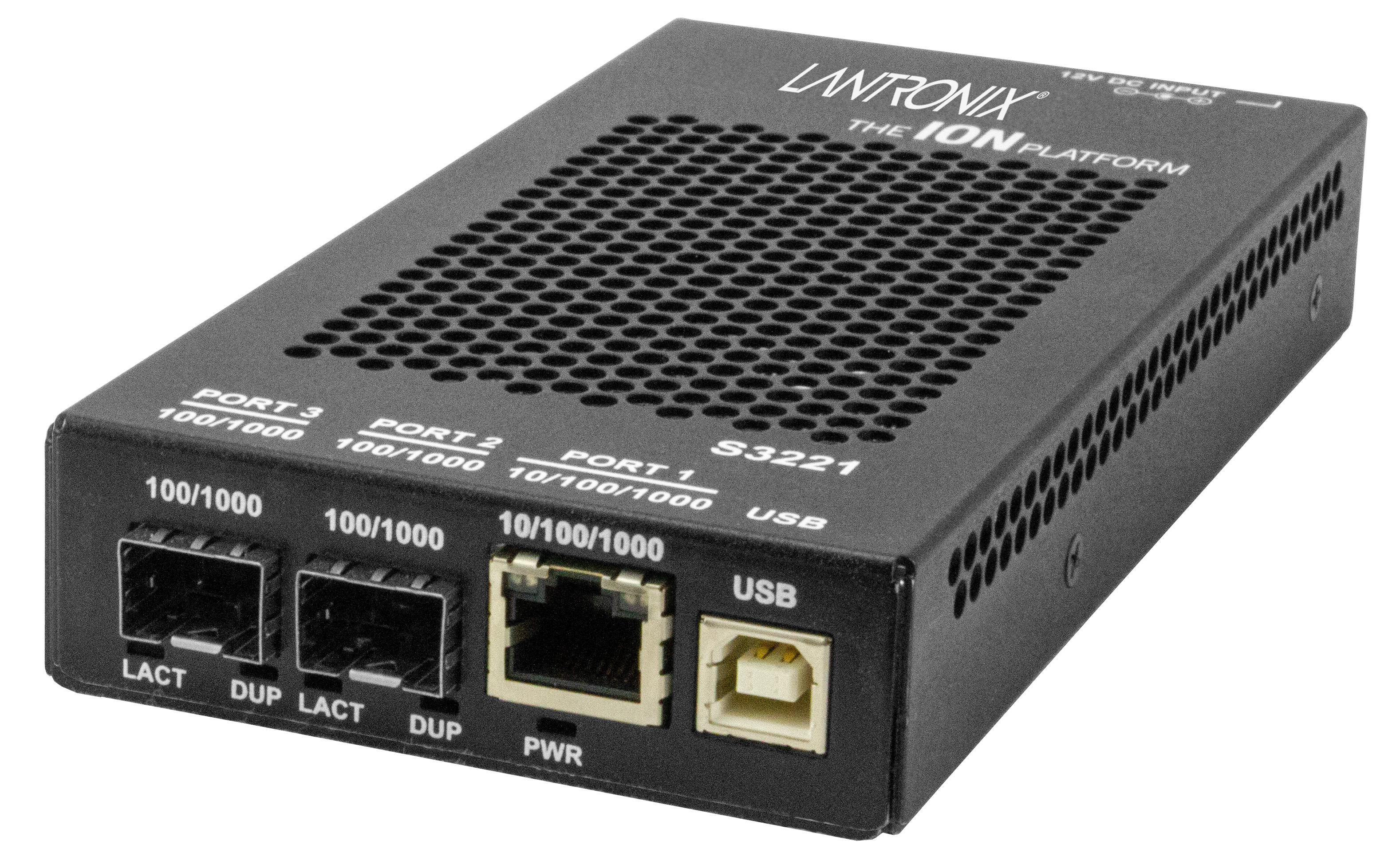

- The S3221 models offer two open 100/1000Base-X SFP slots alongside the RJ-45 port for redundant or daisy-chained fiber connections.
- Extended temperature model

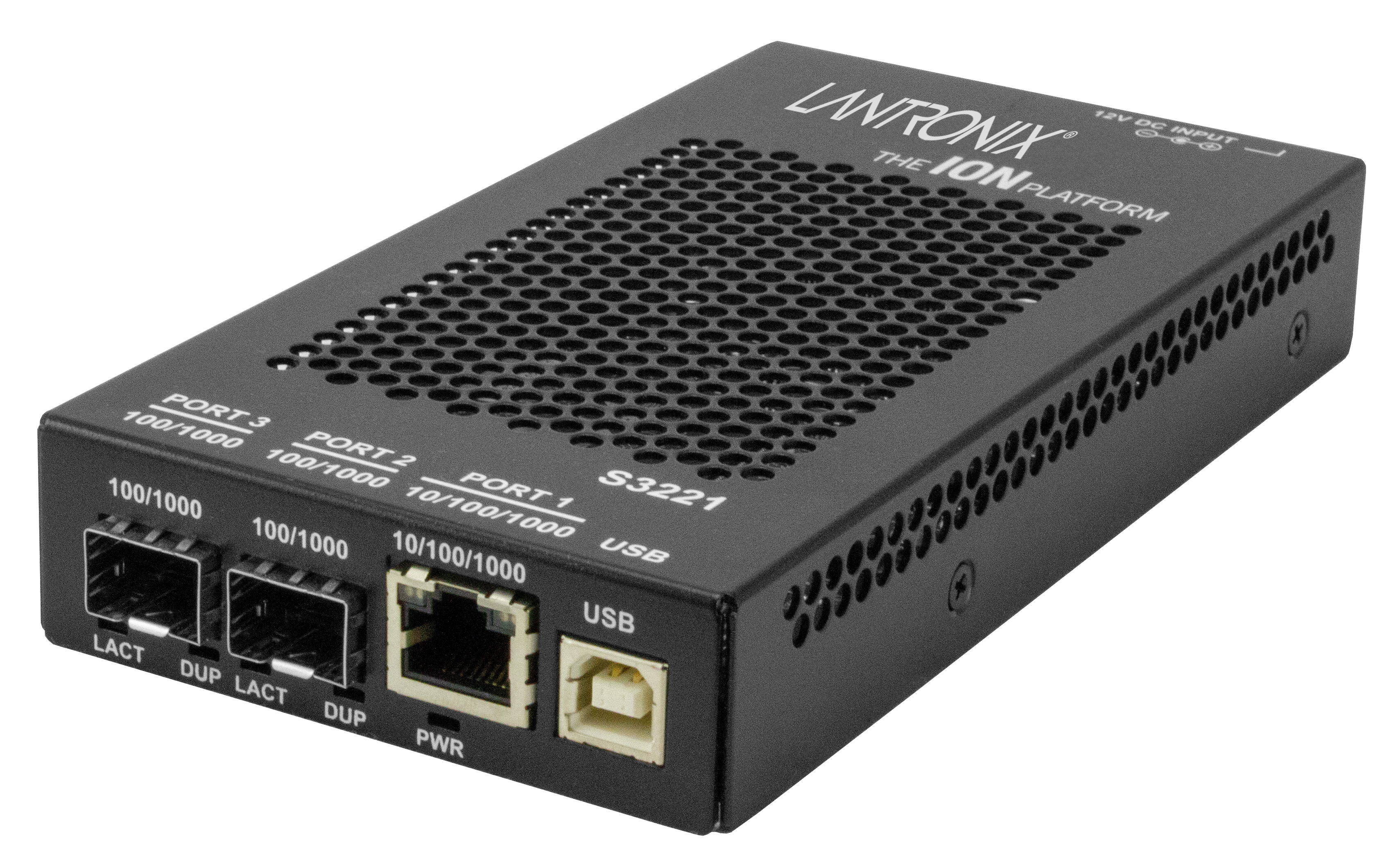

- The S3221-1040-T dual-SFP model operates from -40°C to +65°C and stores from -40°C to +85°C, for outdoor cabinets and unconditioned telecom enclosures.
How to choose the right S3220 Series part number

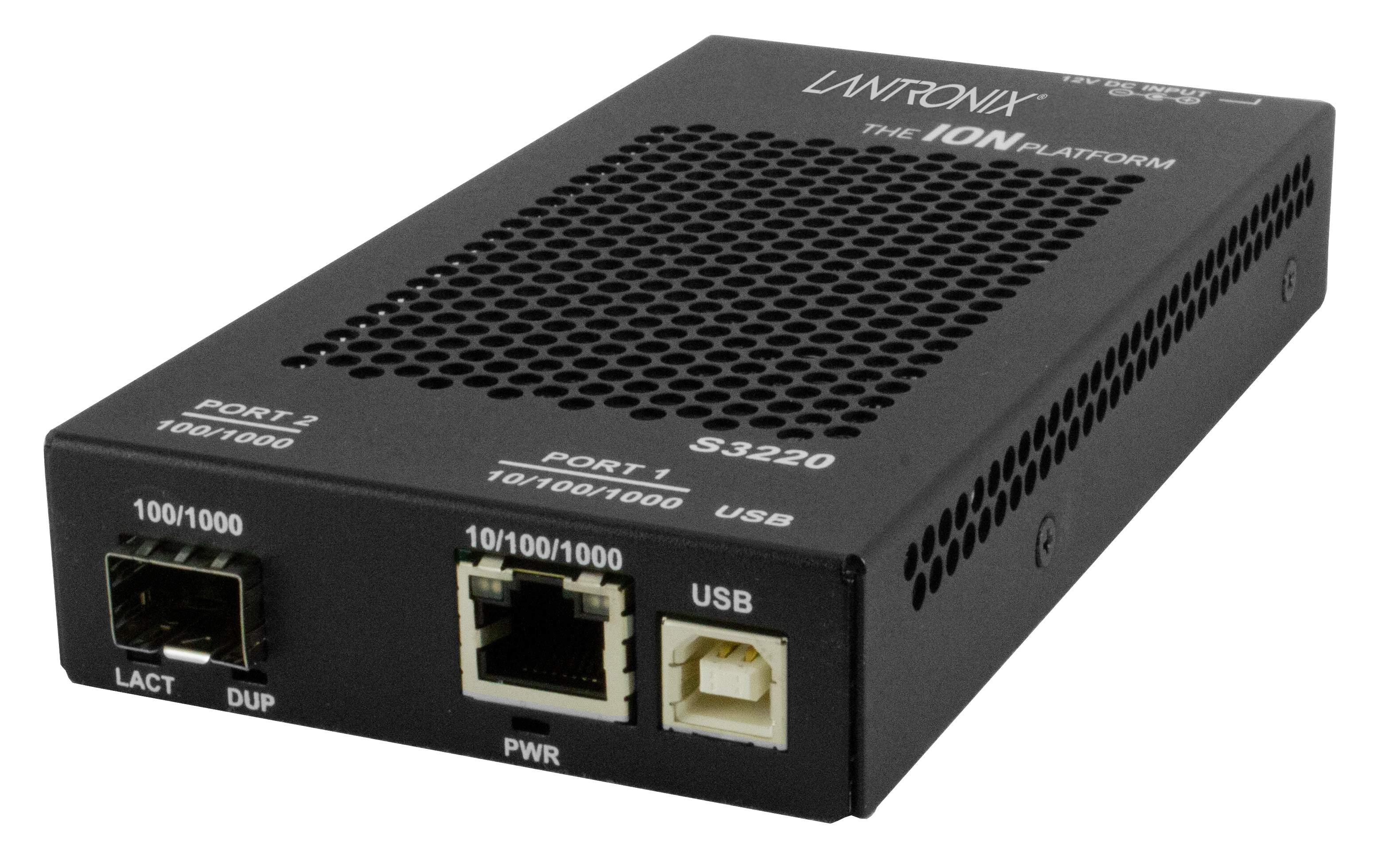

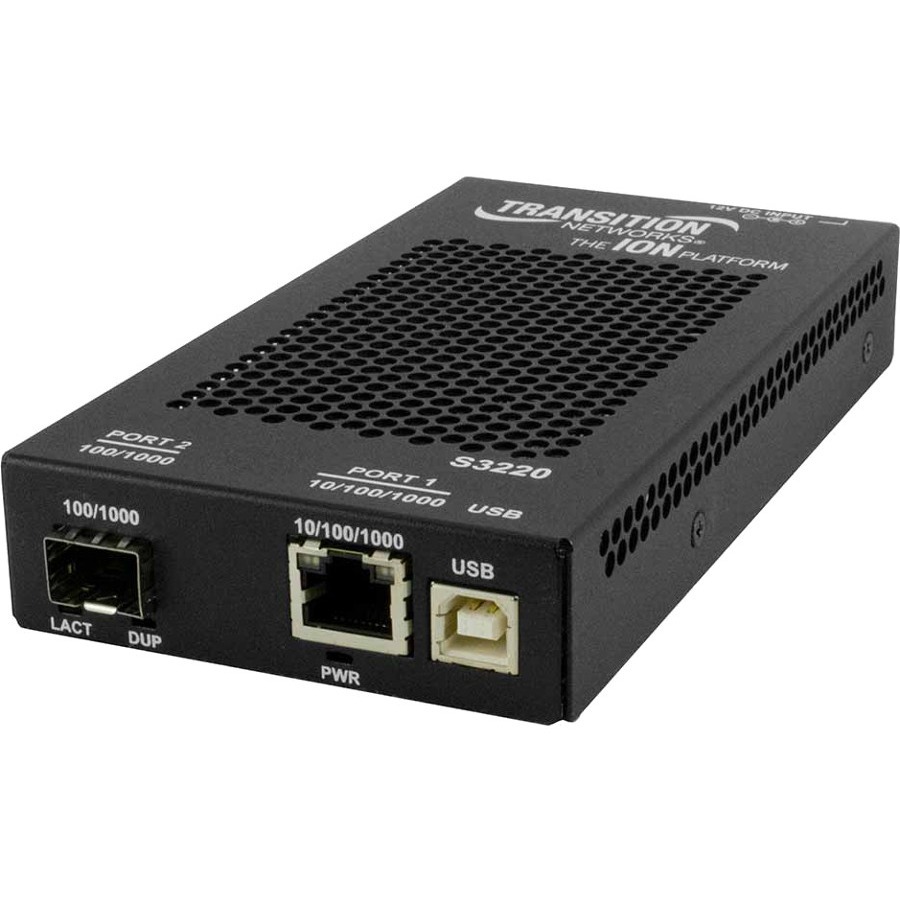

All models have one 10/100/1000Base-T RJ-45 port. S3220-1014 has fixed 1000Base-LX 1310 nm single-mode optics on SC connectors for 10 km links with a 10.5 dB budget. S3220-1040 has one open 100/1000Base-X SFP slot, so distance and fiber type follow the SFP you install. S3221-1040 has two open SFP slots. S3221-1040-T is the same dual-SFP unit rated -40°C to +65°C. Mount with WMBL wall brackets, the WMBD DIN-rail bracket or the RMS19-SA4-02 4-slot rack shelf.
Configure & order
Find your S3220 Series part number
Every orderable S3220 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the S3220 Series, organized by what it does — mounting & enclosures, chassis & shelves— each with why you'd add it.
Mounting & enclosures
1 item
WMBL
WMBL
4″ [102 mm] wall-mount bracket kit for stand-alone converters size 4.8″ [122 mm] and 6.5″ [165 mm]. It is listed as a compatible accessory for the E-100BTX Series.
$16.00
2 in stock
Chassis & shelves
2 items
WMBD
WMBD
5″ [127 mm] DIN Rail Mount Bracket for all Stand-Alone Converters and 1- or 2-Slot ION Chassis.
$11.00
Ships on backorder
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
$177.00
3 in stock
Compatibility taken from the Lantronix part-number tables for the S3220 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the S3220 Series is used
- Carrier Ethernet demarcation at business customer premises
- Mobile backhaul handoff at cell sites
- Remote fiber link testing with Link OAM loopback
- Hardened outdoor cabinets using the -T model
S3220 Series datasheets & documentation
- Product BriefPDF
- ION Media Conversion PlatformPDF
- C2220, S2220, C3220, S3220 Series User Guide Rev KPDF
- Fiber-to-the-Desk Application NotePDF
- C2220, S2220, C3220, S3220, C3230, S3230 Series Installation Guide Rev DPDF
- C2220, S2220, C3220, S3220 Series CLI Reference Guide Rev HPDF
- CLI initial Set-up Procedure (PDF 802.33 KB)PDF
- Configure VLAN 100 with Provider S-Tag (PDF 1.40 MB)PDF
S3220 Series FAQ
What is the difference between the S3220 and S3230?
Both are stand-alone managed Gigabit NIDs with 802.3ah Link OAM and MEF 9, 14 and 21 certification. The S3230 adds IEEE 802.1ag Service OAM and ITU Y.1731 performance monitoring for SLA assurance, and pairs with the C3230 card instead of the C3220.
How is the S3220 managed remotely?
Two modes are selectable: IP-based management on its own IP address, or in-band management over the fiber from a C3220 card installed in a managed ION chassis. Web, CLI, SSH, Telnet, SNMP v1/v2c/v3 and Focal Point are supported.
Which S3220 model works in extreme temperatures?
The S3221-1040-T, a dual-SFP model, operates from -40°C to +65°C and stores from -40°C to +85°C. The other S3220 models operate from 0°C to +50°C and store from -25°C to +85°C.
What fiber distance does the S3220-1014 reach?
The S3220-1014 uses 1000Base-LX 1310 nm single-mode optics with SC connectors and reaches 10 km (6.2 miles) with a 10.5 dB link budget. SFP-slot models reach whatever distance the installed SFP supports.
Does the S3220 support VLAN double tagging?
Yes. It supports IEEE 802.1Q VLANs and double VLAN tagging (Q-in-Q) with 4096 VIDs, plus management VLAN. Lantronix publishes guides for configuring provider S-tags, C-tags and T-tags.
