Lantronix SGPAT1039-105-FNA — PoE+ Media Converter
$647.00
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T to 1000Base-SX media conversion connects copper Ethernet to fiber cabling
- IEEE 802.3at PoE+ PSE injects PoE power through the copper RJ-45 port
- 30 Watts of power supports the twisted pair port
- LC multi-mode fiber port supports the 1000Base-SX fiber interface on this SKU
- Active Link Pass Through detects loss of Receive signals on either fiber or copper port
- Wall mount, DIN Rail, or table top installation supports multiple placement options
- External AC/DC power supply is included
- Extend Ethernet connectivity through copper-to-fiber conversion

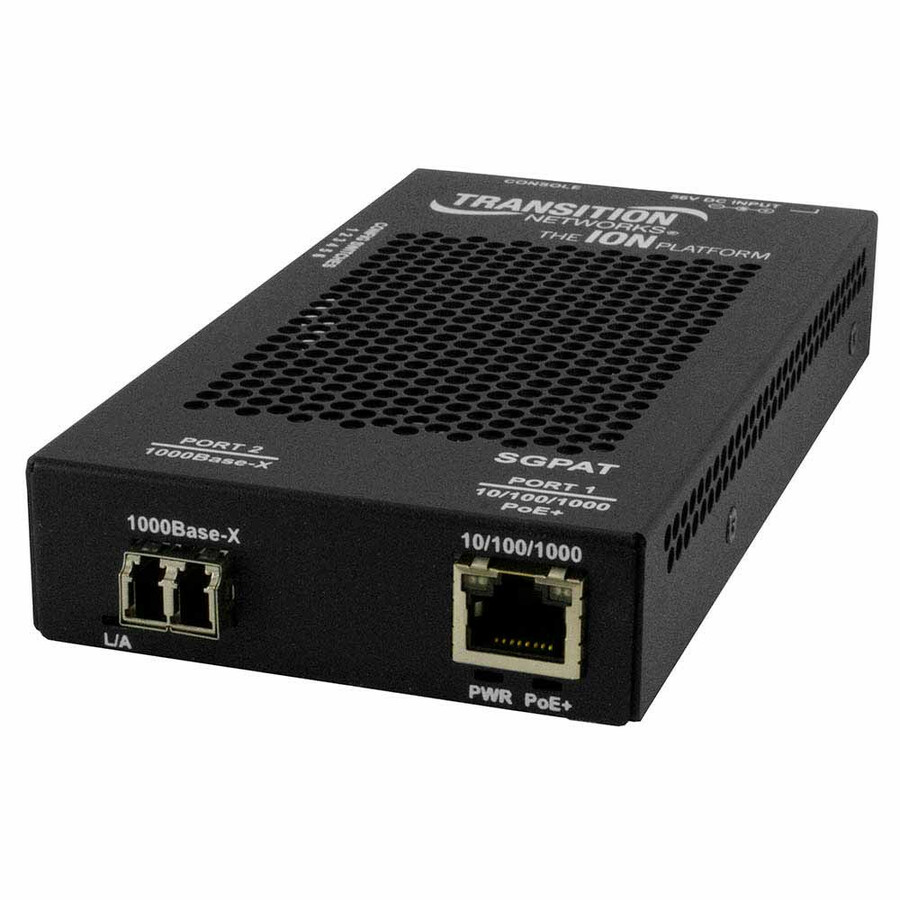

Lantronix SGPAT1039-105-FNA is an SGPAT Series stand-alone Gigabit Ethernet PoE+ media converter. It converts 10/100/1000Base-T copper to 1000Base-SX multi-mode fiber through an LC port and injects PoE power through the copper RJ-45 port. As a Power Sourcing Equipment device, the converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device over twisted pair cabling while complying with IEEE 802.3af PoE and IEEE 802.3at PoE+. Active Link Pass Through detects loss of Receive signals on either fiber or copper port and propagates the failure to end devices. During a Link Pass Through event, Auto Power Reset resets power to the end PD device. Installation options include wall mount, DIN Rail, or table top. An external AC/DC power supply is included.
Ideal For
- Connecting 10/100/1000Base-T PoE+ copper equipment to 1000Base-SX multi-mode LC fiber
- Fiber-to-the-desk deployments that need PoE power through the copper RJ-45 port
- Installations that require wall mount, DIN Rail, or table top placement
- Links where Active Link Pass Through and Remote Fault Detection are needed to propagate link failures
Specifications
| Weight | 2 lbs. [0.9 kg] |
| Altitude | 0 – 10,000 ft. (with de-rating) |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| PoE++ Port | 1x PoE+ (RJ-45) Ports |
| PoE++ Power | 30 Watts |
| Dimensions | 3.25” [82 mm] x 4.8″ [122 mm] x 1” [25 mm] |
| Fiber Port | 1 x LC Ports |
| Form Factor | Standalone |
| Installation | Wall mount, DIN Rail, or table top |
| Network Port | 1 x Network (RJ-45) |
| PoE++ Standard | IEEE 802.3af PoE |
| Power Source | External AC/DC 56VDC power adapter |
| Certification | EN55022 Class A; EN55024; CE Mark |
| PoE++ Standard | IEEE 802.3at PoE+ |
| Max Packet Size | 10,000 bytes |
| Media Conversion | 10/100/1000Base-T to 1000Base-SX |
| Transceiver Type | Media Converter |
| Max Mac Addresses | 8k |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Fiber Mode Supported | Multi-mode |
| Power Supply Listing | UL listed |
| Shared Buffer Memory | 1Mbit |
| Operating Temperature | 0°C to +45°C |
| Fiber Optic Cable Core Cladding Specification | 62.5/125 µm; 50/125 µm |
Frequently Asked Questions
Does this media converter support PoE+?▾
Yes. The SGPAT Series is a Power Sourcing Equipment device and complies with IEEE 802.3af PoE and IEEE 802.3at PoE+. It supports 30 Watts of power to the twisted pair port.
What ports are on SGPAT1039-105-FNA?▾
This SKU has one RJ-45 PoE+ copper port and one LC fiber port for 1000Base-SX multi-mode fiber.
How can this converter be mounted?▾
It can be installed by wall mount, DIN Rail, or table top placement.
Does it pass link failures through to connected devices?▾
Yes. The SGPAT Series supports Active Link Pass Through (ALPT) and Remote Fault Detection. ALPT detects loss of Receive signals on either fiber or copper port and propagates the failure to end devices.
