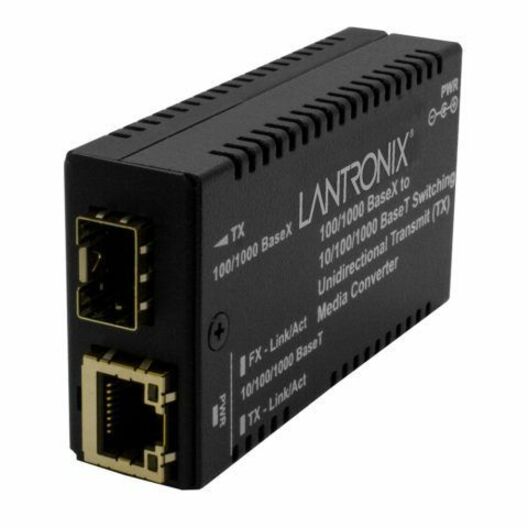

Lantronix M/GE-ISW-SFP-01-PD-UTX — M/GE-UxX Series Media Converter
$365.78$545.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T (RJ-45) to unidirectional 100/1000Base-X Open SFP Slot transmitting conversion
- Unidirectional data transmission over fiber to, or from, secure networks
- Simplex communication over one strand of fiber cable
- Transmit-only SFP operation uses the TX port on a duplex SFP while the RX port is deactivated
- PoE powered operation via IEEE 802.3af over TP RJ-45
- Auto-Negotiation on the 10/100/1000 copper port and Auto-MDI/MDIX configuration
- Unit and port LEDs for power, fiber link/activity and copper link/activity status
- Unidirectional data transmissions over fiber to, or from, secure networks
The M/GE-UxX Series adds unidirectional technology to a copper-to-fiber media converter. This SKU converts 10/100/1000Base-T RJ-45 Ethernet to a unidirectional 100/1000Base-X Open SFP Slot and transmits over fiber. Lantronix describes unidirectional devices as useful in secure environments such as government agencies and military networks, where information must move only to, or from, the appropriate network. The device creates a physically secure one-way communication channel over fiber between secure and unsecure networks. Applications require this transmit-only converter to be paired with a receive-only converter. The transmitting converter uses the TX port on a duplex SFP, while the RX port is deactivated. This -PD version is powered via IEEE 802.3af over TP RJ-45 and is listed in the M/GE-ISW-SFP-01-xx-UxX environment group for -40°C to 75°C operation.
Ideal For
- Sending data from a classified, high-security area to a low-security area while preventing unsecure data from reentering the classified network
- Updating a secure network with data from an external source while ensuring critical data is unable to leave the classified area
- Connecting fiber optic cabling to copper-based networking equipment
- Supporting secure environments such as government agencies and military networks with different security classifications
Specifications
| MTBF | Greater than 41,680 hours (MIL‐HDBK‐217F); Greater than 114,580 hours (Bellcore7 V5.0) |
| Depth | 3.3” [85 mm] |
| Width | 1.8″ [46 mm] |
| Height | 0.85” [22 mm] |
| Weight | 2 lbs. [0.9 kg] |
| Altitude | 0 to 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Direction | Transmitting Converter |
| Power LED | On = Power |
| SFP+ Slots | 1 x SFP Slots |
| Standards | IEEE 802.3; IEEE 802.3z; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af (for PD Versions Only) |
| Fiber Port | 100/1000Base-X Open SFP Slot |
| Copper Port | 10/100/1000Base-T (RJ-45) |
| Power Input | IEEE 802.3af via TP RJ-45 (-PD Versions) |
| Certifications | Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada); FCC Class A, CISPR22 / EN55022 Class A, EN55034, CE Mark |
| Converter Type | PoE Powered Hardened Mini 10/100/1000Base-T (RJ-45) to Unidirectional 100/1000Base-X Open SFP Slot Transmitting Converter |
| Power Consumption | 1.8 watts without the SFP module |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to 75°C |
| Fiber Link Activity LED | On = Link, Flashing = Activity |
| Copper Link Activity LED | On = Link, Flashing = Activity |
Frequently Asked Questions
Does this SKU transmit or receive?▾
It is the UTX transmitting converter. Applications require a transmit-only converter to be paired with a receive-only converter.
Does simplex communication require two fiber strands?▾
No. The series states that simplex communications only requires one strand of fiber cable.
How is this PD version powered?▾
PD versions use IEEE 802.3af via TP RJ-45.
What environment range is listed for the hardened ISW versions?▾
The M/GE-ISW-SFP-01-xx-UxX environment listing states Operating: -40°C to 75°C, Storage: -40°C to 85°C, Humidity: 5% to 95% (non-condensing), and Altitude: 0 to 10,000 ft.
