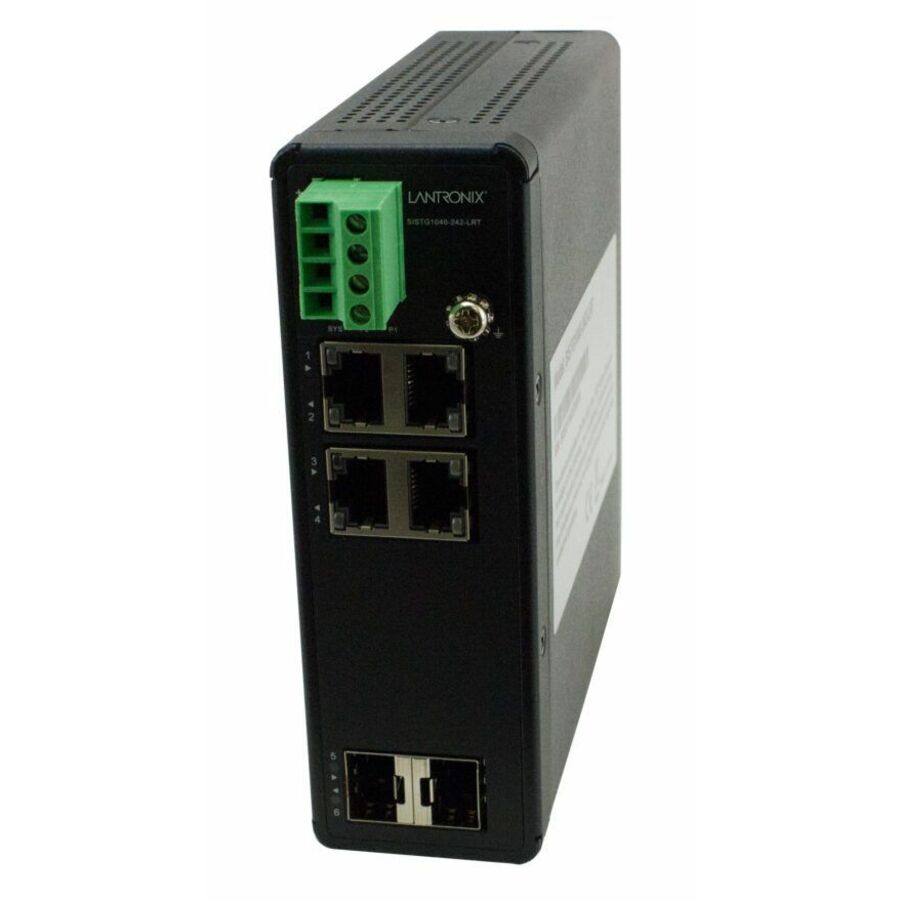

Lantronix SISTG1040-242-LRT — Hardened Gigabit Switch 4 RJ-45, 2 SFP
$333.90
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 4 10/100/1000Base-T RJ-45 ports [100 m/328 ft.]
- 2 100/1000Base-X SFP slots
- 12 Gbps switching capacity
- Jumbo Frame support up to 9K bytes
- Layer 2 wire-speed switching engine
- -40°C to +75°C operating temperature range
- Dual Power input with redundant input and reverse power protection
The Lantronix SISTG1040-242-LRT is an unmanaged full Gigabit Ethernet hardened switch with (4) 10/100/1000Base-T ports and (2) 100/1000Base-X SFP slots. It provides Gigabit Ethernet connections at the edge of a hardened network, including hazardous locations. The two fiber uplink ports can be used in a daisy chain for maximum network reliability. Redundant input power connections support safe reliable operation in temperatures between -40°C and +75°C. The switch includes a ruggedized metal closure, fan-less design, IP30 ingress protection, and Din Rail and Wall Mount options. The part row states that a Din Rail Bracket is included.
Ideal For
- Edge Gigabit Ethernet connections in hazardous locations
- Factory floor hardened network switching
- Outdoor enclosure network switching
- Fiber-uplink daisy chain connections using the two 100/1000Base-X SFP slots
Specifications
| Emi | CE, FCC Part 15 |
| Safety | IEC62368-1/EN62368-1 |
| Weight | 0.79 lbs. [0.36 kg] |
| Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN Rail and Wall Mount options |
| Warranty | 5 Years |
| Protocols | CSMA/CD |
| SFP+ Slots | (2) 100/1000Base-X SFP slots |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE802.3ae; IEEE 802.3x; IEEE 802.1p; IEEE 802.3az |
| Dimensions | 1.7” [44 mm] x 5.1″ [130 mm] x 5.3” [135 mm] |
| Management | Unmanaged |
| Technology | Store-and-forward switching architecture |
| Power Input | +12 to +48VDC or -12 to -48VDC; Redundant input; reverse power protection |
| Status Leds | System, Power1, Power2, Port Status |
| Copper Ports | (4) 10/100/1000Base-T RJ-45 ports |
| Reset Button | Reset the switch |
| Certifications | UL Class 1 / Div 2 |
| Included Bracket | DIN Rail Bracket included |
| Mac Address Table | 4K MAC address table |
| Power Consumption | 4.4 Watts |
| Ingress Protection | IP30 |
| Switching Capacity | 12 Gbps |
| Jumbo Frame Support | Up to 9K bytes |
| Operating Temperature | -40°C to +75°C |
Frequently Asked Questions
Is the SISTG1040-242-LRT managed or unmanaged?▾
No. The SISTG1040-242-LRT is an unmanaged full Gigabit Ethernet hardened switch.
What network ports are on this switch?▾
It has (4) 10/100/1000Base-T RJ-45 ports and (2) 100/1000Base-X SFP slots.
What temperature range does it support?▾
The operating temperature range is -40°C to +75°C.
What mounting options are supported?▾
Lantronix lists Din Rail and Wall Mount options, and the part row states that a Din Rail Bracket is included.
