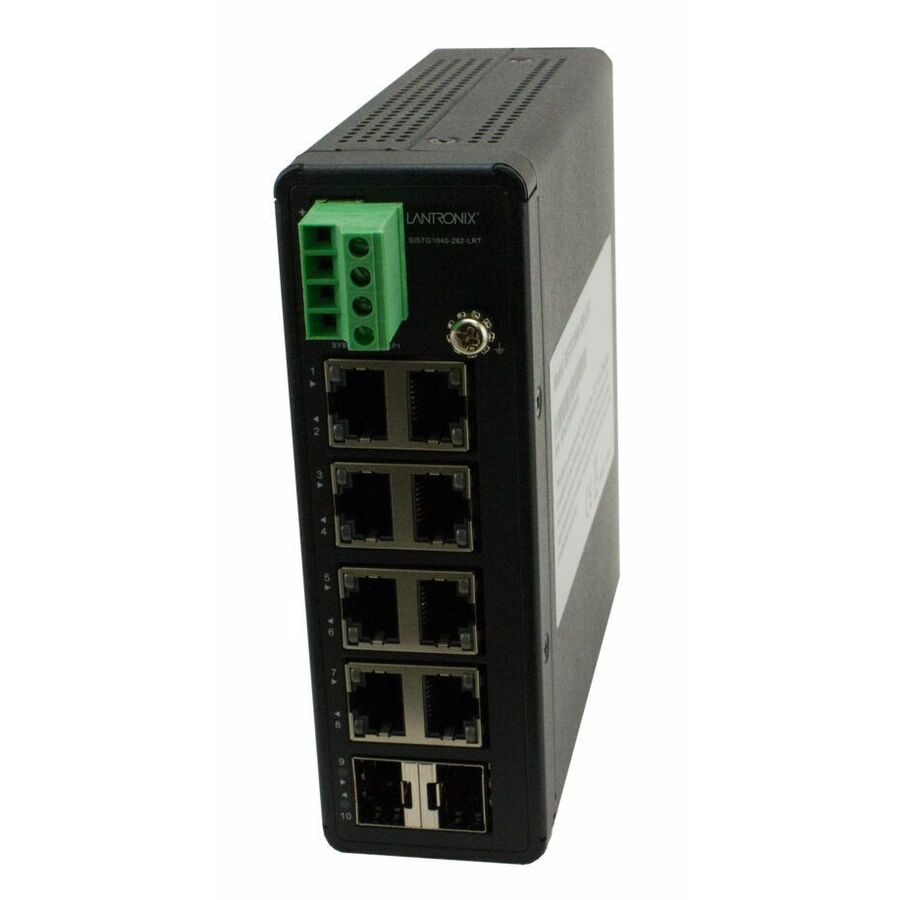

Lantronix SISTG1040-282-LRT — Hardened Gigabit Ethernet Switch
$281.79$418.70
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 8 10/100/1000Base-T RJ-45 ports for Gigabit Ethernet copper connections up to 100 m/328 ft
- 2 100/1000Base-X SFP slots for fiber uplinks or daisy-chain use
- 20 Gbps switching capacity with a Layer 2 wire-speed switching engine
- -40°C to +75°C operating temperature range for hardened network environments
- Dual Power input with redundant input and reverse power protection
- DIN Rail Bracket included, with DIN Rail and Wall Mount options
The Lantronix SISTG1040-282-LRT is an unmanaged full Gigabit Ethernet hardened switch with (8) 10/100/1000Base-T RJ-45 ports and (2) 100/1000Base-X SFP slots. It provides Gigabit Ethernet connections at the edge of a hardened network, including hazardous locations. The two fiber uplink ports can be used in a daisy chain for network reliability. The switch uses a store-and-forward switching architecture and provides 20 Gbps switching capacity. SISTG1040-282-LRT supports redundant input power connections and operates from -40°C to +75°C. It is certified for harsh environments such as factory floors, outdoor enclosures and other hazardous environments.
Ideal For
- Edge Gigabit Ethernet connections in hardened networks
- Hazardous locations that require UL Class 1 / Div 2 certification
- Factory floors, outdoor enclosures and other harsh environments
- Fiber uplink daisy-chain deployments using the two SFP slots
Specifications
| Safety | IEC62368-1/EN62368-1 |
| Weight | 0.86 lbs. [0.39 kg] |
| Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN Rail and Wall Mount options |
| Warranty | 5 Years |
| Protocols | CSMA/CD |
| SFP+ Slots | (2) 100/1000Base-X SFP slots |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ae; IEEE 802.3x; IEEE 802.1p; IEEE 802.3az |
| Dimensions | 1.7” [44 mm] x 5.1″ [130 mm] x 5.3” [135 mm] |
| Technology | Store-and-forward switching architecture |
| Mac Address | 4K MAC address table |
| Power Input | +12 to +48VDC or -12 to -48VDC; Redundant input; reverse power protection |
| RJ-45 Ports | (8) 10/100/1000Base-T RJ-45 ports |
| Status Leds | System, Power1, Power2, Port Status |
| Reset Button | Reset the switch |
| Certifications | UL Class 1 / Div 2; EMI: CE, FCC Part 15 |
| Power Consumption | 5.8 Watts |
| Ingress Protection | IP30 |
| Switching Capacity | 20 Gbps |
| Operating Temperature | -40°C to +75°C |
Frequently Asked Questions
What ports are on the SISTG1040-282-LRT?▾
It has (8) 10/100/1000Base-T RJ-45 ports and (2) 100/1000Base-X SFP slots.
Is a DIN rail bracket included?▾
Yes. The Lantronix part-table row states that a Din Rail Bracket is included, and the product features list Din Rail and Wall Mount options.
What operating temperature range does this switch support?▾
The operating temperature range is -40°C to +75°C.
Is the SISTG1040-282-LRT managed or unmanaged?▾
It is an unmanaged full Gigabit Ethernet hardened switch.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SISTG1040-282-LRT-L1Y1
$37.69 - 3-year technical support
SISTG1040-282-LRT-L1Y3
$109.91 - 5-year technical support
SISTG1040-282-LRT-L1Y5
$177.95 - 1-year extended warranty & technical support
SISTG1040-282-LRT-L2Y1
$54.44 - 3-year extended warranty & technical support
SISTG1040-282-LRT-L2Y3
$157.02 - 5-year extended warranty & technical support
SISTG1040-282-LRT-L2Y5
$251.22
