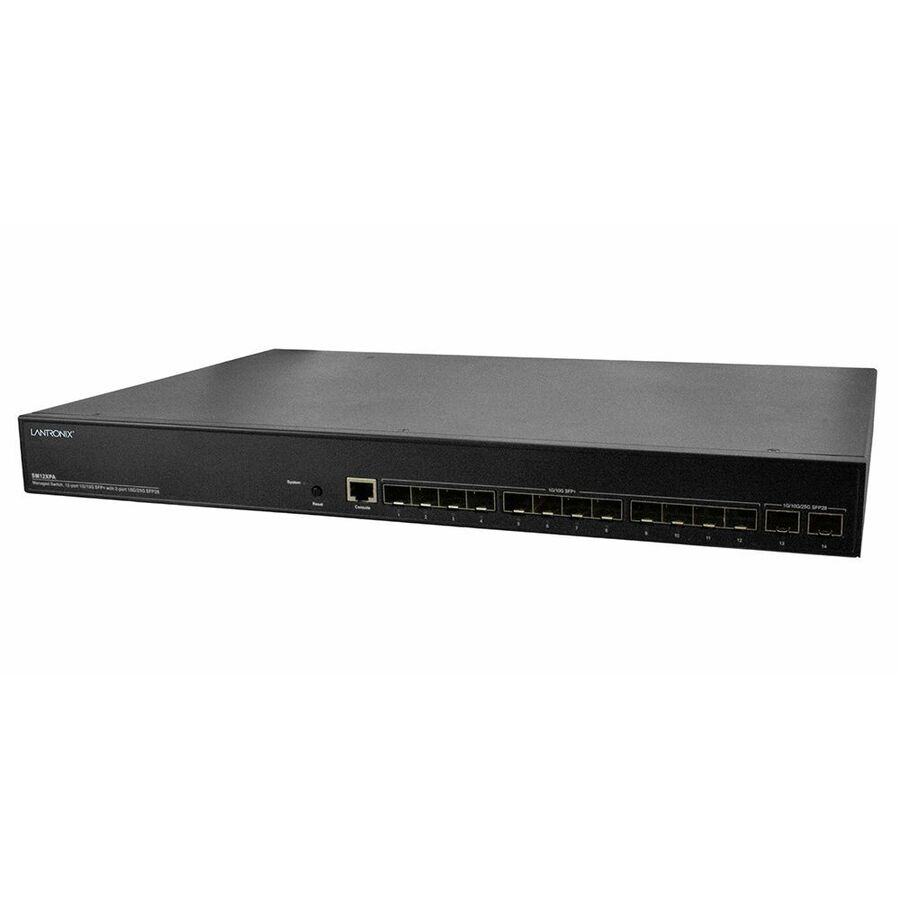

Lantronix SM12XPA-JP — Managed Fiber Switch 12 SFP+ + 2 SFP28
$1,921.42$2,854.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Multi-gigabit fiber aggregation with (12) 1G/10G SFP+ slots and (2) 1G/10G/25G SFP28 slots
- Console access through (1) RJ-45 Console port
- Layer 2 switching with Spanning Tree (STP), Rapid Spanning Tree (RSTP), Multiple Spanning Tree (MSTP) and Link Aggregation Control Protocol (LACP)
- Basic Layer 3 routing with IPv4/IPv6 Static Routing, RIP v1/v2 and OSPF v2
- VLAN segmentation with support for up to 4K VLANs
- Security controls with SSH v1 and v2, SSL, RADIUS, TACACS+, IP Source Guard, Port Security, Storm Control and DHCP Snooping
- Japan deployment with included Japan power cord
SM12XPA-JP is the Japan power-cord configuration of the Lantronix SM12XPA managed fiber switch. It provides (12) 1G/10G SFP+ slots, (2) 1G/10G/25G SFP28 slots and (1) RJ-45 Console port. The SM12XPA Fiber Aggregation Switch is a managed Layer 3 (L3) Multi-Gigabit Ethernet fiber switch offering Layer 2 and basic Layer 3 features. Listed functions include STP, RSTP, MSTP, LACP, DHCP Relay, IGMP Snooping, MLD Snooping, IPv4/IPv6 Static Routing, RIP v1/v2 and OSPF v2. It supports VLANs up to 4K VLANs, jumbo frames up to 10K bytes and Quality of Service with 8 hardware queues. Security features listed for the platform include SSH v1 and v2, SSL, RADIUS, TACACS+, IP Source Guard, Port Security, Storm Control and DHCP Snooping.
Ideal For
- Aggregating 1G/10G SFP+ fiber connections in a managed switch
- Adding 1G/10G/25G SFP28 connectivity to a fiber switch deployment
- Segmenting networks with port based VLAN, IEEE 802.1Q tag-based VLAN, MAC-based VLAN and related VLAN features
- Routing with IPv4/IPv6 Static Routing, RIP v1/v2 or OSPF v2
Specifications
| Depth | 11.8" |
| Height | 1.7" |
| Manageable | Yes |
| QoS Queues | 8 hardware queues |
| SFP+ Slots | (12) 1G/10G SFP+ slots |
| Jumbo Frame | Up to 10K bytes |
| Sfp28 Slots | (2) 1G/10G/25G SFP28 slots |
| Console Port | (1) RJ-45 Console port |
| Switch Layer | Layer 3 |
| VLAN Support | Up to 4K VLANs |
| Input Voltage | 120 V AC; 230 V AC |
| Product Group | Switch |
| Limited Warranty | Lifetime |
| Ethernet Technology | 25 Gigabit Ethernet |
| Included Power Cord | Japan power cord |
| Optional Power Supply | Secondary hot-swappable AC power supply available (optional) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Frequently Asked Questions
What ports and slots are included on SM12XPA-JP?▾
SM12XPA-JP includes (12) 1G/10G SFP+ slots, (2) 1G/10G/25G SFP28 slots and (1) RJ-45 Console port.
Does SM12XPA-JP include a power cord?▾
Yes. This SKU includes a Japan power cord.
Is SM12XPA-JP manageable?▾
Yes. The input identifies SM12XPA-JP as a manageable switch and as a managed Layer 3 fiber switch.
What Layer 3 routing features are listed?▾
Listed routing features include IPv4/IPv6 Static Routing, RIP v1/v2 and OSPF v2.
