Lantronix SFP+ Modules and SFP+/SFP28 Host Switches
This family groups the Lantronix switches that host SFP+ and SFP28 optics, from the 14-slot SM12XPA fiber aggregation switch to PoE switches with 10G SFP+ uplinks, along with their power supplies and mounting kit.
From $1,835.00
Overview
About the Lantronix SFP+ Modules
Lantronix's SFP+ Modules page (listed by Lantronix as SFP+Modules) is organized around the hardware that takes the optics rather than the modules themselves. It lists three switch platforms with 10G SFP+ slots, one of which also adds 25G SFP28, plus the power supplies and bracket that complete them. Use it to pick the host switch first, then size the SFP, SFP+ or SFP28 transceivers to the slot speeds and fiber runs on each model.

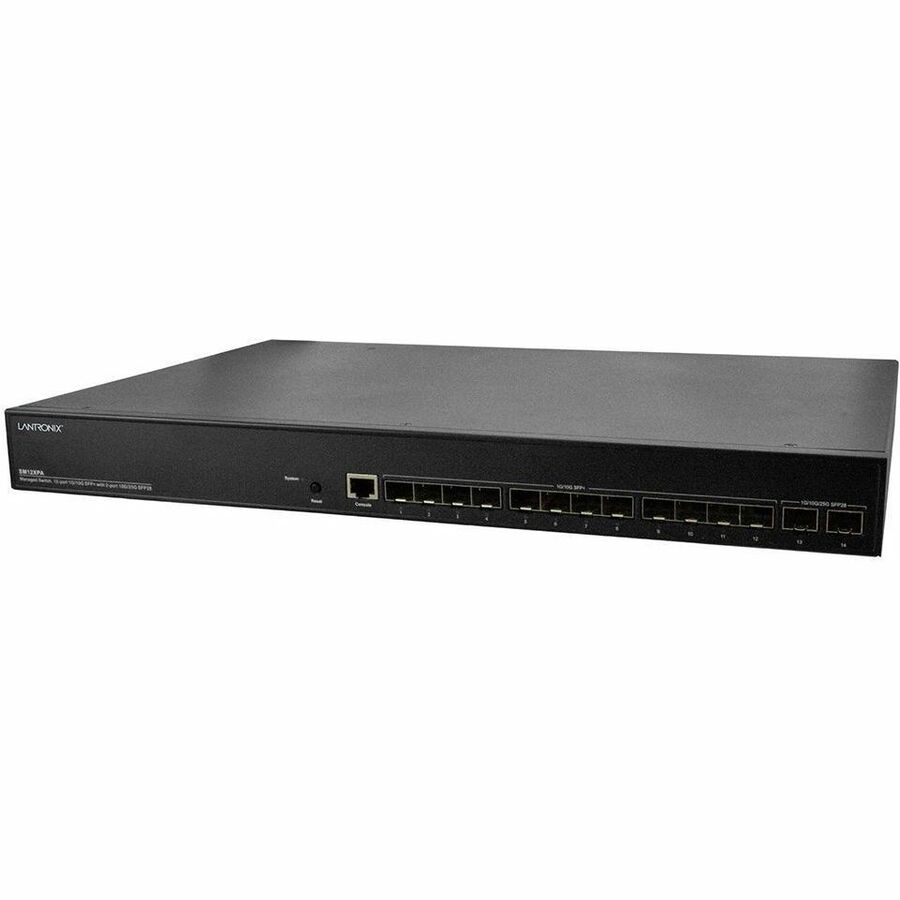

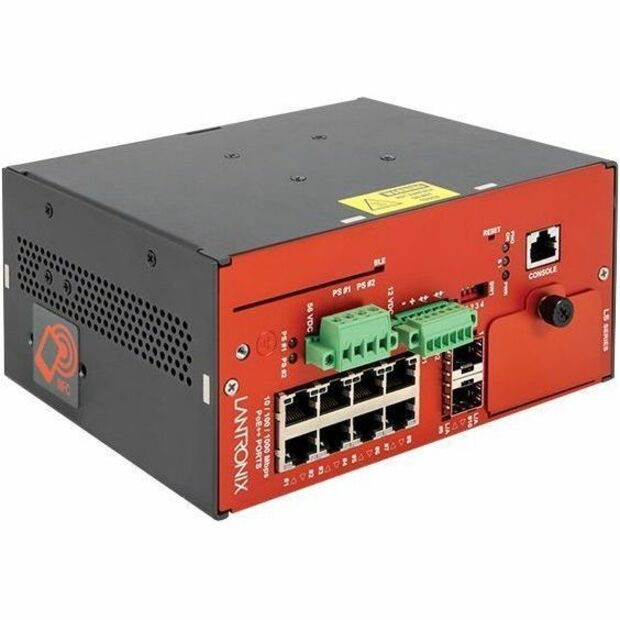

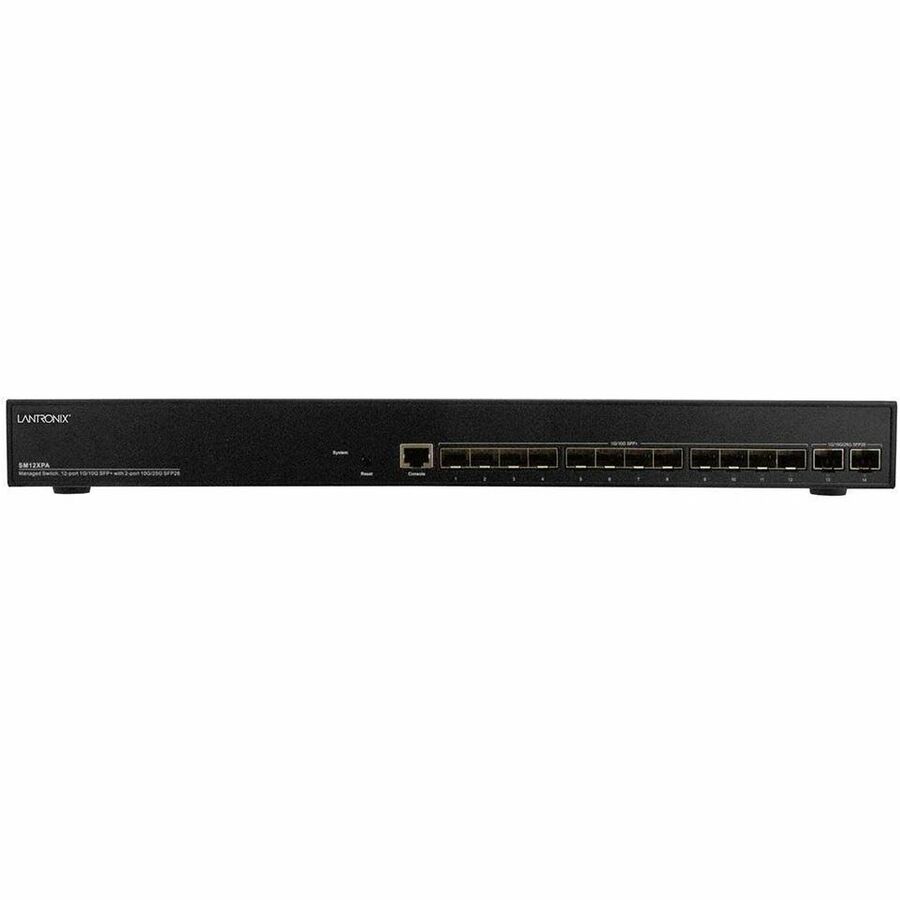

The SM12XPA is all fiber: twelve 1G/10G SFP+ slots and two 1G/10G/25G SFP28 slots, with an RJ-45 console port and no copper data ports. It accepts an optional secondary 250 W power supply with 100-240 VAC input. The LSS2200-8P combines eight 10/100/1000Base-T IEEE 802.3bt PoE ports with two multi-gig SFP+ slots that run at 10G, 5G, 2.5G or 1G. The SISPM1040-3000-L3 PoE+ switches pair copper access ports with both 100/1000Base-X SFP and 1G/10GBase-X SFP+ slots.
Power options differ by platform. The SISPM1040 models accept 52-57 VDC or 100-250 VAC. The LSS2200-8P is listed with two external supplies: the 25172 (960 W, 48-57 VDC output) and the 25160 (480 W, 48-55 VDC output), both accepting AC or DC input, plus the WMB-LSS wall mount bracket kit.
Key capabilities
- 25G SFP28 aggregation
- The SM12XPA combines twelve 1G/10G SFP+ slots with two 1G/10G/25G SFP28 slots for collecting fiber uplinks into a faster core link.
- Multi-gig SFP+ uplinks
- The LSS2200-8P's two SFP+ slots run at 10G, 5G, 2.5G or 1G, alongside eight IEEE 802.3bt PoE copper ports.
- Mixed SFP and SFP+ slots

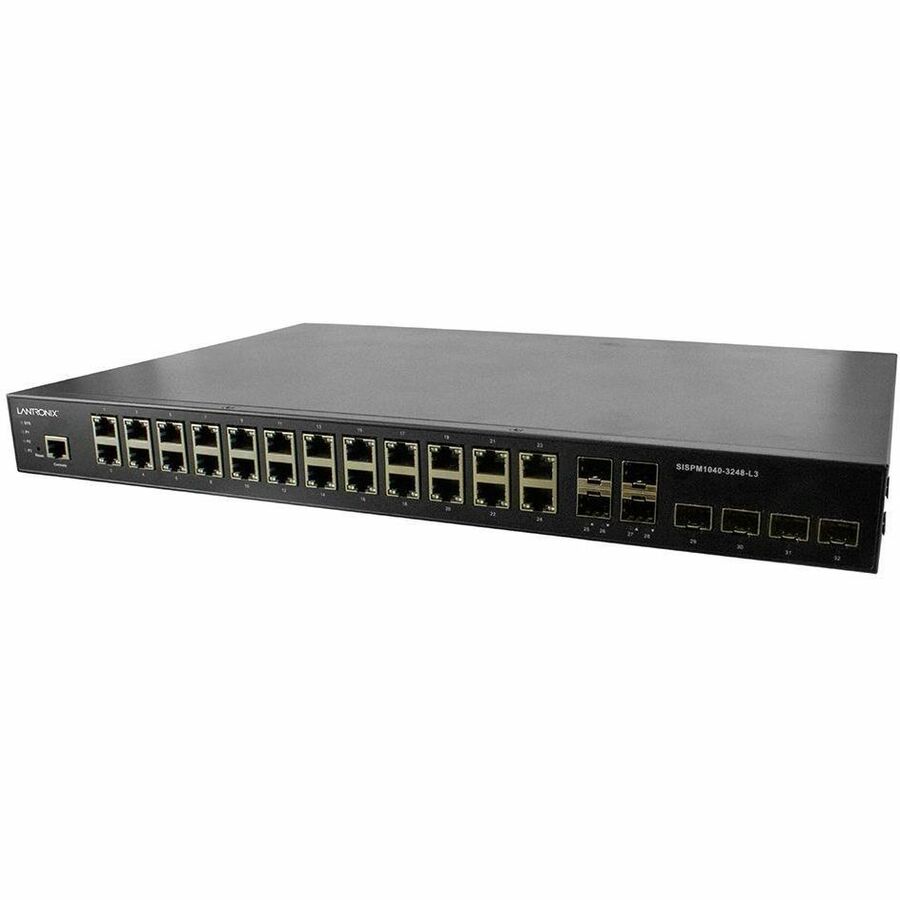

- SISPM1040-3248-L3 models carry four 100/1000Base-X SFP slots plus four 1G/10GBase-X SFP+ slots, so legacy 1G and 10G fiber can share one switch.
- Redundant power for SM12XPA
- An optional secondary 250 W power supply with 100-240 VAC input, the PS-AC-250 series, is offered in eight regional power-cord versions.
- LSS2200-8P power supplies
- The 25172 delivers 48-57 VDC at 20 A and the 25160 delivers 48-55 VDC at 10 A, both from wide-range AC or DC input.
How to choose the right SFP+ Modules part number
Start with the host switch. SM12XPA-NA is the all-fiber 12 SFP+ plus 2 SFP28 switch; PS-AC-250-NA is its optional second supply. LSS2200-8P is the 8-port 802.3bt switch with two multi-gig SFP+ slots, powered by the 25172 or 25160 supply. SISPM1040-3248-L3 has 24 PoE+ ports, 4 SFP and 4 SFP+ slots; SISPM1040-3166-L3 has 16 PoE+ ports, 4 SFP and 2 SFP+. The suffix sets the power cord (NA, LA, EU, UK, SA, JP, OZ, BR). Note that -SA means South America on SM12XPA but South Africa on SISPM1040.
Configure & order
Find your SFP+ Modules part number
Every orderable SFP+ Modules configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SM12XPA-NA
$2,854.50
Ships on backorder
SM12XPA-LA
$2,854.50
Ships on backorder
SM12XPA-EU
$2,854.50
Ships on backorder
SM12XPA-UK
$2,854.50
Ships on backorder
SM12XPA-SA
$2,854.50
Ships on backorder
SM12XPA-JP
$2,854.50
Ships on backorder
SM12XPA-OZ
$2,854.50
Ships on backorder
SM12XPA-BR
$2,854.50
Ships on backorder
LSS2200-8P
$1,835.00
Ships on backorder
SISPM1040-3248-L3-NA
$2,496.00
Ships on backorder
SISPM1040-3248-L3-LA
$2,496.00
Ships on backorder
SISPM1040-3248-L3-EU
$2,496.00
Ships on backorder
SISPM1040-3248-L3-UK
$2,496.00
Ships on backorder
SISPM1040-3248-L3-SA
$2,496.00
Ships on backorder
SISPM1040-3248-L3-JP
$2,496.00
Ships on backorder
SISPM1040-3248-L3-OZ
$2,496.00
Ships on backorder
SISPM1040-3248-L3-BR
$2,496.00
Ships on backorder
SISPM1040-3166-L3-NA
$2,008.40
Ships on backorder
SISPM1040-3166-L3-LA
$2,008.40
Ships on backorder
SISPM1040-3166-L3-EU
$2,008.40
Ships on backorder
SISPM1040-3166-L3-UK
$2,008.40
Ships on backorder
SISPM1040-3166-L3-SA
$2,008.40
Ships on backorder
SISPM1040-3166-L3-JP
$2,008.40
Ships on backorder
SISPM1040-3166-L3-OZ
$2,008.40
Ships on backorder
SISPM1040-3166-L3-BR
$2,840.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SFP+ Modules, organized by what it does — power, mounting & enclosures— each with why you'd add it.
Power
10 items
25160
25160
Hardened DIN rail mounted power supply with 90-264 VAC or 127-370 VDC input and 48 ~ 55 VDC, 10A, 480 Watts output.
$517.00
3 in stock
SM12XPA
PS-AC-250-NA
PS-AC-250-NA is an optional secondary 250W AC power supply for the Lantronix SM12XPA. It supports 100-240VAC input and includes a North America power cord.
$545.00
Ships on backorder
SM12XPA
PS-AC-250-LA
Optional secondary 250W Power Supply for the SM12XPA. It accepts 100-240VAC input and includes a Latin America power cord.
$545.00
Ships on backorder
SM12XPA
PS-AC-250-EU
Optional secondary 250W power supply for the Lantronix SM12XPA switch. It supports 100-240VAC input and includes a European power cord.
$545.00
Ships on backorder
SM12XPA
PS-AC-250-UK
Optional secondary 250W AC power supply for the SM12XPA. It includes a United Kingdom power cord and supports 100-240VAC input.
$545.00
Ships on backorder
SM12XPA
PS-AC-250-SA
Optional secondary 250W power supply for the SM12XPA. It includes a South America AC power cord and supports 100-240VAC input.
$545.00
Ships on backorder
SM12XPA
PS-AC-250-JP
Optional secondary 250W power supply for the SM12XPA. It supports 100-240VAC input and includes a Japan power cord.
$545.00
Ships on backorder
SM12XPA
PS-AC-250-OZ
Optional secondary 250W power supply for the Lantronix SM12XPA. It supports 100-240VAC input and includes an Australia power cord.
$545.00
Ships on backorder
SM12XPA
PS-AC-250-BR
Optional secondary 250W AC power supply for the SM12XPA. It includes a Brazil power cord and supports 100-240VAC input.
$545.00
Ships on backorder
25172
25172
960 Watts DIN RAIL power supply for Lantronix Gigabit Ethernet PoE++ Switches LS Series. It accepts 85-277VAC or 80-370VDC input and provides 48 ~ 57VDC output at 20A.
$1,655.00
Ships on backorder
Mounting & enclosures
1 itemWMB-LSS
WMB-LSS
Wall Mount Bracket Kit listed in the Accessories group for the ls-series. It is categorized under Network Infrastructure Switch Accessories.
$25.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the SFP+ Modules. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SFP+ Modules is used
- Aggregating 10G fiber uplinks into 25G links to the core
- Powering 802.3bt cameras and access points with 10G uplinks
- Wiring-closet PoE+ access with mixed 1G and 10G fiber
- Planning SFP+ and SFP28 optics for an existing Lantronix switch
SFP+ Modules FAQ
Which Lantronix switches have SFP28 slots?
On this page, only the SM12XPA. It has two 1G/10G/25G SFP28 slots next to twelve 1G/10G SFP+ slots and an RJ-45 console port. The LSS2200-8P and SISPM1040-3000-L3 switches top out at 10G SFP+ uplinks.
What speeds do the LSS2200-8P SFP+ slots support?
Lantronix describes them as multi-gig SFP+ slots running at 10G, 5G, 2.5G or 1G. The switch has two of them, plus eight 10/100/1000Base-T ports with IEEE 802.3bt PoE.
How many SFP+ slots does the SISPM1040-3000-L3 have?

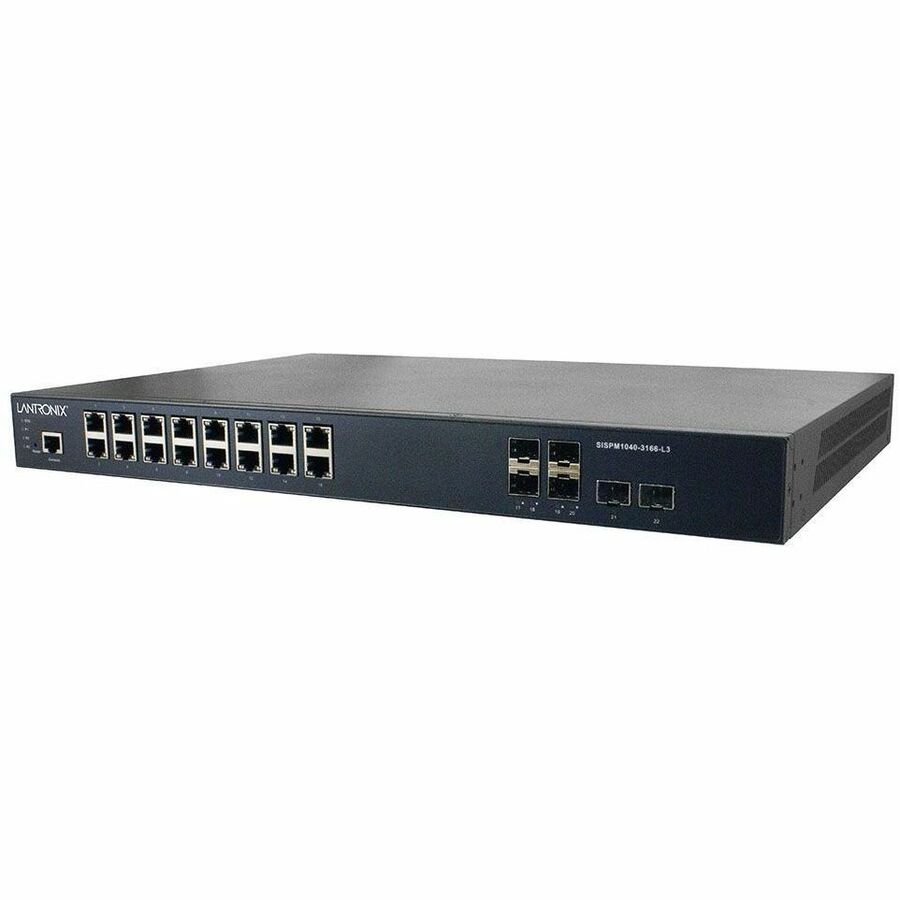

It depends on the model. The 24-port SISPM1040-3248-L3 has four 1G/10GBase-X SFP+ slots and four 100/1000Base-X SFP slots. The 16-port SISPM1040-3166-L3 has two SFP+ slots and four SFP slots.
What power supply does the LSS2200-8P use?
Lantronix lists two: the 25172, with 85-277 VAC or 80-370 VDC input and 48-57 VDC, 20 A, 960 W output, and the 25160, with 90-264 VAC or 127-370 VDC input and 48-55 VDC, 10 A, 480 W output.
Are SFP+ modules included with these switches?
The part descriptions list slots, not installed optics, and Lantronix points to its separate SFP, SFP+ and SFP28 module range. Plan to order transceivers matched to each slot's speed and your fiber type.
