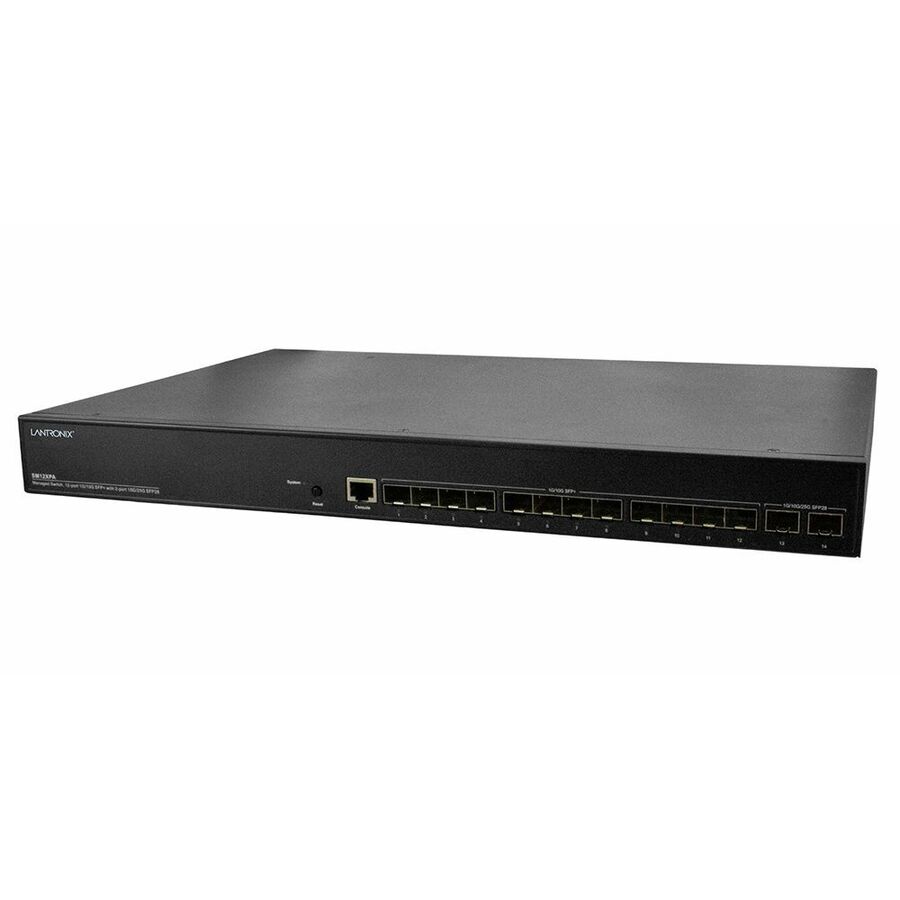

Lantronix SM12XPA-LA — Managed Fiber Switch
$1,921.42$2,854.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Fiber aggregation: (12) 1G/10G SFP+ slots
- High-speed fiber switching: (2) 1G/10G/25G SFP28 slots
- Console access: (1) RJ-45 Console port
- Layer 3 switching: IPv4/IPv6 Static Routing, RIP v1/v2, and OSPF v2
- VLAN support: up to 4K VLANs including Port based VLAN, IEEE 802.1Q tag-based VLAN, MAC-based VLAN, Management VLAN, Private VLAN Edge (PVE), Q-in-Q (double tag) VLAN, Voice VLAN, and GARP VLAN Registration Protocol (GVRP)
- Security controls: SSH v1 and v2 / SSL, RADIUS, TACACS+, IP Source Guard, Port Security, Storm Control, DHCP Snooping, and L2/L3/L4 ACLs
- Power cord: includes Latin America power cord
Lantronix SM12XPA-LA is a managed Layer 3 (L3) Multi-Gigabit Ethernet fiber switch for easier management and maintenance of end devices and networks. The switch provides (12) 1G/10G SFP+ slots, (2) 1G/10G/25G SFP28 slots, and (1) RJ-45 Console port. This LA configuration includes a Latin America power cord. SM12XPA-LA supports Layer 2 switching and basic Layer 3 features including IPv4/IPv6 Static Routing, RIP v1/v2, and OSPF v2. Listed services include VLANs up to 4K VLANs, DHCP Relay, IGMP Snooping, MLD Snooping, QoS with 8 hardware queues, and security features including SSH v1 and v2 / SSL, RADIUS, TACACS+, and ACLs.
Ideal For
- Managed fiber switching for 1G/10G SFP+ and 1G/10G/25G SFP28 connections
- Layer 2 switching with STP, RSTP, MSTP, LACP, VLAN, IGMP Snooping, and MLD Snooping features
- Basic Layer 3 routing with IPv4/IPv6 Static Routing, RIP v1/v2, and OSPF v2
- Network security designs using SSH v1 and v2 / SSL, RADIUS, TACACS+, IP Source Guard, Port Security, Storm Control, DHCP Snooping, and ACLs
Specifications
| Depth | 11.8" |
| Vlans | Supports up to 4K VLANs |
| Height | 1.7" |
| Manageable | Yes |
| Media Type | Optical Fiber; Twisted Pair |
| QoS Queues | 8 hardware queues |
| SFP+ Slots | (12) 1G/10G SFP+ slots |
| Jumbo Frame | Up to 10K bytes |
| Sfp28 Slots | (2) 1G/10G/25G SFP28 slots |
| Console Port | (1) RJ-45 Console port |
| Product Type | Managed Fiber Switch |
| Input Voltage | 120 V AC; 230 V AC |
| Layer Supported | 4 |
| Limited Warranty | Lifetime |
| Network Technology | 10GBase-X; 1000Base-X; 25GBase-X |
| Ethernet Technology | 25 Gigabit Ethernet |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Frequently Asked Questions
What ports are included on SM12XPA-LA?▾
SM12XPA-LA includes (12) 1G/10G SFP+ slots, (2) 1G/10G/25G SFP28 slots, and (1) RJ-45 Console port.
Is SM12XPA-LA manageable?▾
Yes. The input identifies SM12XPA-LA as a manageable, managed fiber switch.
Which Layer 3 routing features are listed?▾
The listed Layer 3 features include IPv4/IPv6 Static Routing, RIP v1/v2, and OSPF v2.
What power cord is included with SM12XPA-LA?▾
This LA configuration includes a Latin America power cord.
