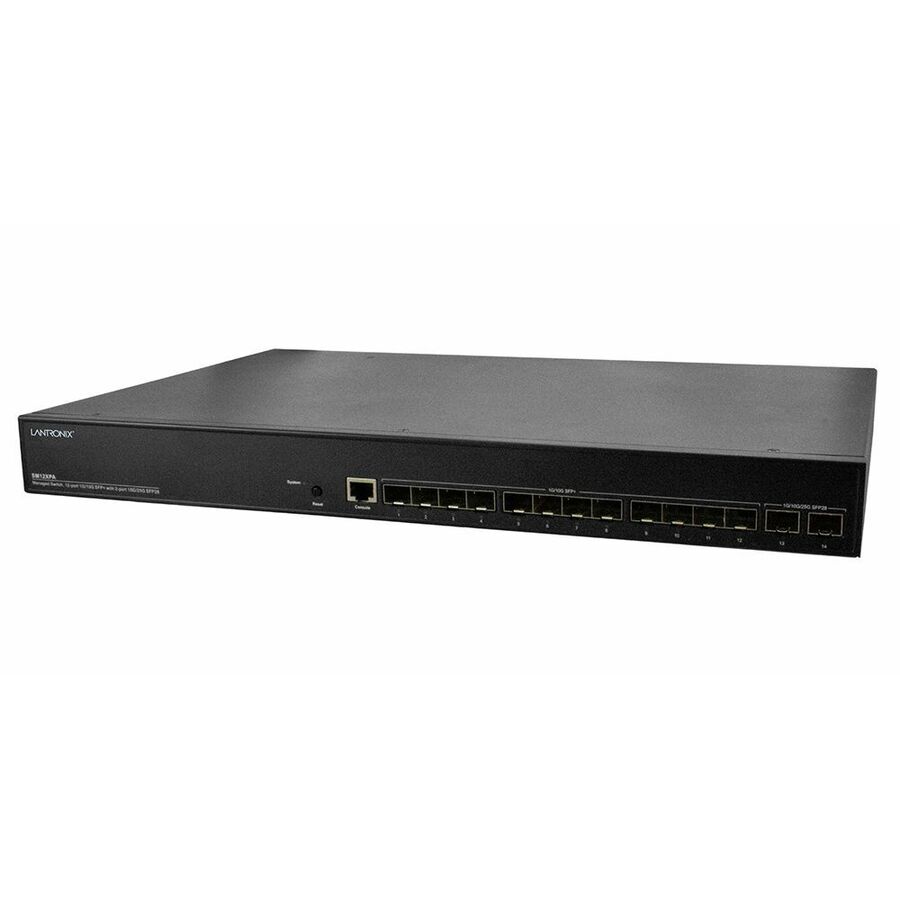

Lantronix SM12XPA-OZ — Managed Layer 3 Fiber Switch
$2,854.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 12 1G/10G SFP+ slots for fiber switching connections
- 2 1G/10G/25G SFP28 slots for 25 Gigabit Ethernet connectivity
- 1 RJ-45 Console port for console access
- Managed Layer 3 switching with Layer 2 and basic Layer 3 features
- VLAN support up to 4K VLANs, including port based VLAN, IEEE 802.1Q tag-based VLAN and MAC-based VLAN
- IPv4/IPv6 Static Routing, RIP v1/v2 and OSPF v2 routing features
- Australia power cord included with the SM12XPA-OZ configuration
The Lantronix SM12XPA-OZ is a managed Layer 3 SM12XPA Fiber Aggregation Switch. It provides (12) 1G/10G SFP+ slots, (2) 1G/10G/25G SFP28 slots and (1) RJ-45 Console port. The SM12XPA Fiber Aggregation Switch is listed as a managed Layer 3 Multi-Gigabit Ethernet fiber switch with Layer 2 and basic Layer 3 features. Listed switching features include STP, RSTP, MSTP, LACP, DHCP Relay, IGMP v1.v2/v3 Snooping, IGMP Querier, IGMP Proxy and MLD v1/v2 Snooping. Security and traffic features include SSH v1 and v2 / SSL, RADIUS, TACACS+, IP Source Guard, Port Security, Storm Control, DHCP Snooping, L2/L3/L4 ACLs and Quality of Service with 8 hardware queues. This configuration includes an Australia power cord.
Ideal For
- Fiber aggregation switching with 1G/10G SFP+ connections
- Managed Layer 3 switching using IPv4/IPv6 Static Routing, RIP v1/v2 or OSPF v2
- Networks requiring VLAN support up to 4K VLANs
- Console access through an RJ-45 Console port
Specifications
| Depth | 11.8" |
| Height | 1.7" |
| Manageable | Yes |
| SFP+ Slots | (12) 1G/10G SFP+ slots |
| Jumbo Frame | Up to 10K bytes |
| Sfp28 Slots | (2) 1G/10G/25G SFP28 slots |
| Console Port | (1) RJ-45 Console port |
| VLAN Support | Up to 4K VLANs |
| Input Voltage | 120 V AC; 230 V AC |
| Layer Supported | 4 |
| Limited Warranty | Lifetime |
| Ethernet Technology | 25 Gigabit Ethernet |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Quality Of Service Queues | 8 hardware queues |
Frequently Asked Questions
What ports and slots are included on SM12XPA-OZ?▾
SM12XPA-OZ includes (12) 1G/10G SFP+ slots, (2) 1G/10G/25G SFP28 slots and (1) RJ-45 Console port.
Is the Lantronix SM12XPA-OZ manageable?▾
Yes. The input lists SM12XPA as a manageable managed Layer 3 switch.
Which routing features are listed for this switch?▾
The listed Layer 3 features include IPv4/IPv6 Static Routing, RIP v1/v2 and OSPF v2.
What power cord is included?▾
This -OZ configuration includes an Australia power cord.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SM12XPA-OZ-L1Y1
$256.91 - 3-year technical support
SM12XPA-OZ-L1Y3
$749.31 - 5-year technical support
SM12XPA-OZ-L1Y5
$1,213.17 - 1-year extended warranty & technical support
SM12XPA-OZ-L2Y1
$371.09 - 3-year extended warranty & technical support
SM12XPA-OZ-L2Y3
$1,070.44 - 5-year extended warranty & technical support
SM12XPA-OZ-L2Y5
$1,712.70
