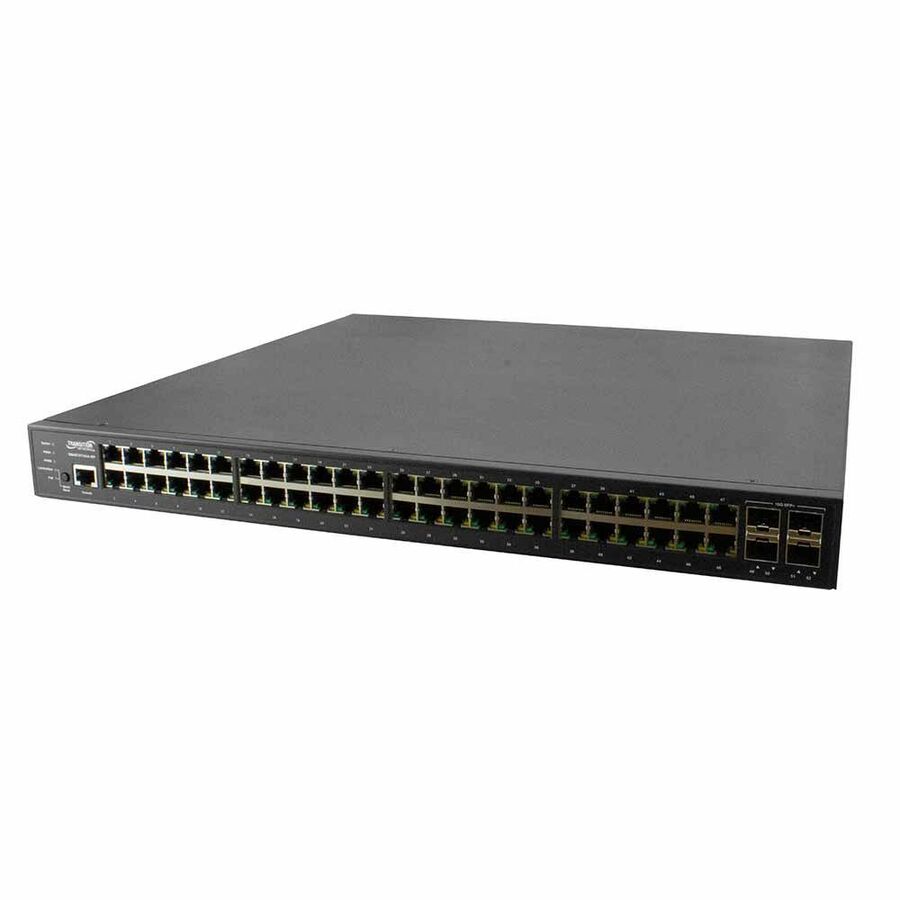

Lantronix SM48TAT4XA-RP-NA — 48-Port Gigabit PoE+ Switch

Name: Lantronix SM48TAT4XA-RP-NA — 48-Port Gigabit PoE+ Switch
Brand: Lantronix
SKU: SM48TAT4XA-RP-NA
Price: 2114.84 USD
Availability: InStock

Lantronix|

MPN: SM48TAT4XA-RP-NA

UPC: 648177043132

Low Stock (4 left)

$2,114.84$3,127.00

Ships from and sold by A5 IT

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day ShippingArrives by Wednesday, Oct 14

New, with full manufacturer warranty

Key Features

48 10/100/1000 RJ-45 ports for Gigabit copper access
4 dual speed 1G/10G SFP+ slots for uplinks
IEEE 802.3at PoE+ and IEEE 802.3af PoE compliance
820 Watts max PoE budget with a single power supply
IPv4/IPv6 Layer 3 static routing
Web Management, SNMP V1/V2c/V3, Telnet and CLI
Device Management System with topology view, floor view and map view
Power dense endpoints with 48 Gigabit PoE+ ports

Lantronix SM48TAT4XA-RP-NA is a managed Gigabit Ethernet PoE+ switch with (48) 10/100/1000Base-T ports and (4) dual speed 1G/10GBase-X SFP+ slots. This SKU is listed as a single AC power supply modular configuration. PoE features include IEEE 802.3at PoE+, IEEE 802.3af PoE, IEEE 802.1AB LLDP-MED Configuration, Auto Power Reset, DHCP per port and Always on PoE. With a single power supply, the listed max PoE budget is 820 Watts. Network controls include RADIUS IEEE 802.1X, TACACS+, SSH/SSL, port security, VLAN support, ACLs up to 512 entries, LLDP and IPv4/IPv6 Layer 3 static routing. Management options include Web Management, SNMP V1/V2c/V3, Telnet and CLI.

Ideal For

High-density Gigabit PoE+ access switching
Fiber uplinks from an access switch using 1G/10G SFP+ slots
Managed networks that require VLANs, ACLs, RADIUS IEEE 802.1X or TACACS+
Device Management System monitoring with topology view, floor view and map view

Specifications

Weight	8.38 lbs. [3.8 kg]
Humidity	5% to 90% (non-condensing)
Backplane	176 Gbps
Emissions	FCC Class A, CE Mark
Dimensions	17.4” [442 mm] x 17.31” [440 mm] x 1.73” [44 mm]
Management	Web Management, SNMP V1/V2c/V3, Telnet, CLI
SFP+ Slots	(4) 1G/10G SFP+ slots
Acl Support	Up to 512 entries
Form Factor	Rack-mountable
Jumbo Frame	Up to 10240 bytes
Power Input	100 – 240VAC
Serial Port	(1) RS-232 Serial port
Copper Ports	(48) 10/100/1000 RJ-45 ports
Igmp Snooping	V1/V2/V3, up to 1024 multicast groups
Max PoE++ Budget	820 Watts
PoE++ Compliance	IEEE 802.3af PoE
Static Routing	IPv4/IPv6 Layer 3 static routing
Hardware Queues	8 hardware queues
PoE++ Compliance	IEEE 802.3at PoE+
Link Aggregation	Up to 26 groups with up to (16) ports per group
30-watt PoE++ Ports	30 Watts for (27) ports simultaneously
Mac Address Table	32K MAC address table
154-watt PoE++ Ports	15.4 Watts for (48) ports simultaneously
Safety Certification	UL Listed
Operating Temperature	0°C to 50°C
Switching Architecture	Store-and-forward switching architecture
Power Supply Configuration	Single AC power supply

Documentation

Product Brief

SM48TAT4XA-RP Product Brief (A4)

PoE Switches & Media Converters Matrix

Managed 48-Port Gigabit PoE+ Switch with Device Management System (PDF 345.34 KB)

API User Guide Rev A (PDF 484.70 KB)

SM48TAT4XA-RP and SM24TAT4XB CLI Reference Guide Rev H

SM48TAT4XA-RP and SM24TAT4XB Installation Guide Rev J

Frequently Asked Questions

How many copper Ethernet ports does the SM48TAT4XA-RP-NA have?▾

It has (48) 10/100/1000 RJ-45 ports.

What uplink slots are included?▾

It has (4) dual speed 1G/10G SFP+ slots.

What is the PoE budget for this SKU?▾

With a single power supply, the listed max PoE budget is 820 Watts. The series data also lists 30 Watts for (27) ports simultaneously and 15.4 Watts for (48) ports simultaneously.

How can this switch be managed?▾

Management options include Web Management, SNMP V1/V2c/V3, Telnet and CLI. The Device Management System includes topology view, floor view, map view, traffic monitoring and troubleshooting.
