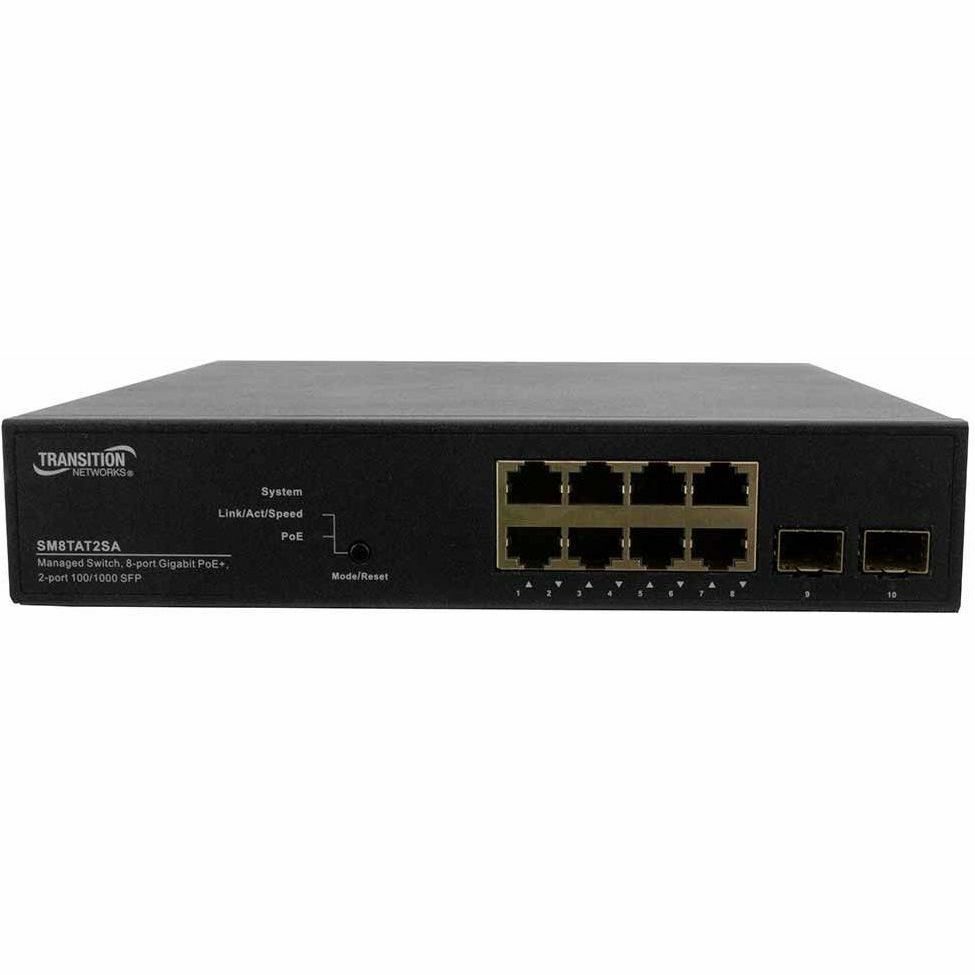

Lantronix SM8TAT2SA-DC — PoE+ Switch 8 Gigabit Ports, 2 SFP Slots
$452.20
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- (8) 10/100/1000Base-T PoE+ ports provide Gigabit copper connectivity with IEEE 802.3at PoE+ capability
- (2) 100/1000Base-X SFP slots add dual-speed SFP connectivity
- 130 Watts max PoE budget supports 30 Watts for (4) ports simultaneously or 15.4 Watts for (8) ports simultaneously
- +52 to +54VDC or -52 to -54VDC power input supports DC-powered deployments
- 20 Gbps backplane supports the switch’s listed switching capacity
- Device Management System (DMS) provides Topology view, Floor view, Map view, Traffic Monitoring and troubleshooting
- Web Management, SNMP V1/V2c/V3, Telnet and CLI provide management access
Lantronix SM8TAT2SA-DC is a DC-powered smart managed Gigabit Ethernet PoE+ switch with (8) 10/100/1000Base-T copper ports and (2) 100/1000Base-X SFP slots. It uses +52 to +54VDC or -52 to -54VDC input and includes 19” rack mount brackets. The switch provides 20 Gbps switching capacity and a 130 Watts max PoE budget. It supports 30 Watts for (4) ports simultaneously or 15.4 Watts for (8) ports simultaneously. Embedded Device Management System (DMS) software supports IP surveillance, Wireless Access Point and other applications. DMS features include graphical monitoring, Traffic Monitoring and troubleshooting for network diagnostic, protection mechanism, performance and link management.
Ideal For
- IP surveillance networks using attached IP-powered devices (PDs)
- Wireless Access Point deployments that need PoE+ ports
- DC-powered Gigabit Ethernet switching with SFP connectivity
- Network administration with graphical monitoring and Traffic Monitoring through Device Management System (DMS)
Specifications
| Weight | 2.2 lbs. [1.0 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Warranty | 5 Years |
| Backplane | 20 Gbps |
| PoE++ Power | 30 Watts for (4) ports simultaneously; 15.4 Watts for (8) ports simultaneously |
| SFP+ Slots | (2) 100/1000 SFP slots |
| Dimensions | 8.66” [220 mm] x 9.53” [242 mm] x 1.73” [44 mm] |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| PoE++ Budget | Max PoE budget 130 Watts |
| Technology | Store-and-Forward switching architecture |
| Mac Address | 8K MAC address table |
| Power Input | +52 to +54VDC or -52 to -54VDC |
| RJ-45 Ports | (8) 10/100/1000 RJ-45 ports |
| PoE++ Standard | Compliant with IEEE 802.3af PoE |
| PoE++ Standard | Compliant with IEEE 802.3at PoE+ |
| Troubleshooting | Network diagnostic, protection mechanism, performance and link management |
| Power Consumption | 140 Watts (full load with PoE) |
| Graphical Monitoring | Topology view, Floor view, Map view |
| Operating Temperature | 0°C to +50°C |
| Safety Certifications | EN60950, UL/cUL Listed |
| Device Management System | Traffic Monitoring |
Frequently Asked Questions
What power input does the SM8TAT2SA-DC require?▾
It uses +52 to +54VDC or -52 to -54VDC power input.
How many PoE+ and SFP ports does this switch have?▾
It provides (8) 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and (2) 100/1000Base-X SFP slots.
Are rack mount brackets included?▾
Yes. The part row states that the SM8TAT2SA-DC includes 19” rack mount brackets.
What management options are listed for this switch?▾
Management features include Web Management, SNMP V1/V2c/V3, Telnet and CLI, plus embedded Device Management System (DMS) software.
