Lantronix 25105 — DIN Rail Power Supply 120 Watts
$196.50$291.50
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 48~55 VDC output at 2.5A and 120 Watts
- 88-264 VAC input for AC-powered installations
- 124-370 VDC input for DC-powered installations
- DIN rail mountable form factor
- 91% efficiency rating
- Protection against short circuit, overload, over voltage, and overheating
- UL 508 approved, RoHS compliant, and TAA compliant

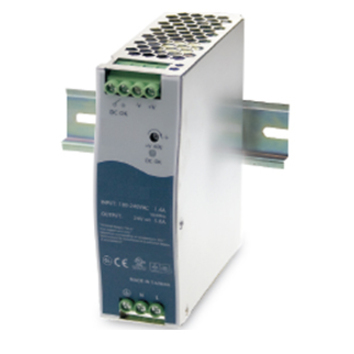

Lantronix 25105 is an industrial DIN rail mounted power supply for network infrastructure installations. It accepts 88-264 VAC or 124-370 VDC input and provides 48~55 VDC output at 2.5A and 120 Watts. The 25105 lists 91% efficiency, 150% peak load, convection air cooling, and protection against short circuit, overload, over voltage, and overheating. It is UL 508 approved, RoHS compliant, and TAA compliant. Lantronix lists the 25105 as a compatible accessory on the SISTP1040-300 Series page. Compatibility is also listed with Lantronix SISTP1040-382-LRT, SISTP1040-342-LRT, SM8TAT2SA-DC, and SISPM1040-362-LRT Gigabit Ethernet PoE+ switches.
Ideal For
- Providing 48~55 VDC power for listed Lantronix Gigabit Ethernet PoE+ switches
- DIN rail power installation in network infrastructure cabinets
- Replacing or adding a 120 Watts industrial DIN rail mounted power supply
- Supporting deployments that require UL 508 approved, RoHS compliant, and TAA compliant power equipment
Specifications
| MTBF | 298.9 Khrs |
| Depth | 4.5" |
| Height | 4.9" |
| Cooling | Convection air cooling |
| Approval | UL 508 approved |
| Input AC | 88-264 VAC |
| Input DC | 124-370 VDC |
| Peak Load | 150% |
| Compliance | RoHS compliant; TAA Compliant |
| Efficiency | 91% |
| Protection | Short Circuit; Overload; Over Voltage; Overheating |
| Form Factor | DIN Rail Mountable |
| Output Power | 120 Watts |
| Output Current | 2.5A |
| Output Voltage | 48~55 VDC |
| Limited Warranty | Lifetime |
| Compatible Product | SISTP1040-382-LRT; SISTP1040-342-LRT; SM8TAT2SA-DC; SISPM1040-362-LRT |
| Environmental Compliance | WEEE; REACH |
| Operating Temperature Maximum | 140°F (60°C) |
| Operating Temperature Minimum | -13°F (-25°C) |
Frequently Asked Questions
What input power does the 25105 accept?▾
Its input ratings are 88-264 VAC and 124-370 VDC.
What is the output rating?▾
The output is 48~55 VDC, 2.5A, 120 Watts.
Is the 25105 DIN rail mountable?▾
Yes. The 25105 is an industrial DIN rail mounted power supply and is listed as DIN rail mountable.
Which Lantronix switches are listed as compatible?▾
Compatibility is listed with Lantronix SISTP1040-382-LRT, SISTP1040-342-LRT, SM8TAT2SA-DC, and SISPM1040-362-LRT Gigabit Ethernet PoE+ switches.
