Lantronix 25104 — DIN Rail Power Supply 48VDC 5.0A 240 Watts
$495.00
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 48~55 VDC output with 5.0A and 240 Watts
- 85-264 VAC and 124-370 VDC input
- DIN rail mounting for industrial installations
- 94% efficiency
- Short circuit, overload, over voltage and overheating protection
- -25°C to +60°C operating temperature range
- UL508 and TUV EN60950-1 safety listings

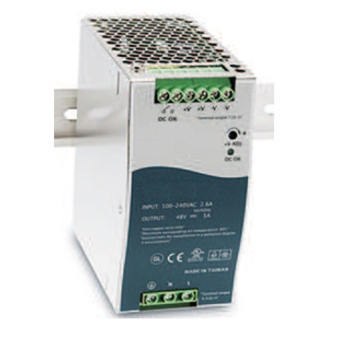

Lantronix 25104 is an industrial DIN rail mounted power supply for Lantronix switch accessory deployments. It accepts 85-264 VAC or 124-370 VDC input and provides 48~55 VDC output at 5.0A, 240 Watts. The unit is DIN rail mountable and specified for -25°C to +60°C operation, with 20% to 95% non-condensing humidity. Its current specifications list 94% efficiency. Lantronix lists 25104 as a Compatible Accessory on the SISTP1040-300 Series page.
Ideal For
- DIN rail power for Lantronix SISTP1040-300 Series switch deployments
- 48VDC accessory power for compatible Lantronix PoE+ switch installations
- Industrial installations that require -25°C to +60°C operating temperature support
- Replacement or additional industrial DIN rail mounted power supply for listed Lantronix switch accessories
Specifications
| Input | 85-264 VAC, 124-370 VDC |
| Safety | UL508, TUV EN60950-1 |
| Cooling | Convection air cooling |
| Humidity | 20% to 95% (non-condensing) |
| Mounting | DIN rail mountable |
| Peak Load | 150% Peak Load |
| Vibration | IEC60068-2-6 |
| Dimensions | 2.48” [63 mm] x 5.26” [113.5 mm] x 4.93” [125.2 mm] |
| Efficiency | 94% |
| Protection | Short Circuit; Overload; Over Voltage; Overheating |
| EMC Emission | EN55022,CISPR22 Class B, EN61000-3-2 |
| Power Rating | 240 Watts |
| Current Rating | 5.0A |
| Output Voltage | 48~55 VDC |
| TAA Compliance | TAA Compliant |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -25°C to +60°C |
| Environmental Certification | TÜV Rheinland Green Product |
Frequently Asked Questions
What input power does the Lantronix 25104 accept?▾
25104 accepts 85-264 VAC and 124-370 VDC input, as listed in the Lantronix product row.
What output does this power supply provide?▾
The output is 48~55 VDC, 5.0A, 240 Watts.
How does the 25104 mount?▾
It is DIN rail mountable.
Is 25104 listed as a compatible accessory for the SISTP1040-300 Series?▾
Lantronix lists 25104 under Compatible Accessories on the SISTP1040-300 Series page.
