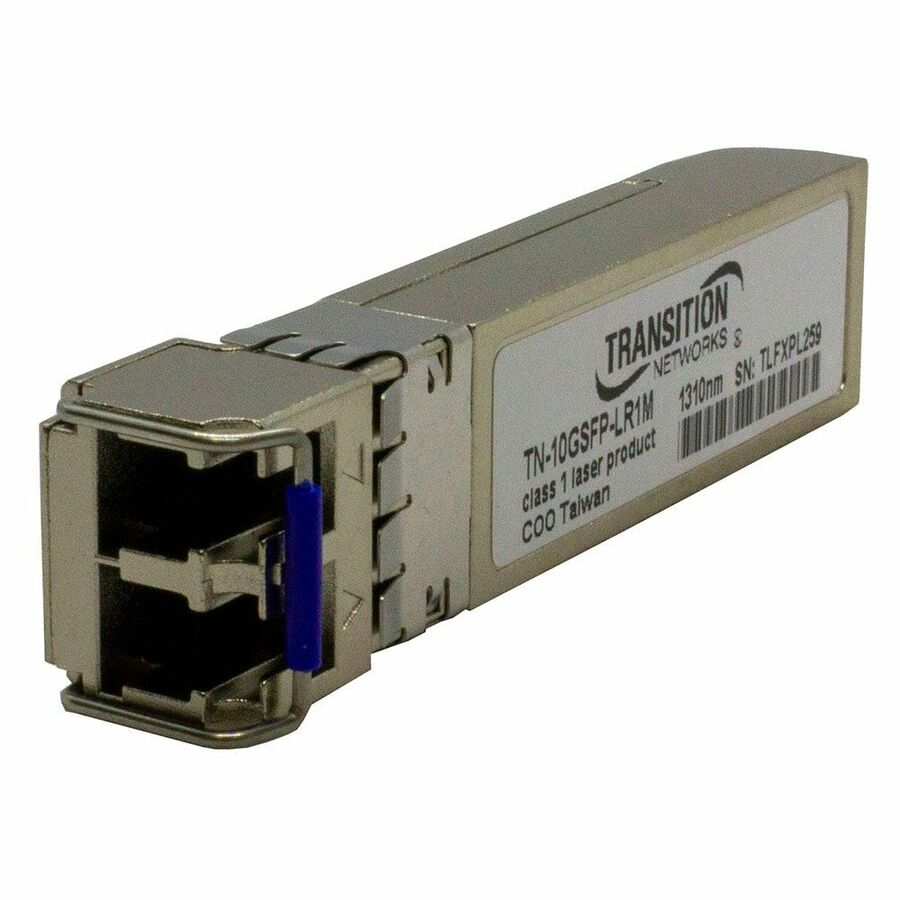

Lantronix TN-10GSFP-LR1T — TN-10GSFP-xRx Series 10GBase-LR/LW SFP+ Transceiver
$1,160.70
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10GBase-LR/LW optical link for single-mode fiber over 10 km/6.2 mi
- 1310nm LC interface with a 9.0 dB link budget
- 10.3 Gbps data rate with up to 10.5 Gbps bidirectional data links
- SFF-8472 Digital Diagnostic Function (DMI)
- 10G Small Form-Factor Pluggable (SFP+) MSA Compliant design
- Single +3.3 V power supply
- -40°C to +85°C operating temperature for TN-10GSFP-xxT modules
Lantronix TN-10GSFP-LR1T is a TN-10GSFP-xRx Series SFP+ optical transceiver for 10GBase-LR/LW links. It supports single-mode fiber at 1310nm with an LC connector and a listed reach of 10 km/6.2 mi. This module provides a 10.3 Gbps data rate, SFF-8472 Digital Diagnostic Function (DMI), and a single +3.3 V power supply. It is a 10G Small Form-Factor Pluggable (SFP+) MSA Compliant module. As a TN-10GSFP-xxT model, TN-10GSFP-LR1T is listed for -40°C to +85°C operation. The part row lists a 9.0 dB link budget.
Ideal For
- 10 Gigabit Ethernet 10GBase-LR/LW optical network links
- Single-mode fiber connections using LC interfaces
- Data networking links requiring SFP+ with DMI
- 10 km/6.2 mi. optical fiber runs
Specifications
| Depth | 2.2” [56 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Warranty | Lifetime |
| Data Rate | 10.3 Gbps |
| Standards | IEEE 802.3ae |
| Wavelength | 1310nm |
| Form Factor | Plug-in Module |
| Link Budget | 9.0 dB |
| Power Supply | +3.3 V |
| Certifications | IEC-60825, FAD 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| TAA Compliance | TAA Compliant |
| Network Technology | 10GBase-LR/LW |
| Storage Temperature | -40°C to 85°C |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Optical Fiber |
| Operating Temperature | -40°C to +85°C (TN-10GSFP-xxT) |
| Bidirectional Data Links | Up to 10.5 Gbps |
| Environmental Compliance | RoHS; WEEE; REACH |
| Interfaces Ports Details | 1 x LC 10GBase-LR/LW Network |
| Maximum Data Transfer Rate | 10.30 Gbit/s |
| Maximum Distance Supported | 10 km |
| Digital Diagnostic Function | SFF-8472 Digital Diagnostic Function (DMI) |
Frequently Asked Questions
What fiber type does TN-10GSFP-LR1T use?▾
TN-10GSFP-LR1T uses 10GBase-LR/LW over single-mode optical fiber with an LC connector.
What distance does this SFP+ module support?▾
The listed reach is 10 km/6.2 mi.
Does this module support DMI?▾
Yes. The TN-10GSFP-xRx Series includes SFF-8472 Digital Diagnostic Function (DMI).
What is the operating temperature for this T model?▾
TN-10GSFP-xxT modules are listed with an operating temperature of -40°C to +85°C.
