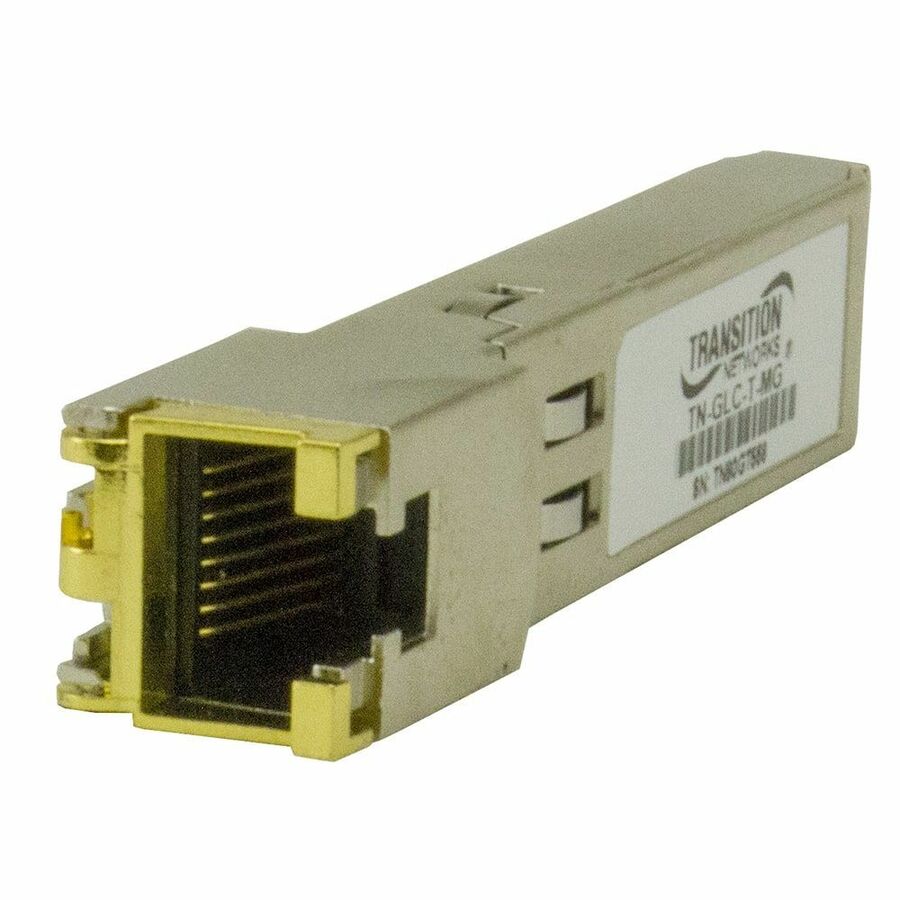

Lantronix TN-GLC-T-MG — TN-GLC-T 10/100/1000Base-T RJ-45 SFP Module
$94.12
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T RJ-45 network connection
- 100 m/328 ft. supported distance
- Cisco Compatible Gigabit SFP Module
- 3.3V power input
- 1.0 Watts power consumption
- 0°C to 70°C operating temperature
- IEEE 802.3 standard
The Lantronix TN-GLC-T-MG is part of the TN-GLC-T Series of Cisco Compatible Gigabit SFP Modules for 1000Base-T (RJ-45) applications. This SKU is listed for 10/100/1000Base-T (RJ-45) with 100 m/328 ft. reach over twisted pair cabling. It uses 3.3V power input and has 1.0 Watts power consumption. The module measures 0.95” [24 mm] wide, 2.8” [71 mm] deep, and 0.54” [14 mm] high. Lantronix lists the operating range as 0°C to 70°C and the storage range as -40°C to 85°C.
Ideal For
- Adding a Cisco compatible RJ-45 SFP interface to data networking equipment
- Supporting 10/100/1000Base-T twisted pair links through an SFP slot
- Using an RJ-45 SFP connection at 100 m/328 ft. reach
- Selecting a 3.3V Gigabit SFP module for TN-GLC-T Series deployments
Specifications
| Depth | 2.8” [71 mm] |
| Width | 0.95” [24 mm] |
| Height | 0.54” [14 mm] |
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| Power Input | 3.3V |
| TAA Compliant | Yes |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11; UL Listed |
| Connector Type | RJ-45 |
| Maximum Distance | 100 m/328 ft |
| Power Consumption | 1.0 Watts |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Media Type Supported | Twisted Pair |
| Operating Temperature | 0°C to 70°C |
| Total Number Of Ports | 1 |
Frequently Asked Questions
What network technology does TN-GLC-T-MG support?▾
TN-GLC-T-MG supports 10/100/1000Base-T over RJ-45 twisted pair.
Is this SFP Cisco compatible?▾
Yes. Lantronix lists the TN-GLC-T Series as Cisco Compatible Gigabit SFP Modules.
What distance does this module support?▾
Lantronix lists the reach as 100 m/328 ft.
What are the power specifications?▾
The module uses 3.3V power input and has 1.0 Watts power consumption.
