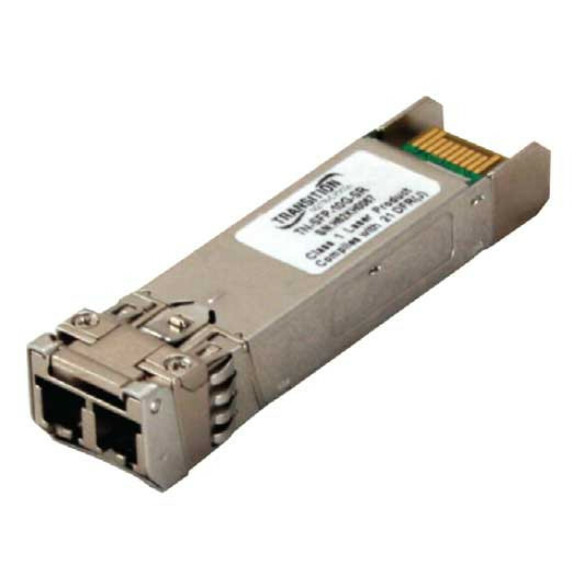

Lantronix TN-J9150A — TN-J915xA Series 10GBase-SR SFP+ Transceiver HP Compatible
$192.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10GBase-SR SFP+ transceiver for HP X132 compatible 10GBase-X applications
- LC optical connector for multimode fiber links
- 850nm multimode operation with distances of 300/82/33 m; 985/269/108 ft
- SFF-8472 Digital Diagnostic Function (DMI) for transceiver diagnostics
- 4.0 dB link budget for the TN-J9150A part
- 3.3V power input with RoHS compliance
Lantronix TN-J9150A is the 10GBase-SR model in the TN-J915xA Series of HP-compatible 10GBase SFP+ modules. It is an SFP+ optical transceiver with an LC connector, DMI, and multimode 850nm operation. The TN-J9150A part row lists distances up to 300m on 50/125 OM3 multi-mode fiber, up to 82 m for 50/125 um multi-mode fiber, and up to 33m for 62.5/125 um multi-mode fiber. The listed link budget is 4.0 dB. Applications include 10G Ethernet switches and routers and Metro Edge Switching. The series is 10G Small Form-Factor Pluggable (SFP+) MSA Compliant and uses a single +3.3V power supply.
Ideal For
- 10G Ethernet switch links using 10GBase-SR over multimode fiber
- Router connections using HP-compatible SFP+ optics
- Metro Edge Switching applications
- Short-reach multimode fiber links with LC connectors
Specifications
| Distance | 300/82/33 m; 985/269/108 ft |
| Standard | IEEE 802.3z; IEEE 802.3ae |
| Warranty | Lifetime |
| Connector | LC |
| Compliance | RoHS Compliant |
| Dimensions | 0.52” [13 mm] x 2.18” [55 mm] x 0.33” [8 mm] |
| Fiber Type | Multimode |
| Wavelength | 850nm |
| Form Factor | SFP+ |
| Link Budget | 4.0 dB |
| Power Input | 3.3V |
| Certification | IEC-60825; FDA 21, CFR 1040.10 and 1040.11 |
| Network Technology | 10GBase-SR |
| Digital Diagnostics | SFF-8472 Digital Diagnostic Function (DMI) |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
| Distance On 50 125 Um Multi-mode Fiber | Up to 82 m |
| Bandwidth On 50 125 Um Multi-mode Fiber | 500 MHz-km at 850nm |
| Distance On 50 125 Om3 Multi-mode Fiber | Up to 300m |
| Distance On 625 125 Um Multi-mode Fiber | Up to 33m |
| Bandwidth On 625 125 Um Multi-mode Fiber | 200 MHzkm at 850nm |
Frequently Asked Questions
What type of fiber is TN-J9150A for?▾
TN-J9150A is a 10GBase-SR SFP+ with DMI for multimode 850nm fiber and an LC connector.
What distances does TN-J9150A support?▾
The part row lists distance up to 300m on 50/125 OM3 multi-mode fiber, up to 82 m for 50/125 um multi-mode fiber, and up to 33m for 62.5/125 um multi-mode fiber.
Does TN-J9150A include DMI?▾
Yes. The TN-J915xA Series features SFF-8472 Digital Diagnostic Function (DMI).
What temperature range is listed for TN-J9150A?▾
The listed operating range is 0°C to 70°C. The listed storage range is -40°C to 85°C.
