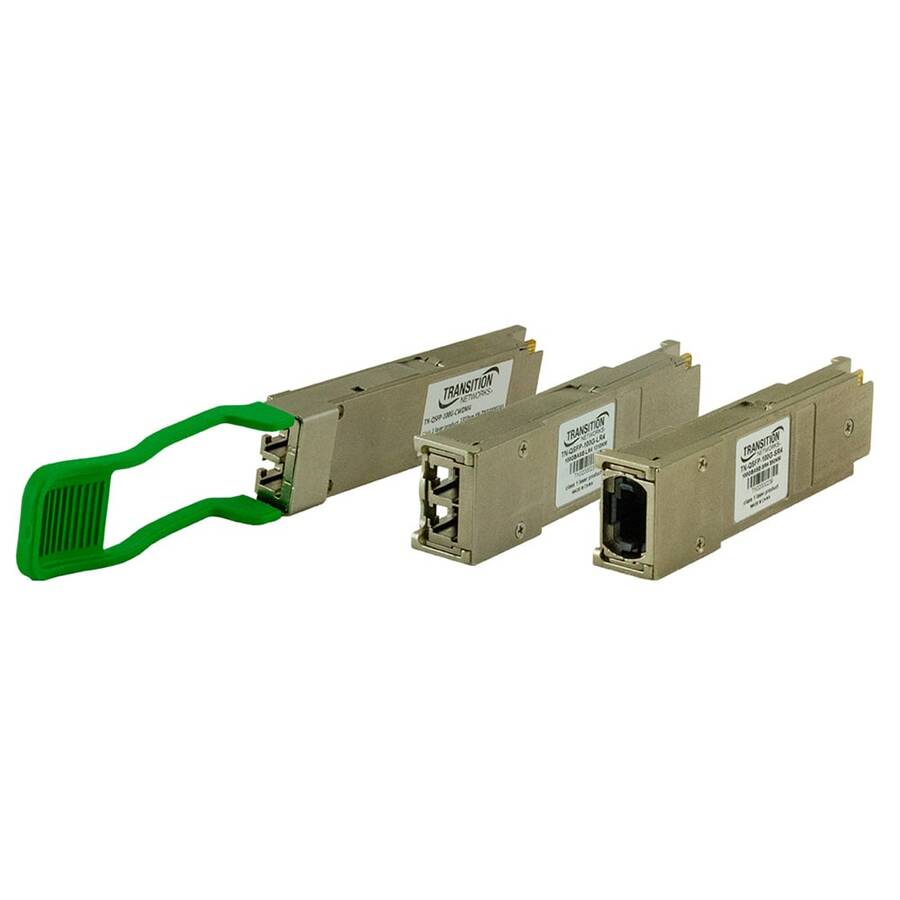

Lantronix TN-QSFP-100G-SR4 — QSFP28 100GBase-SR4 Transceiver
$391.29$583.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 100GBase-SR4 connectivity for 100 Gigabit Ethernet QSFP28 ports
- 850nm multimode fiber interface with MPO connector
- 100 m/328 ft. reach on OM4 fiber
- 70 m/229 ft. reach on OM3 fiber
- DMI with 2.3 dB link budget
- Hot-pluggable QSFP28 form factor
- Single 3.3V power supply
Lantronix TN-QSFP-100G-SR4 is a Cisco Compliant QSFP28 optical transceiver for 100 Gigabit Ethernet connections. It is part of the TN-QSFP-100G Series and can be installed in any QSFP28 port. This SR4 model provides 100GBase-SR4 connectivity over 850nm multimode fiber with an MPO connector. It supports 100 m/328 ft. on OM4 and 70 m/229 ft. on OM3. The TN-QSFP-100G Series is compliant with IEEE 802.3bm and includes Digital Diagnostic Monitoring. Applications include data center, high-performance computing network, and core network deployments.
Ideal For
- Data center 100 Gigabit Ethernet links
- High-performance computing network connections
- Core network QSFP28 connectivity
- Short-reach multimode fiber connections over OM4 or OM3
Specifications
| Depth | 2.83” [72 mm] |
| Width | 0.71” [18 mm] |
| Height | 0.33” [8.5 mm] |
| Capacity | Up to 103.1 Gbps |
| Warranty | Lifetime |
| Standards | IEEE 802.3bm; SFF 8436 |
| Wavelength | 850nm |
| Form Factor | Hot-pluggable QSFP28 |
| Link Budget | 2.3 dB |
| Power Input | 3.3V |
| Reach On Om3 | 70 m/229 ft. on OM3 |
| Reach On Om4 | 100 m/328 ft. on OM4 |
| Certification | IEC 60825-1, FDA CDRH 21-CFR 1040.10 Class 1 |
| Network Interface | 1 x MPO 100GBase-SR4 Network |
| Power Dissipation | < 3.5 Watts |
| Ethernet Technology | 100 Gigabit Ethernet |
| Storage Temperature | -40°C to +85°C |
| Fiber Mode Supported | Multi-mode |
| Operating Temperature | 0°C to +70°C |
| Environmental Compliance | RoHS |
Frequently Asked Questions
What fiber and connector does the TN-QSFP-100G-SR4 use?▾
It uses multimode fiber with an MPO connector for 100GBase-SR4.
What is the supported distance?▾
The listed reach is 100 m/328 ft. on OM4 and 70 m/229 ft. on OM3.
Does this transceiver support DMI?▾
Yes. The part-table row lists the TN-QSFP-100G-SR4 with DMI, and the series features include Digital Diagnostic Monitoring.
What is the operating temperature range?▾
The listed operating range is 0°C to +70°C.
