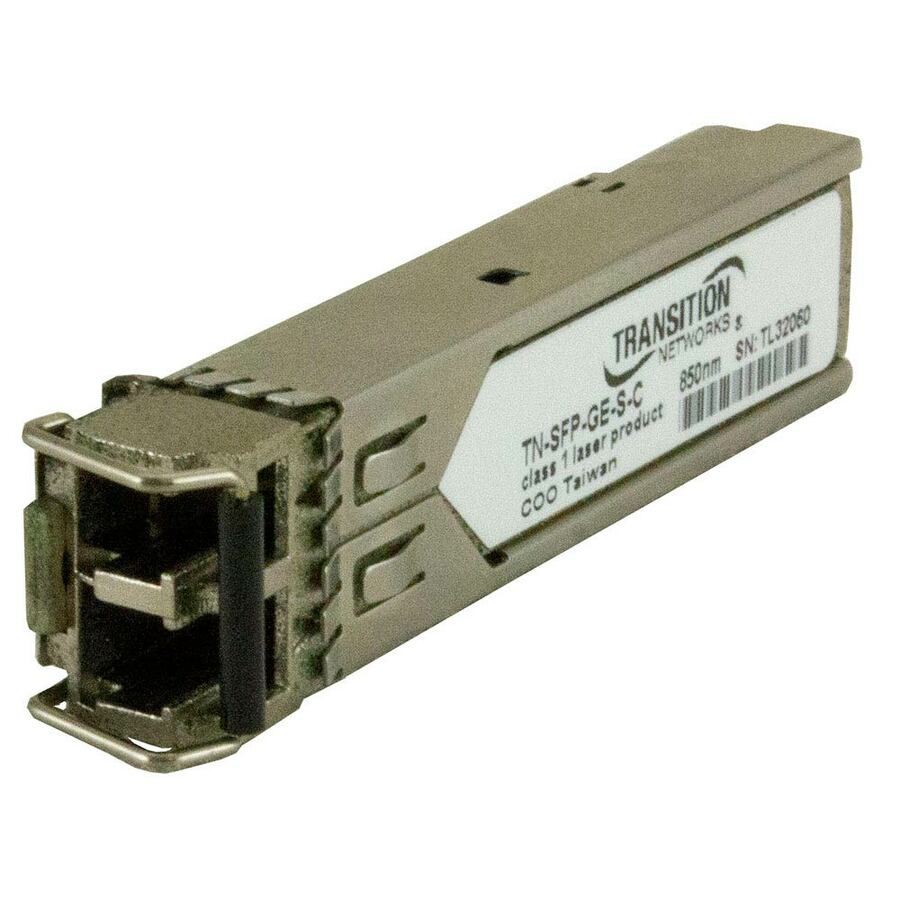

Lantronix TN-SFP-GE-S-C — TN-SFP-GE-x-C Series 1000Base-SX Multimode SFP
$118.18$176.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Tuesday, Oct 13
Order within 5h 23m to get it by Tuesday, Oct 13
New, with full manufacturer warranty
Key Features
- 1000Base-SX 850nm multimode fiber support with LC interface
- 1.25Gbps Gigabit Ethernet operation over optical fiber
- 550 m/1804 ft. distance on 50/125 μm fiber with 8.5 dB link budget
- 220 m/722 ft. distance on 62.5/125 μm fiber with 8.5 dB link budget
- SFF-8472 Digital Diagnostic Function (DMI)
- Conformal Coating compliant to EIA-364-65B Class IIIA
- Extended operating temperature from -40°C to 85°C
Lantronix TN-SFP-GE-S-C is a hardened Cisco Compatible Gigabit SFP Module in the TN-SFP-GE-x-C Series. It provides 1000Base-SX 850nm multimode optical connectivity through an LC interface with DMI. This conformal-coated SFP is built for extended operating temperatures from -40°C to 85°C. It is compliant with the IEEE 802.3z Gigabit Ethernet Standard and supports SFF-8472 Digital Diagnostic Function. For multimode fiber, Lantronix lists 220 m/722 ft. reach on 62.5/125 μm fiber and 550 m/1804 ft. reach on 50/125 μm fiber, each with an 8.5 dB link budget.
Ideal For
- 1000Base-SX Gigabit Ethernet links over multimode optical fiber
- Cisco compatible SFP deployments that require LC optical connectivity
- Hardened network installations operating from -40°C to 85°C
- Fiber links where SFF-8472 Digital Diagnostic Function (DMI) is required
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| Fiber Mode | Multi-mode |
| Wavelength | 850nm |
| Power Input | 3.3V |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Conformal Coating | EIA-364-65B Class IIIA |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-SX |
| Ethernet Technology | 1.25 Gigabit Ethernet |
| Operating Temperature | -40°C to 85°C |
| Distance At 50 125 μM | 550 m/1804 ft |
| Distance At 625 125 μM | 220 m/722 ft |
| Interfaces Ports Details | 1 x LC Duplex 1000Base-SX Network |
| Gigabit Ethernet Standard | IEEE 802.3z |
| Link Budget At 50 125 μM | 8.5 dB |
| Link Budget At 625 125 μM | 8.5 dB |
| Digital Diagnostic Function | SFF-8472 Digital Diagnostic Function (DMI) |
Frequently Asked Questions
What fiber type does the TN-SFP-GE-S-C support?▾
The TN-SFP-GE-S-C supports 1000Base-SX 850nm multimode fiber with an LC interface and DMI.
What distances are listed for this SFP?▾
Lantronix lists 220 m/722 ft. on 62.5/125 μm fiber and 550 m/1804 ft. on 50/125 μm fiber, both with an 8.5 dB link budget.
Is this a Cisco compatible Gigabit SFP?▾
Yes. The TN-SFP-GE-x-C Series is described as Cisco Compatible and compliant with the IEEE 802.3z Gigabit Ethernet Standard.
Does this SFP include DMI?▾
Yes. Lantronix lists SFF-8472 Digital Diagnostic Function (DMI) for this series.
