Lantronix TN-SFP-GE-x-C Series Hardened Conformal-Coated Gigabit SFPs
The TN-SFP-GE-x-C Series is a family of Cisco-compatible Gigabit SFP transceivers with conformal coating and a -40°C to 85°C rating, made for switches and media converters in outdoor, industrial and corrosive environments.
From $101.96
Overview
About the Lantronix TN-SFP-GE-x-C Series
Standard optics in roadside cabinets, substations and plant floors face condensation, dust and corrosive air that commercial modules are not built for. The TN-SFP-GE-x-C Series (TN-SFP-GE-S-C, TN-SFP-GE-L-C and TN-SFP-GE-Z-C) addresses this with conformal coating on the module electronics, tested to EIA-364-65B Class IIIA, and an extended -40°C to 85°C operating range. The modules are Cisco compatible and comply with IEEE 802.3z, so they suit hardened Cisco switches and other Gigabit SFP ports.
Three optics cover short, medium and long reach on LC duplex connectors. The 850 nm 1000Base-SX model runs 220 m on 62.5/125 μm or 550 m on 50/125 μm multimode fiber. The 1310 nm 1000Base-LX model reaches 10 km on single-mode fiber, and the 1550 nm model reaches 80 km with a 24.0 dB link budget. All three provide SFF-8472 digital diagnostics (DMI).
Each module draws 0.66 W from 3.3 V, measures 13 x 55 x 8 mm and complies with IEC-60825 and FDA 21 CFR 1040.10 and 1040.11 laser safety. The -40°C to 85°C rating and coating apply to all three part numbers, so the choice between them comes down to fiber type and span alone. Lantronix publishes a dedicated brief on its conformal-coated hardened Gigabit SFP modules, and installation is covered in the Lantronix Various SFPs (33480) user guide.
Key capabilities
- Conformal coating
- Coated module electronics comply with EIA-364-65B Class IIIA, adding protection for installations exposed to harsh or humid air.
- -40°C to 85°C operation
- Extended temperature rating matches hardened switches and media converters installed in outdoor cabinets and unconditioned industrial spaces.
- Cisco compatible
- Built as Cisco-compatible Gigabit SFPs and compliant with IEEE 802.3z, the modules fit Cisco SFP ports as well as other standard SFP slots.
- SFF-8472 diagnostics
- Every module supports SFF-8472 DMI, so the host can read optical and operating parameters for monitoring and troubleshooting.
- 550 m to 80 km
- Choose 850 nm multimode to 550 m, 1310 nm single-mode to 10 km or 1550 nm single-mode to 80 km, all with LC duplex connectors.
How to choose the right TN-SFP-GE-x-C Series part number
The middle letter in the part number sets the optic, and the -C suffix marks the conformal-coated hardened version. TN-SFP-GE-S-C is 1000Base-SX 850 nm multimode: 220 m on 62.5/125 μm or 550 m on 50/125 μm, 8.5 dB budget. TN-SFP-GE-L-C is 1000Base-LX 1310 nm single-mode to 10 km with a 10.5 dB budget. TN-SFP-GE-Z-C is 1550 nm single-mode to 80 km with a 24.0 dB budget. All use LC duplex connectors and DMI. Match the module to your fiber type and span, and use the same type at both ends.
Configure & order
Find your TN-SFP-GE-x-C Series part number
Every orderable TN-SFP-GE-x-C Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

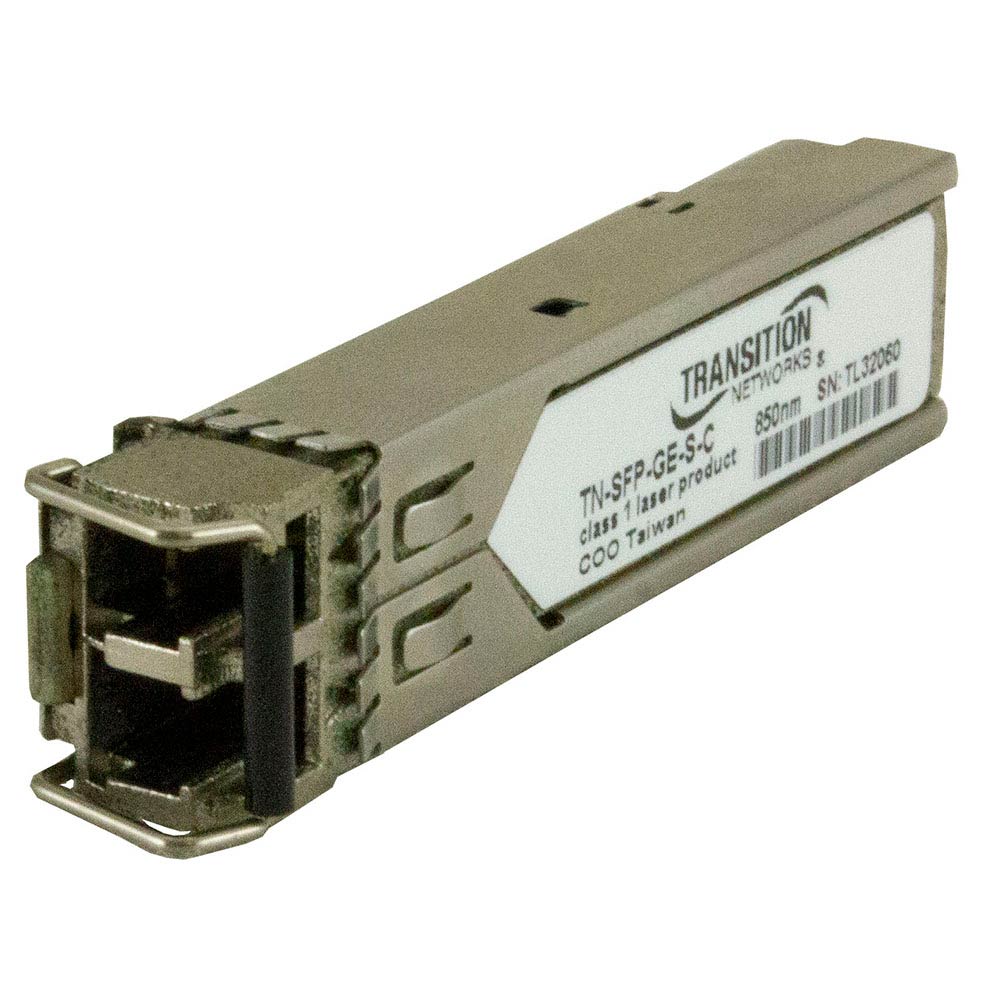

TN-SFP-GE-S-C
$176.00
6 in stock

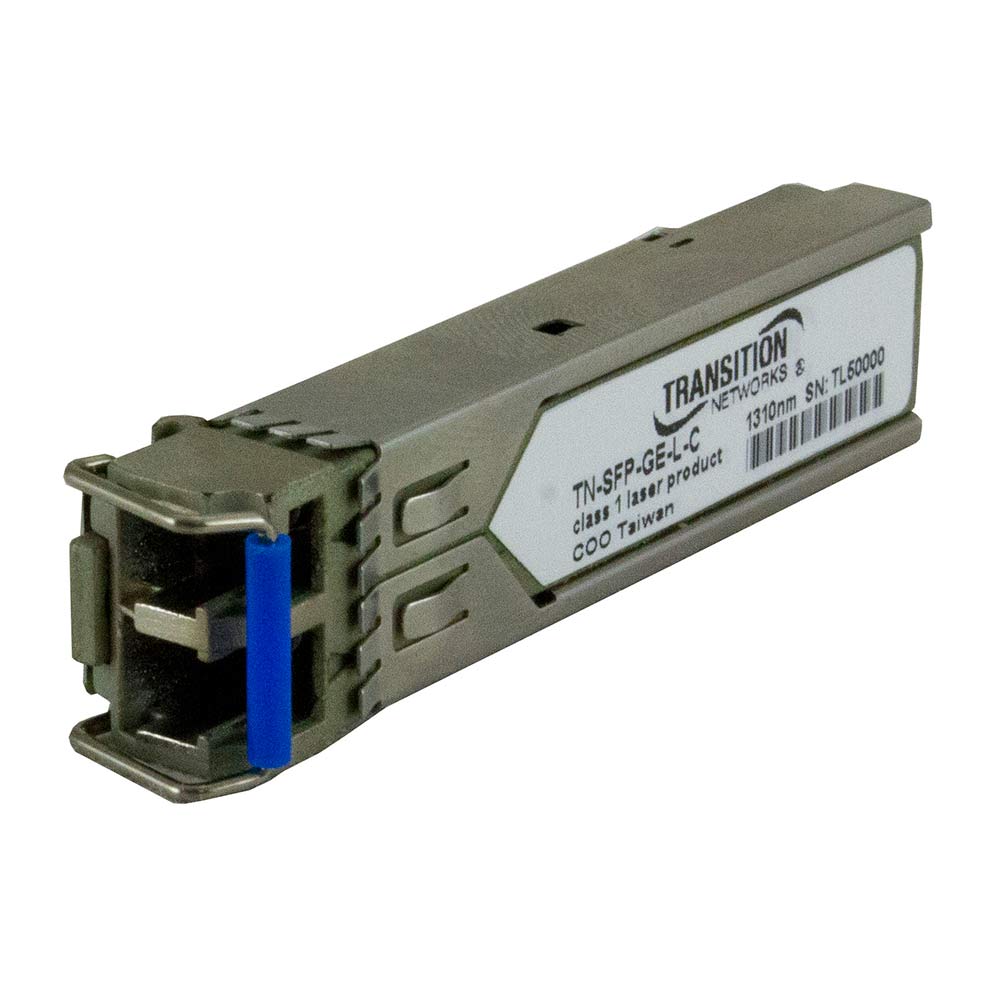

TN-SFP-GE-L-C
$101.96
Ships on backorder

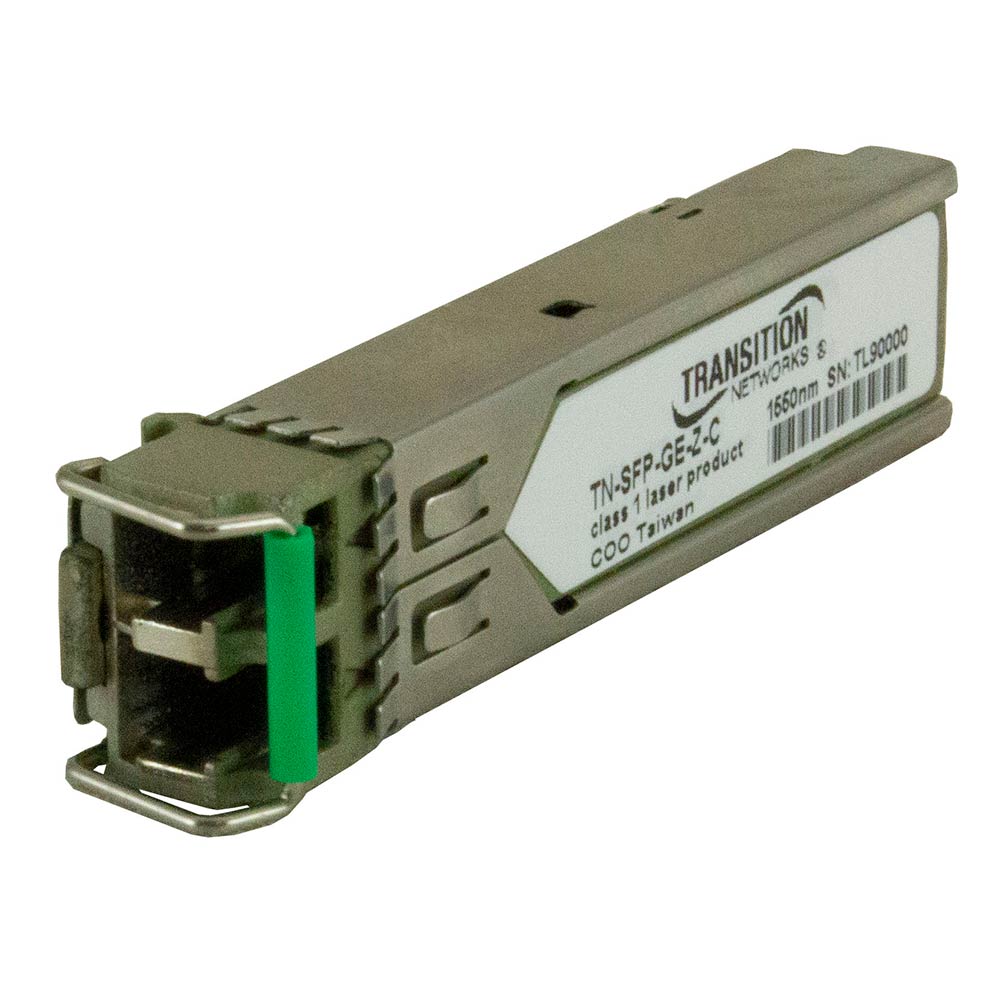

TN-SFP-GE-Z-C
$913.00
Ships on backorder
Where the TN-SFP-GE-x-C Series is used
- Hardened Cisco switch uplinks in outdoor cabinets
- Substation and utility fiber links in corrosive air
- Industrial plant-floor fiber backbones
- Long-haul 80 km Gigabit links between remote sites
TN-SFP-GE-x-C Series datasheets & documentation
TN-SFP-GE-x-C Series FAQ
What does the -C mean in TN-SFP-GE-S-C?
The -C designates the conformal-coated, hardened version of the module. TN-SFP-GE-S-C, TN-SFP-GE-L-C and TN-SFP-GE-Z-C have coated electronics complying with EIA-364-65B Class IIIA and operate from -40°C to 85°C.
What is the operating temperature of TN-SFP-GE-x-C transceivers?
All TN-SFP-GE-x-C modules operate from -40°C to 85°C. That extended range, combined with conformal coating, makes them suited to hardened switches and media converters in outdoor and industrial installations.
How far can TN-SFP-GE-x-C modules transmit?
TN-SFP-GE-S-C reaches 220 m on 62.5/125 μm or 550 m on 50/125 μm multimode fiber. TN-SFP-GE-L-C reaches 10 km on single-mode fiber, and TN-SFP-GE-Z-C reaches 80 km on single-mode fiber at 1550 nm.
Are TN-SFP-GE-x-C SFPs Cisco compatible?
Yes. Lantronix describes the series as hardened Cisco-compatible Gigabit SFP modules. They comply with IEEE 802.3z, use LC duplex connectors and support SFF-8472 digital diagnostics.
