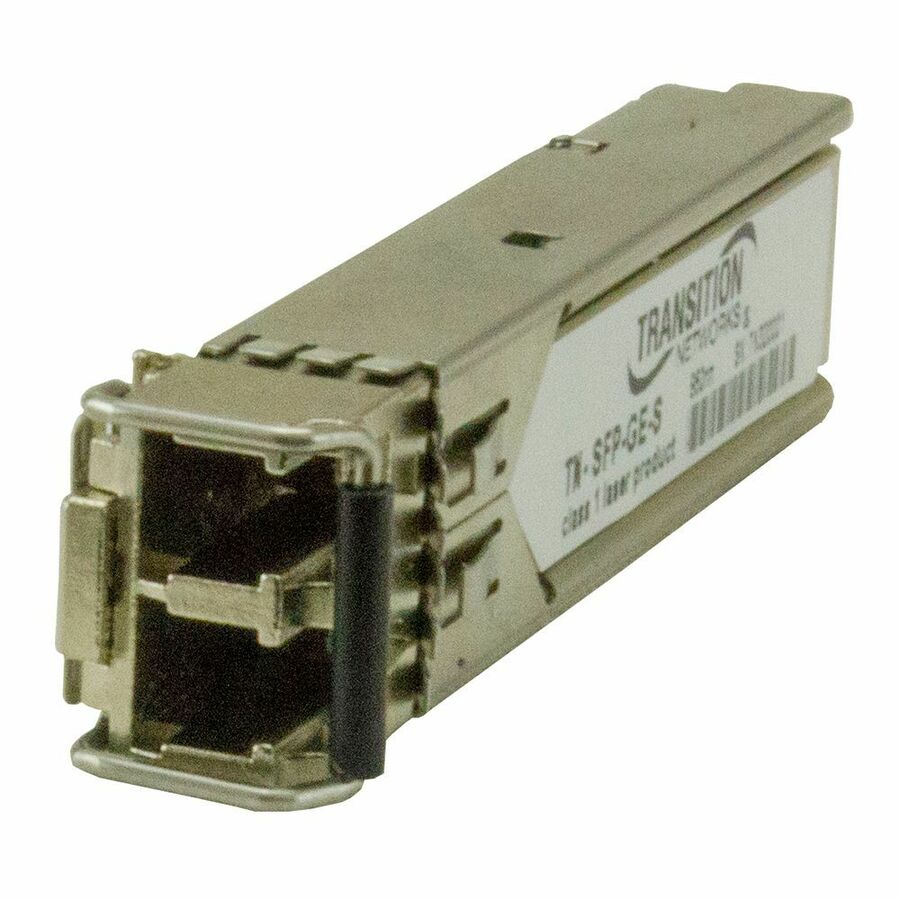

Lantronix TN-SFP-GE-S — TN-SFP-GE-x Series 1000Base-SX Multimode LC SFP
$32.95$49.02
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-SX 850nm multimode LC connectivity with DMI
- 550 m/1804 ft. reach on 50/125 μm multimode fiber
- 220 m/722 ft. reach on 62.5/125 μm multimode fiber
- 8.5 dB link budget for listed multimode fiber options
- Extended operating temperature -40°C to +85°C
- 3.3V power input with 0.66 Watts power consumption
- UL Listed status for this SKU
Lantronix TN-SFP-GE-S is a hardened Cisco compatible Gigabit SFP module in the TN-SFP-GE-x Series. It provides 1000Base-SX 850nm multimode LC connectivity with DMI. The module supports 220 m/722 ft. on 62.5/125 μm multimode fiber and 550 m/1804 ft. on 50/125 μm multimode fiber. The listed link budget is 8.5 dB. TN-SFP-GE-S operates from -40°C to 85°C, uses 3.3V power input, and is listed with 0.66 Watts power consumption. This SKU is UL Listed and carries a Lifetime warranty.
Ideal For
- Adding 1000Base-SX multimode LC fiber connectivity to Cisco compatible Gigabit SFP ports
- Short-reach multimode fiber links up to 550 m/1804 ft. on 50/125 μm fiber
- Network deployments that require DMI in a Gigabit SFP module
- Installations that require a UL Listed TN-SFP-GE-x Series 1000Base-SX SKU
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standards | IEEE 802.3 |
| Wavelength | 850nm |
| Power Input | 3.3V |
| Product Type | SFP (mini-GBIC) |
| TAA Compliant | Yes |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11; UL Listed |
| Connector Type | LC |
| Product Series | TN-SFP-GE-x |
| Limited Warranty | Lifetime |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-SX |
| 50 125 μM Distance | 550 m/1804 ft |
| Ethernet Technology | Gigabit Ethernet |
| 625 125 μM Distance | 220 m/722 ft |
| Fiber Mode Supported | Multi-mode |
| Media Type Supported | Optical Fiber |
| Operating Temperature | -40°C to 85°C |
| Total Number Of Ports | 1 |
| 50 125 μM Link Budget | 8.5 dB |
| 625 125 μM Link Budget | 8.5 dB |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Interfaces Ports Details | 1 x LC 1000Base-SX Network |
| Maximum Distance Supported | 0.55 km |
Frequently Asked Questions
Is TN-SFP-GE-S Cisco compatible?▾
Yes. The TN-SFP-GE-x Series is described as hardened Cisco compatible Gigabit SFP modules.
Does this SFP include DMI?▾
TN-SFP-GE-S supports DMI, as listed in the part description for this SKU.
What distance does TN-SFP-GE-S support?▾
It supports 220 m/722 ft. on 62.5/125 μm multimode fiber and 550 m/1804 ft. on 50/125 μm multimode fiber.
Is this SKU UL Listed?▾
Yes. The Lantronix part row lists TN-SFP-GE-S as UL Listed.
