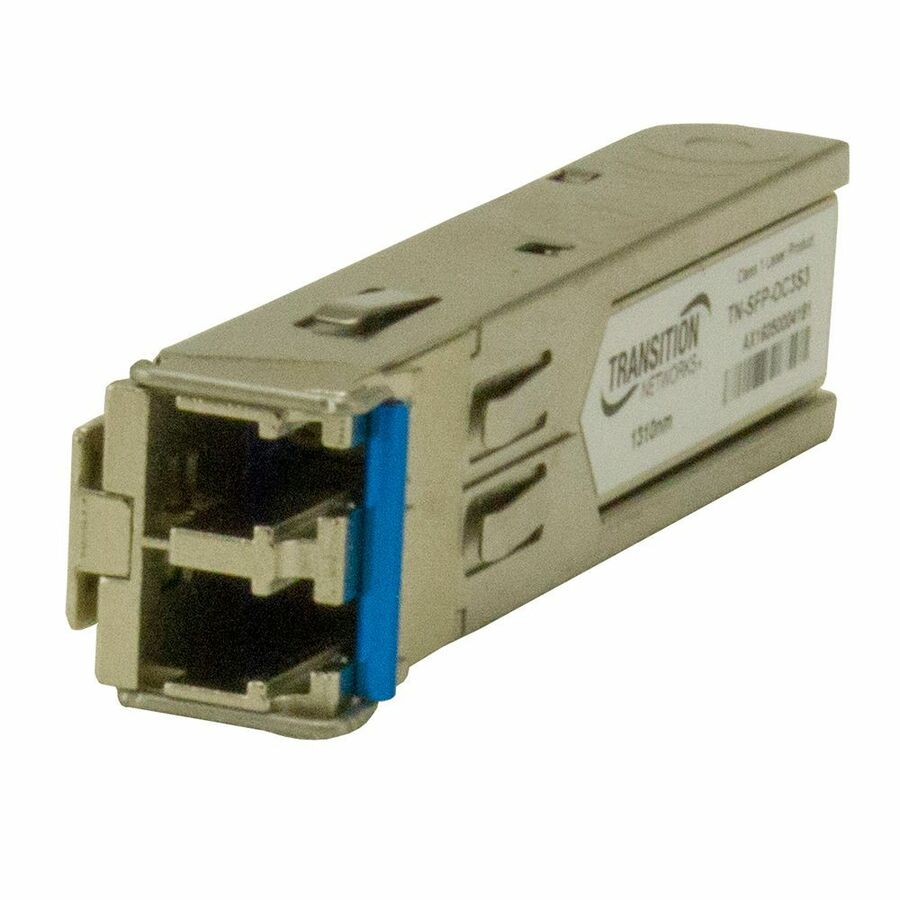

Lantronix TN-SFP-OC3Sx Series 100Base-FX/OC-3 1310nm single-mode LC SFP module

Lantronix TN-SFP-OC3S3 — TN-SFP-OC3Sx Series 100Base-FX/OC-3 SFP 30 km

Name: Lantronix TN-SFP-OC3S3 — TN-SFP-OC3Sx Series 100Base-FX/OC-3 SFP 30 km
Brand: Lantronix
SKU: TN-SFP-OC3S3
Price: 180.96 USD
Availability: BackOrder

Lantronix|

MPN: TN-SFP-OC3S3

UPC: 648177027286

Available on Backorder

$180.96$269.50

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

1 x LC 100Base-FX/OC-3 Network interface for optical fiber links
1310nm single mode optics with [30 km/18.6 mi.] reach
20.0 dB link budget for the TN-SFP-OC3S3 configuration
Digital Diagnostic Function included in the TN-SFP-OC3Sx Series features
Hot-Pluggable SFP Footprint Optical Transceiver form factor
3.3V power input with 0.66 Watts power consumption
SFP Multi-Sourcing Agreement (MSA) compliance

Lantronix TN-SFP-OC3S3 is a TN-SFP-OC3Sx Series SFP module for 100Base-FX/OC-3 single-mode LC fiber links. The series features a Hot-Pluggable SFP Footprint Optical Transceiver, Digital Diagnostic Function and SFP Multi-Sourcing Agreement (MSA) compliance. This configuration uses 1310nm optics with [30 km/18.6 mi.] reach and a 20.0 dB link budget. Applications include Fast Ethernet / OC3 switches and routers, xDSL applications, and Metro Edge Switching. The module uses 3.3V power input, consumes 0.66 Watts, and is backed by a Lifetime warranty.

Ideal For

Fast Ethernet / OC3 switches and routers
xDSL applications
Metro Edge Switching
Optical network and data networking applications

Specifications

Series	TN-SFP-OC3Sx Series
Standard	IEEE 802.3
Dimensions	0.52” [13 mm] x 2.18” [55 mm] x 0.33” [8 mm]
Wavelength	1310nm
Form Factor	Hot-pluggable
Link Budget	20.0 dB
Power Input	3.3V
Limited Warranty	Lifetime
Power Consumption	0.66 Watts
Network Technology	100Base-FX/OC-3
Fiber Mode Supported	Single-mode
Media Type Supported	Optical Fiber
Operating Temperature	-10°C to 85°C
Interfaces Ports Details	1 x LC 100Base-FX/OC-3 Network
Maximum Distance Supported	30 km/18.6 mi.

Documentation

Additional pdf1

TN-SFP-OC3Sx Series Datasheet (241.58 KB)

TN-SFP-xxx User Guide Rev G

Frequently Asked Questions

What series is TN-SFP-OC3S3 in?▾

It is part of the Lantronix TN-SFP-OC3Sx Series.

What network type and connector does this SFP use?▾

TN-SFP-OC3S3 is specified for 100Base-FX/OC-3 single mode (LC) with DMI.

What distance does TN-SFP-OC3S3 support?▾

The part row lists [30 km/18.6 mi.] reach with a 20.0 dB link budget.

Is this SFP hot-pluggable and MSA compliant?▾

Yes. The TN-SFP-OC3Sx Series features include a Hot-Pluggable SFP Footprint Optical Transceiver and compliance with the SFP Multi-Sourcing Agreement (MSA).
