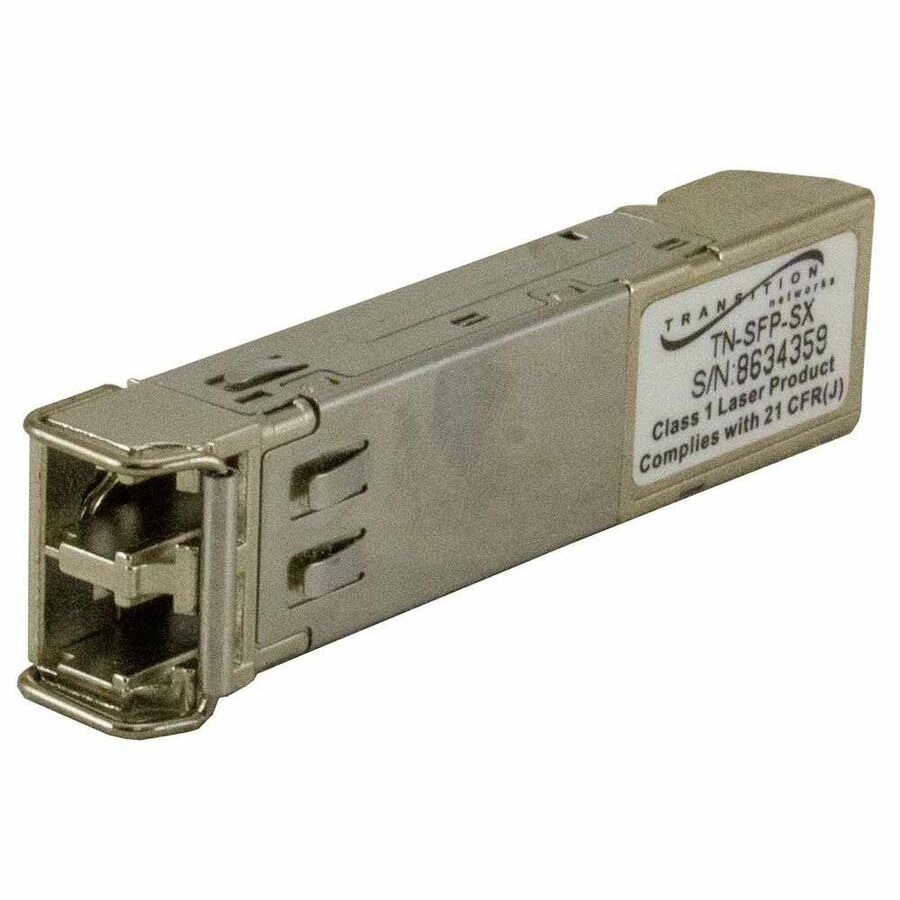

Lantronix TN-SFP-SX-PK — TN-SFP-SX Series 1000Base-SX SFP Pack of 20
$771.50$1,149.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 20 TN-SFP-SX modules in one pack
- 1000Base-SX 850nm multimode fiber with LC connectivity
- 220 m/722 ft. reach on 62.5/125 μm fiber with 8.0 dB link budget
- 550 m/1804 ft. reach on 50/125 μm fiber with 8.0 dB link budget
- Hot-pluggable SFP footprint optical transceiver
- Digital Diagnostic Function
- SFP Multi-Sourcing Agreement (MSA) compliance
TN-SFP-SX-PK supplies 20 TN-SFP-SX Series SFP modules. Each module is an MSA compliant 1000Base-SX 850nm multimode LC optical transceiver with a hot-pluggable SFP footprint and Digital Diagnostic Function. The TN-SFP-SX-PK listing states 220 m/722 ft. on 62.5/125 μm fiber and 550 m/1804 ft. on 50/125 μm fiber, each with an 8.0 dB link budget. Lantronix lists applications for the TN-SFP-SX Series in Gigabit Ethernet switches and routers, Fiber Channel switch infrastructure, xDSL applications and Metro Edge Switching.
Ideal For
- Gigabit Ethernet switches and routers
- Fiber Channel switch infrastructure
- xDSL applications
- Metro Edge Switching
Specifications
| Standard | IEEE 802.3 |
| Warranty | Lifetime |
| Data Rate | 1.25Gbps |
| Dimensions | 0.52” [13 mm] x 2.18” [55 mm] x 0.33” [8 mm] |
| Fiber Mode | Multi-mode |
| Wavelength | 850nm |
| Form Factor | Hot-pluggable |
| Power Input | 3.3V |
| Compatibility | MSA Compliant |
| Connector Type | LC |
| Packaged Quantity | 20 |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-SX |
| 50 125 μM Distance | 550 m/1804 ft |
| 625 125 μM Distance | 220 m/722 ft |
| Operating Temperature | -10°C to 85°C |
| 50 125 μM Link Budget | 8.0 dB |
| 625 125 μM Link Budget | 8.0 dB |
Frequently Asked Questions
What is included with TN-SFP-SX-PK?▾
TN-SFP-SX-PK includes a pack of 20 TN-SFP-SX Series modules.
What fiber type and connector does it use?▾
It uses 1000Base-SX 850nm multimode fiber with LC connectivity.
What distances are listed for this SFP?▾
The listing states 220 m/722 ft. on 62.5/125 μm fiber and 550 m/1804 ft. on 50/125 μm fiber, each with an 8.0 dB link budget.
Is the TN-SFP-SX Series MSA compliant?▾
Yes. The TN-SFP-SX Series is compliant with the SFP Multi-Sourcing Agreement (MSA).
