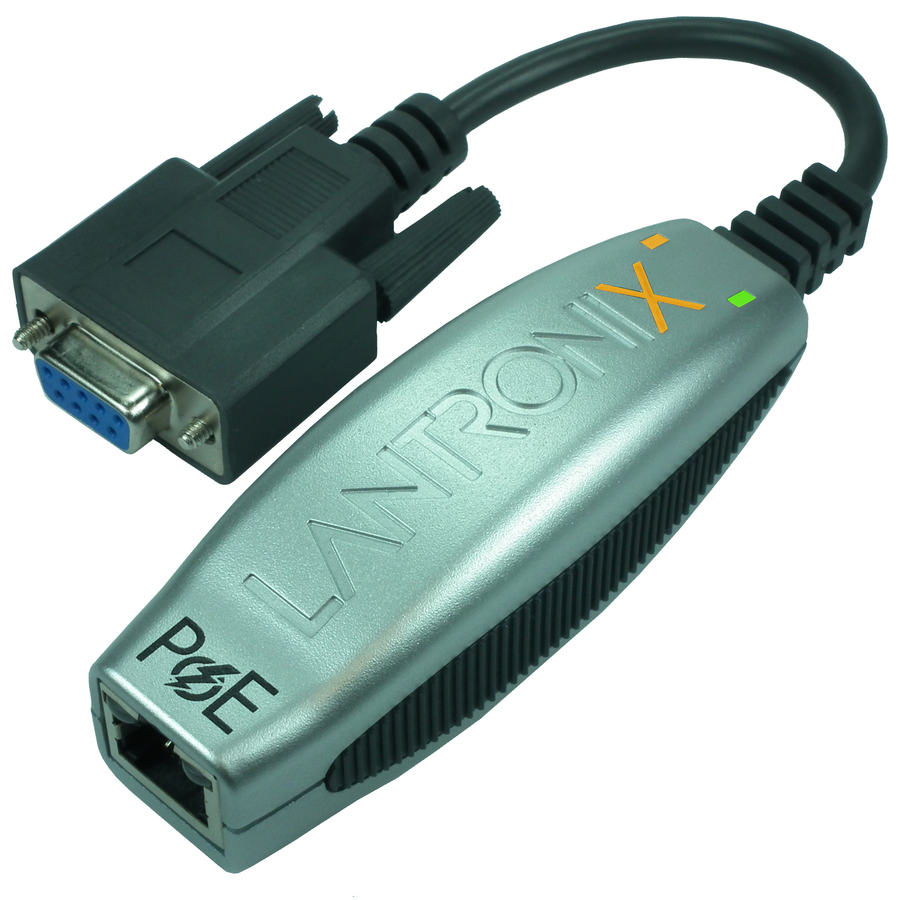

Lantronix XDT10P0-01-S — xDirect PoE Device Server
$145.54
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 1 DB9F serial port supports RS-232, RS-422 or RS-485 modes
- 10/100 Mbps RJ-45 Ethernet provides 10Base-T /100Base-T auto-sensing
- 300bps to 921.6 Kbps serial data rate
- 128/192/256-bit AES Encryption
- Built-in web server enables configuration from a standard web browser on a PC, smartphone or tablet
- PoE and power inputs include 5V at mini-USB-B jack and 5-15 VDC at DB9F pin 9
- No power supply included per the XDT10P0-01-S part-table description
Lantronix xDirect PoE provides serial-to-Ethernet connectivity for a device or machine with a serial interface. This XDT10P0-01-S configuration is a single-port RS232/422/485 10/100 device server and is listed with no power supply. The xDirect design includes an integrated 10/100 Ethernet port and serial cable in a space saving form factor. The device server application includes a full IP stack and web server. Configuration options include Web Browser, Telnet Client and Serial Terminal. Security includes 128/192/256-bit AES Encryption, and the PoE model is specified for -40° to 70° C operating temperature.
Ideal For
- Connect a serial device or machine to a 10/100 Ethernet network
- Provide network access for RS-232, RS-422 or RS-485 serial equipment
- Configure a device server through a Web Browser, Telnet Client or Serial Terminal
- Deploy a compact device server where PoE power is required
Specifications
| Cpu | Based on DSTni-EX Enhanced 16-bit x86 Architecture |
| Memory | 256 KB SRAM, 1 MB Flash |
| Weight | 0.068 Kg (0.15 lbs) |
| Baud Rate | 300bps to 921.6 Kbps |
| Protocols | UDP, TCP, ARP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, HTTP, Telnet Com Port Control |
| Stop Bits | 1 or 2 |
| Characters | 7 or 8 data bits |
| Flow Control | CTS/RTS, XON/XOFF |
| Serial Modes | RS-232, RS-422* or RS-485* (2 and 4 wire support) |
| Serial Ports | 1 |
| AES Encryption | 128/192/256-bit AES Encryption |
| Ethernet Ports | 1 |
| Ethernet Speed | 10/100 Mbps |
| LED Indicators | Power/Status, Link, Activity, Serial RX Activity & TX Activity |
| Control Signals | CTS/RTS (Hardware) |
| Windows Support | Windows 7/Vista/XP/2008 Server/2003 Server (32-bit and 64-bit versions) |
| Serial Connector | DB9F (DCE Pinned) |
| Relative Humidity | 0% to 90% non-condensing |
| Ethernet Connector | RJ-45 |
| Ethernet Interface | 10Base-T /100Base-T (Auto-sensing) |
| Shipping Dimensions | 180 x 130 x 53 mm (LxWxH) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Configuration Options | Web Browser, Telnet Client, Serial Terminal |
| Operating Temperature | -40° to 70° C (-40° to 158° F), PoE model |
| Serial Port Protection | 15 KV ESD protection on RS-232 and RS-422/485 transceivers |
| Ethernet Port Isolation | 1500 VAC isolation shielded |
| Db9f Pin 9 Input Voltage | 5-15 VDC at DB9F pin 9 |
| Mini-usb-b Input Voltage | 5V at mini-USB-B jack |
| Power Consumption With PoE++ | 2.0W max with PoE |
| Power Consumption Without PoE++ | 1.3W max w/o PoE |
Frequently Asked Questions
Does XDT10P0-01-S include a power supply?▾
No. The Lantronix part-table description for XDT10P0-01-S states No Power Supply, RoHS.
What serial interfaces does this xDirect PoE model support?▾
It supports RS232, RS422 or RS485 modes, with 2 and 4 wire support for RS485.
What Ethernet interface does it provide?▾
It uses a 10Base-T /100Base-T auto-sensing Ethernet interface with 10/100 Mbps speed and an RJ45 connector.
How is the unit configured?▾
Configuration options are Web Browser, Telnet Client and Serial Terminal. The xDirect also includes a built-in web server.
