Lantronix xDirect Single-Port Serial-to-Ethernet Device Servers
Pocket-size single-port serial-to-Ethernet device servers that sit directly on a device's DB9 port and put RS232, RS422 or RS485 equipment on a 10/100 network, with USB, pin-9 or PoE power.
From $111.94
Overview
About the Lantronix xDirect

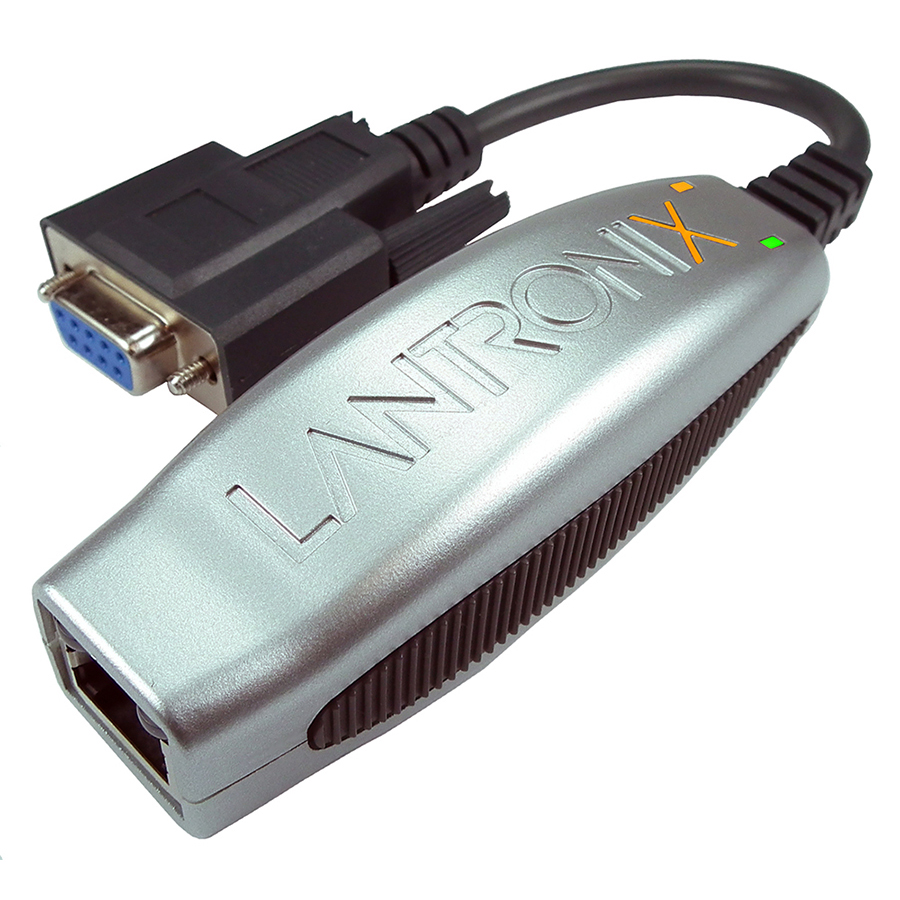

xDirect (also written XDirect; part numbers start with XDT) is a compact in-line device server that connects one serial device to Ethernet with no rack, DIN rail or separate enclosure. It plugs straight onto the equipment's serial port through a DCE-pinned DB9 female connector and presents the data over a 10/100 RJ-45 port, using a full IP stack and built-in web server for configuration from a PC, phone or tablet. Lantronix cites its use in a hospital IoT project linking bedside monitoring equipment to the network.
The serial port runs from 300 bps to 921.6 Kbps with CTS/RTS or XON/XOFF flow control. xDirect232 is RS232 only, while xDirect485 and the PoE model add RS422 and 2- or 4-wire RS485. Data can be secured with 128, 192 or 256-bit AES encryption. Power comes from 5 V at a mini-USB-B jack, 5-15 VDC on DB9 pin 9, or 802.3af PoE on the PoE model, with 1.3 W maximum draw (2.0 W with PoE). The serial port has 15 kV ESD protection and the Ethernet port 1500 VAC isolation.
Non-PoE models operate from -40°C to 85°C and the PoE model from -40°C to 70°C; the included AC adapter is rated 0°C to 40°C. Configuration is via web browser, Telnet or serial terminal, and Com Port Redirector software presents the unit as a virtual COM port to Windows applications.
Key capabilities
- Mounts on the DB9 port
- The DCE-pinned DB9F connector plugs straight onto the host device, so no extra enclosure or mounting hardware is required.
- Up to 921.6 Kbps
- Serial rates from 300 bps to 921.6 Kbps with 7 or 8 data bits and hardware or software flow control.
- Three power options
- 5 V via mini-USB-B, 5-15 VDC from DB9 pin 9, or 802.3af PoE on the XDT10P0-01-S, drawing 2.0 W maximum.
- AES encryption
- 128, 192 or 256-bit AES encryption protects serial data on the network, so device traffic does not cross the LAN in clear text.
- -40°C to 85°C rating
- Non-PoE models operate from -40°C to 85°C and the PoE model from -40°C to 70°C; the xDirect is UL rated to 75°C.
- Virtual COM port
- Com Port Redirector lets existing Windows software reach the serial device as if it were on a local COM port.
How to choose the right xDirect part number

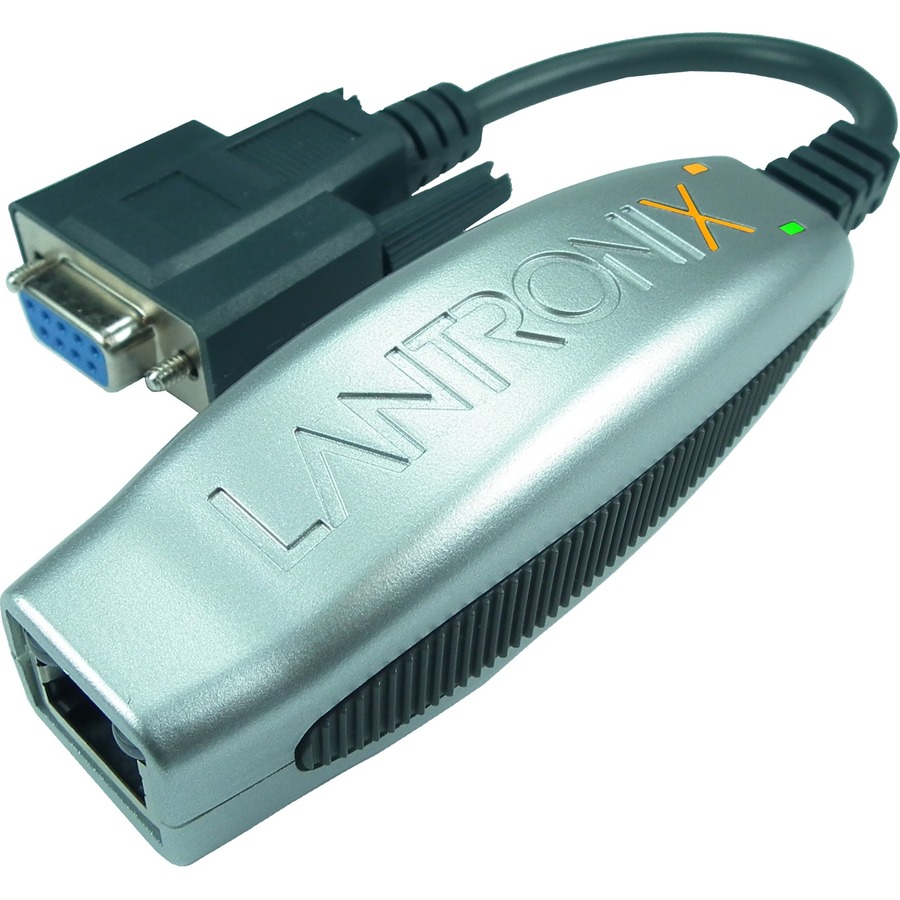

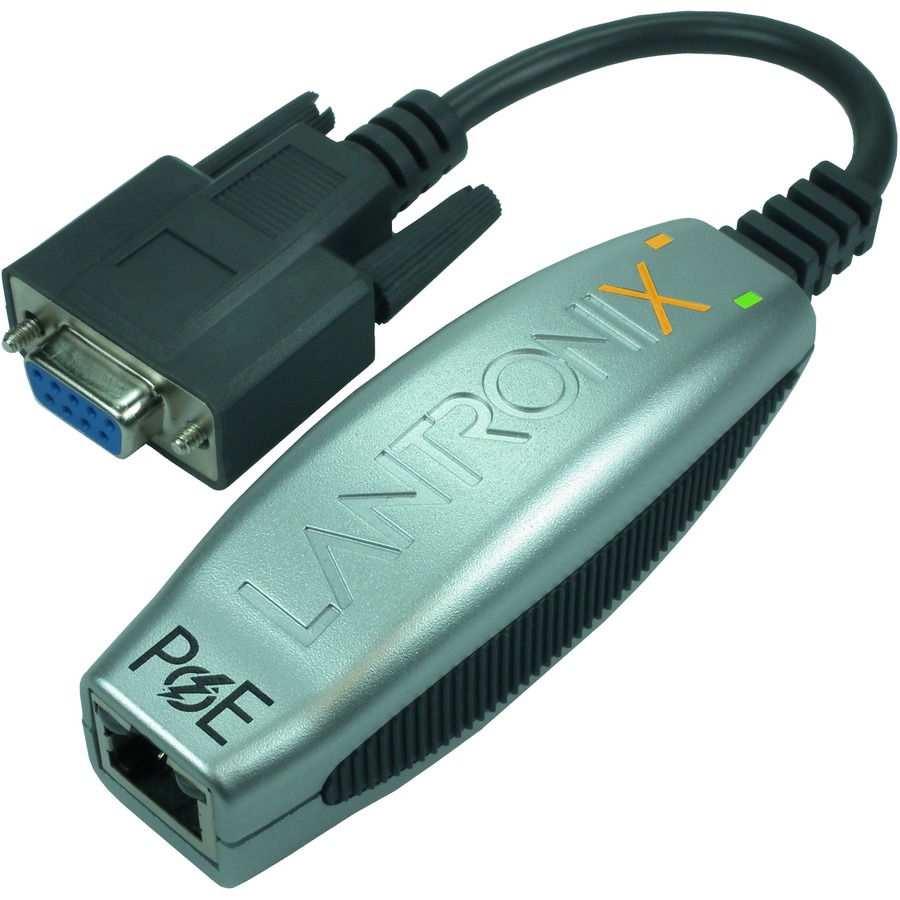

Pick by serial standard and power source. XDT2321002-01-S (xDirect232) supports RS232 only and ships with a 100-240 VAC international power supply and regional adapters. XDT4851002-01-S (xDirect485) adds RS422 and 2- or 4-wire RS485, also with the international supply. XDT10P0-01-S (xDirect PoE) supports RS232/422/485, is powered by 802.3af PoE and ships without a power supply. The ACC-520-0180-00 5 VDC mini-USB-B adapter with four regional plugs is available as a spare or for the PoE model.
Configure & order
Find your xDirect part number
Every orderable xDirect configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the xDirect, organized by what it does — power — each with why you'd add it.
Power
1 item
Power Supply
ACC-520-0180-00
Power supply accessory with 100-240VAC, 50-60Hz input and 5VDC 1A output. It uses a Mini USB-B right angle connector and includes 4 regional adapters.
$37.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the xDirect. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the xDirect is used
- Networking bedside medical monitors with serial outputs
- Remote access to RS485 instruments and controllers
- Moving legacy serial printers and scales onto Ethernet
- PoE-powered serial connections where no outlet exists
xDirect datasheets & documentation
xDirect FAQ
What is the difference between xDirect232, xDirect485 and xDirect PoE?
xDirect232 (XDT2321002-01-S) supports RS232. xDirect485 (XDT4851002-01-S) supports RS232, RS422 and 2- or 4-wire RS485. xDirect PoE (XDT10P0-01-S) supports all three standards and draws power from 802.3af PoE.
How is the xDirect powered?
With 5 V at the mini-USB-B jack, 5-15 VDC on pin 9 of the DB9 connector, or PoE on the PoE model. Maximum consumption is 1.3 W without PoE and 2.0 W with PoE.
What is the maximum serial speed of the xDirect?
300 bps to 921.6 Kbps, with CTS/RTS hardware or XON/XOFF software flow control, 7 or 8 data bits and 1 or 2 stop bits. Parity can be odd, even or none.
What is the xDirect operating temperature range?
-40°C to 85°C for non-PoE models and -40°C to 70°C for the PoE model. The included power supply is rated 0°C to 40°C, so use a suitable supply in extreme environments.
How do I configure an xDirect?
Through its built-in web server in a standard browser, or via Telnet or a serial terminal. DeviceInstaller and Com Port Redirector utilities are available for Windows.
