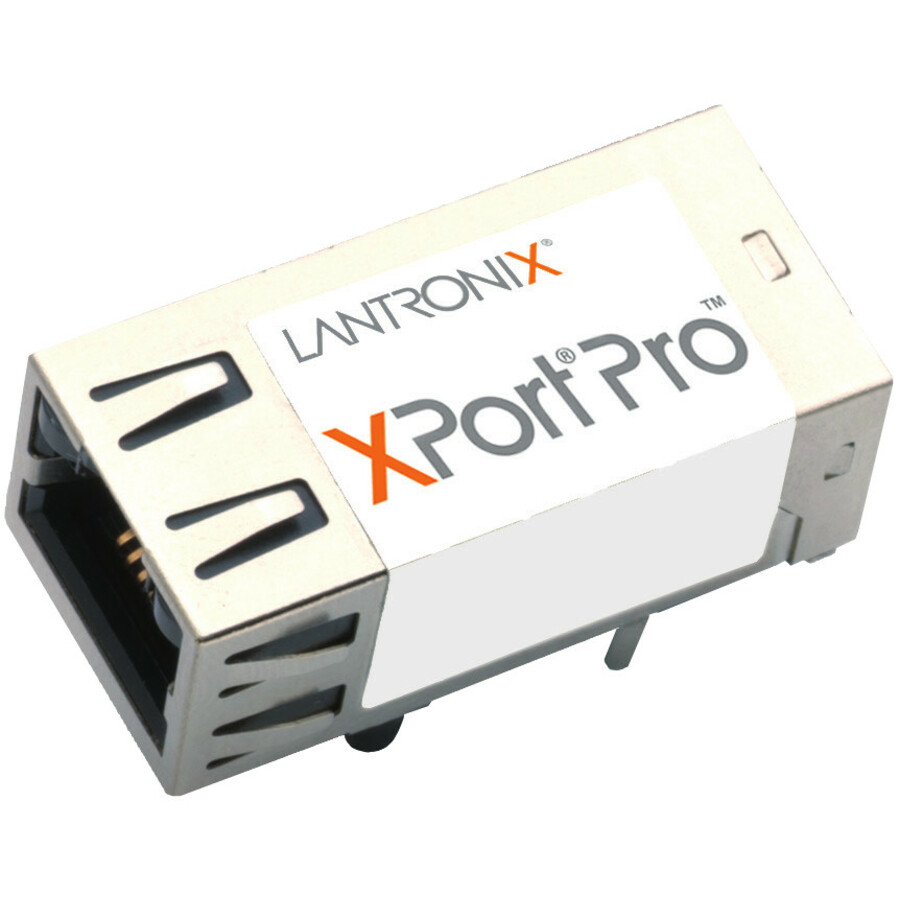

Lantronix XPP100300S-04R — XPort Pro Linux OS Module
$68.37$69.95
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Linux OS configuration with 16MB SDRAM
- Extended Temperature operation from -40° to 85° C (-40° to 185° F)
- 1 RJ-45 10/100Base-TX LAN interface for data networking
- Serial data rates software selectable from 300 to 921kbps
- Security with SSLv3 and SSHv2 Client & Server, selectable 128/256/512/1024 Bit certificates, AES, 3DES and RC4 encryption
- Management through Internal Web Manager, CLI, XML Configuration Records, DeviceInstaller software and firmware upgrades via FTP, Web, and Serial Port
- Footprint compatibility with the popular XPort in an integrated RJ-45 package
The Lantronix XPort Pro is a self-contained embedded networking module for IoT edge application deployment. This XPP100300S-04R configuration is listed with Linux OS, encryption, Extended Temperature operation and 16MB SDRAM. XPort Pro provides an integrated RJ45 package with 10Base-T and 100Base-TX Link support. Its serial interface supports software selectable data rates from 300 to 921kbps, 7 or 8 data bits, Odd, Even or None parity and 1 or 2 stop bits. Management options include Internal Web Manager, CLI over Serial Ports, Telnet or SSH, XML Configuration Records via CLI or FTP, DeviceInstaller software and firmware upgrades via FTP, Web and Serial Port.
Ideal For
- Adding Ethernet networking to embedded products
- Running Linux applications on an IoT edge device
- Serial-to-Ethernet connectivity for devices using 300 to 921kbps serial data rates
- Designs that need footprint compatibility with the popular XPort
Specifications
| CLI | Over Serial Ports, Telnet or SSH |
| Width | 16.25 mm (0.64 in.) |
| Height | 13.5 mm (0.53 in.) |
| Length | 33.9 mm (1.33 in.) |
| Parity | Odd, Even, None |
| Series | XPort Pro |
| Weight | 9.6 g (0.34 oz) |
| Storage | -40° to 85° C (-40° to 185° F) |
| Firmware | Upgradeable via FTP, Web, and Serial Port |
| LAN Port | 1 x RJ-45 10/100Base-TX LAN |
| Security | SSLv3 and SSHv2 Client & Server, Selectable 128/256/512/1024 Bit certificates |
| Connector | RJ-45 |
| Data Bits | 7 or 8 data bits |
| Stop Bits | 1 or 2 |
| Encryption | AES, 3DES and RC4 |
| Management | Internal Web Manager (SSL Option for secure login) |
| Flow Control | XON/XOFF (software), CTS/RTS (hardware) |
| Extended Temp | -40° to 85° C (-40° to 185° F) |
| Input Voltage | 3.3 VDC |
| Io Max Rating | 3.3v |
| Authentication | SHA-1, MD5, Base-64 User Access Lists |
| Commercial Temp | 0° to 70° C (32° to 158° F) |
| On-board Memory | 16MB SDRAM |
| Programmable Io | 3 PIO pins (software selectable) |
| Operating System | Linux OS |
| Application Usage | Data Networking |
| Network Interface | 10Base-T and 100Base-TX Link |
| Serial Data Rates | Software selectable data rates from 300 to 921kbps |
| Modem Control Signals | CTS, RTS, DTR/DCD |
| Xml Configuration Records | Via CLI or FTP |
Frequently Asked Questions
Does this XPort Pro SKU run Linux or Evolution OS?▾
This SKU is listed in the Linux OS group. The XPort Pro series can run Linux or Lantronix Evolution OS.
What network interface does XPP100300S-04R provide?▾
It provides 1 x RJ-45 10/100Base-TX LAN interface for data networking.
What is the extended temperature range?▾
The Extended Temp specification is -40° to 85° C (-40° to 185° F).
How is firmware upgraded?▾
Firmware is upgradeable via FTP, Web, and Serial Port.
