Lantronix XPort Pro Embedded Linux Ethernet Device Server Modules
XPort Pro is an embedded serial-to-Ethernet device server built into an RJ45 jack, running Linux or Lantronix Evolution OS so OEMs can add 10/100 networking and run custom applications on the device itself.
From $61.91
Overview
About the Lantronix XPort Pro
XPort Pro (also written XPortPro) is in production but carries Lantronix's NRFND status (not recommended for new designs). It packs a 32-bit processor, memory, a 10/100 Ethernet interface and a serial interface inside a 33.9 x 16.25 x 13.5 mm RJ45 connector housing. It is footprint compatible with the original XPort, so existing XPort board designs can move up to more processing and Linux without a new layout. Lantronix also points designers to the newer XPort EDGE gateway.
The serial port runs at software-selectable rates from 300 to 921 kbps with RTS/CTS and DTR/DCD modem control and 3 programmable I/O pins. Network protocols include TCP/IP, UDP, DHCP, SNMPv2, FTP, HTTP, SMTP, SSHv2 and SSLv3. Security covers AES, 3DES and RC4 encryption with SHA-1 and MD5 authentication. The module runs from 3.3 VDC and operates from -40 to 85°C in the extended temperature versions offered here.
The Linux option includes built-in IPv6 and lets developers deploy custom applications using the large libraries available for Linux, supported by a Linux SDK and a VMware image. Evolution OS has its own SDK. Management tools include an internal web manager with SSL login, a CLI over serial, Telnet or SSH, XML configuration records and DeviceInstaller, with firmware upgrades via FTP, web or serial port. Lantronix has already completed critical agency certification.
Key capabilities
- Linux or Evolution OS
- Choose Linux for custom edge applications using standard libraries and built-in IPv6, or Lantronix Evolution OS for configuration-driven device server deployments.
- Drop-in XPort footprint
- XPort Pro is footprint compatible with the original XPort, so existing board layouts can gain Linux capability and more memory without redesign.
- Integrated RJ45 package
- Processor, memory and Ethernet sit inside a 33.9 mm RJ45 jack weighing 9.6 g, already EMC, EMI and RoHS compliant.
- Encrypted serial tunneling
- SSHv2 and SSLv3 client and server with AES, 3DES and RC4 encryption secure the serial data stream and management sessions.
- Extended temperature range
- All listed XPort Pro modules are extended temperature parts, rated from -40 to 85°C operation and storage.
How to choose the right XPort Pro part number
Pick the operating system first. Evolution OS modules are XPP1002000-02R (bulk, 50-unit minimum) and XPP100200S-02R (sample). Linux modules are XPP1003000-04R (bulk, 50-unit minimum) and XPP100300S-04R (sample). All four are extended temperature with encryption and 16 MB SDRAM. For development, XPPDK1000-EVO-02 and XPPDK1000-LNX-02 kits include a module with the matching OS, while the XP10010NMK-01 Universal Demo Board is sold without a module.
Configure & order
Find your XPort Pro part number
Every orderable XPort Pro configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
XPP1002000-02R
$61.91
Ships on backorder
XPP100200S-02R
$66.33
Ships on backorder
XPP1003000-04R
$61.91
Ships on backorder

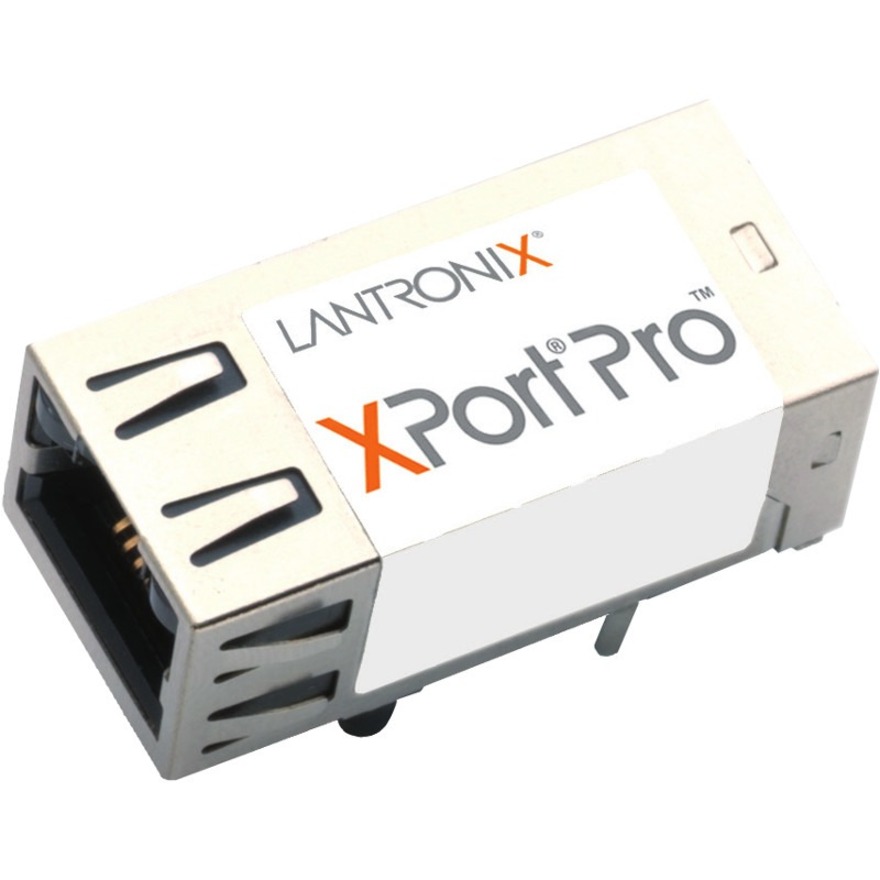

XPP100300S-04R
$69.95
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the XPort Pro, organized by what it does — evaluation & development kits — each with why you'd add it.
Evaluation & development kits

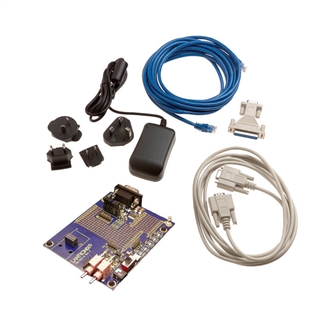

3 itemsUniversal Demo Board
XP10010NMK-01 **
IPv6 Ready, Linux Networking Module For M2M Application Development The XPort® Pro Lx6 is a member of Lantronix XPort Pro family of powerful and advanced embedded Linux based…
XPort Pro Evolution Development Kit
XPPDK1000-EVO-02 ***
Robust Processing Power & Flexible Linux Computing for IoT Edge Application Deployment The XPort Pro is Lantronix’ most powerful, self-contained embedded networking module.
XPort Pro Linux Development Kit
XPPDK1000-LNX-02 ***
Robust Processing Power & Flexible Linux Computing for IoT Edge Application Deployment The XPort Pro is Lantronix’ most powerful, self-contained embedded networking module.
Compatibility taken from the Lantronix part-number tables for the XPort Pro. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the XPort Pro is used
- Adding Ethernet to serial instruments and controllers
- Running custom Linux applications on IoT edge devices
- Upgrading existing XPort designs without board changes
- Secure remote access to serial equipment over SSH
XPort Pro datasheets & documentation
XPort Pro FAQ
Is the XPort Pro discontinued?
No, but Lantronix lists XPort Pro as In Production-NRFND, meaning it is still produced but not recommended for new designs. Lantronix also directs designers to the XPort device server and the newer XPort EDGE gateway.

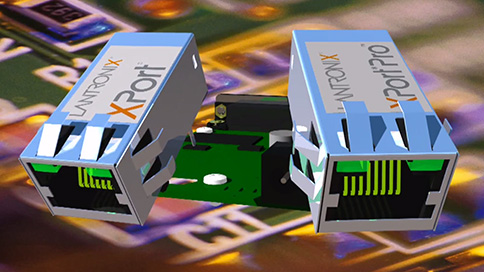

What is the difference between XPort and XPort Pro?
XPort Pro is footprint compatible with XPort, and Lantronix describes it as its most powerful self-contained embedded networking module. It has a high-performance 32-bit processor, up to 16 MB SDRAM and 16 MB flash, and runs Linux or Evolution OS for on-device applications.
Which XPort Pro part number runs Linux?
XPP1003000-04R (bulk) and XPP100300S-04R (sample) run Linux. XPP1002000-02R and XPP100200S-02R run Evolution OS. The XPPDK1000-LNX-02 and XPPDK1000-EVO-02 development kits each include a module with the matching operating system.
What serial speeds does XPort Pro support?
Data rates are software selectable from 300 to 921 kbps, with 7 or 8 data bits, odd, even or no parity, and 1 or 2 stop bits. Flow control is XON/XOFF or CTS/RTS.
What power does XPort Pro require?
XPort Pro runs from a 3.3 VDC input, and its I/O pins have a 3.3 V maximum rating. Regulatory approvals include FCC Part 15 Subpart B Class B, EN55022, EN55024, AS/NZS CISPR22 and VCCI, which reduces certification work for the host product.
