Critical Asset Monitoring & Telematics
Lantronix FOX Series Gateways for Critical Asset Monitoring
These FOX gateways monitor and control stationary infrastructure such as generators, boilers, fuel tanks and air compressors. Every unit in this family has an RS-485 port, a backup battery and 4G LTE for remote sites.
From $171.04
Overview
About the Lantronix FOX Series for Critical Asset Monitoring
The FOX Series for Critical Asset Monitoring (FOX3 and FOX4, also written FOX 3 and FOX 4) puts a cellular edge gateway next to equipment that has no reliable network of its own: backup generators, HVAC plant and boilers, fuel and tank level systems and air compressors. It reads machine data over Modbus, BACnet, RS-232/485, CAN and analog/digital I/O, applies local logic and reports alarms and trends to the cloud, cutting site visits and catching faults before they cause downtime.
All five gateway part numbers in this family include one RS-232 and one RS-485 port, three user-configurable digital/analog I/Os, a predefined ignition input, I2C, 1-Wire and an internal backup battery. Cellular is 4G LTE-M/NB-IoT or LTE Cat-1, with 2G fallback on several regional models. Inputs run from 10.8 to 60 VDC, idle draw is under 1 mA at 12 VDC in sleep, and the operating range is -40°C to +85°C.
Edge automation runs in PFAL or LUA scripts, so control logic keeps working when the cellular link is down. Data leaves over MQTTS with TLS 1.3 to any cloud, and Lantronix Percepxion handles zero-touch provisioning, health monitoring and API integration across large deployments. FOX4 models add BLE 5.2 for wireless sensors, Wi-Fi 4, secure boot and an ATEC608 secure element.
Key capabilities
- Modbus and BACnet native
- Talks directly to generator controllers, boilers and building systems over Modbus, BACnet and RS-232/485, without a separate protocol gateway.
- RS-485 on every unit
- Each gateway in this family pairs one RS-485 port with one RS-232 port, so multidrop field devices and a local serial console can share one box.
- Local logic, lower data cost
- LUA and PFAL scripts run alarms and automation on the device, reducing cloud dependency and the cellular data sent from each site.
- Backup battery standard
- Every gateway part number includes the internal 1000 mAh rechargeable battery, so the unit can keep reporting after site power fails.
- Built for outdoor cabinets
- Operating temperature is -40°C to +85°C and DC input spans 10.8 to 60 V, suiting generator enclosures and remote equipment shelters.
- Percepxion fleet management
- Percepxion provides zero-touch provisioning of firmware, configuration and certificates, real-time health monitoring and APIs for enterprise analytics.
How to choose the right FOX Series for Critical Asset Monitoring part number
All gateways here are RS-485 builds with a backup battery; they differ by generation, LTE type and region. F33H502S is FOX3 with LTE-M/NB1 and 2G fallback, no BLE or Wi-Fi. F43H502S is FOX4 LTE-M/NB2 with 2G fallback for Europe, North America (AT&T FirstNet), Australia and Singapore; F43H50FS is the worldwide build without 2G fallback; F43H507S is the Japan build. F44H502S is FOX4 LTE Cat-1 for Europe. FOX4 models add BLE 5.2 and Wi-Fi 4. Add FOX4-PROMO for evaluation and 1000xxx licenses for premium features such as LUA (1000104).
Configure & order
Find your FOX Series for Critical Asset Monitoring part number
Every orderable FOX Series for Critical Asset Monitoring configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
F33H502S
$171.04
Ships on backorder
F43H502S
$190.28
Ships on backorder
F43H507S
$176.74
Ships on backorder
F43H50FS
$188.47
Ships on backorder
F44H502S
$187.88
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the FOX Series for Critical Asset Monitoring, organized by what it does — cables & adapters, software, licenses & renewals, evaluation & development kits— each with why you'd add it.
Cables & adapters
8 items
Installation Cable with 6-pin and 4-pin Connectors
60048
FOX3 accessory port installation cable with a 6pin (2x3) connector, 4pin (2x2) UCOM connector, and 6 x open end wires. It is used for connecting and powering an RFID/NFC reader.
$10.30
Ships on backorder
8-pin Installation Cable
60036
1.5 m 8-pin installation cable for the FOX3 and BOLERO40 main port. It includes an 8pin (2×4) connector and 8 x open ends wires.
$13.46
Ships on backorder
Extended installation Cable
60353
Extended installation cable for the FOX3 main port. It includes an 8pin (2x4) connector, a 4pin (2x2) UCOM connector, a 2A-blade-fuse and 6 x open end wires.
$16.25
Ships on backorder
Power and OBDII Connection Cable
60286
FOX3 and BOLERO40 power and OBDII connection cable with an 8pin (2×4) connector, OBDII connector and separate ignition (IGN) wire.
$16.70
Ships on backorder
8-pin Installation Cable with Fuse
60338
FOX3 main port extended installation cable with an 8pin (2x4) connector, 2A-blade-fuse, and open end wires. The cable is 1.5 m long.
$17.25
Ships on backorder
Input/Output extension box
60100
Input/Output extension box accessory for the FOX3 series. It adds a mini-USB port, a 16pin MOLEX connector and 13 additional IOs, and requires cable CA38 to interface with vehicle…
$34.75
Ships on backorder
Service and Power Cable
60044
Service and power cable for FOX3 and BOLERO40 with an 8pin (2x4) Molex connector, car charger, RS-232 female connector, 1.5 m length, and 2A-fuse.
$51.89
Ships on backorder
CAN and IO extension box
60149
CAN and IO extension box for the FOX3 series. It adds CAN-Bus support, D8 digital tachograph support and 8 x IOs, and requires cable CA38 for vehicle signal or external system…
$62.79
Ships on backorder
Software, licenses & renewals
7 itemsEco Drive
1000000
1000000 ECO DRIVE is a software activated premium feature described as ECO DRIVE GPS for the FOX Series for Vehicle Telematics.
LUA
1000104
LUA software activated premium feature for the FOX Series. Lantronix lists LUA as an onboard scripting option for FOX real-time event response.
AES 128
1000002
Software activated premium feature for the FOX Series. It provides Premium Feature 2: AES 128.
Indexed History
1000003
Software-activated premium feature for the FOX Series: Indexed History.
Can Bus
1000005
Software activated premium feature for the FOX Series for Vehicle Telematics. It is listed as CAN BUS, Premium Feature 5: CH/FMS/OBDII.
Evaluation & development kits
1 itemFOX Evaluation Kit
FOX4-PROMO
FOX Evaluation Kit for FOX Series for Vehicle Telematics projects.
$909.33
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the FOX Series for Critical Asset Monitoring. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the FOX Series for Critical Asset Monitoring is used

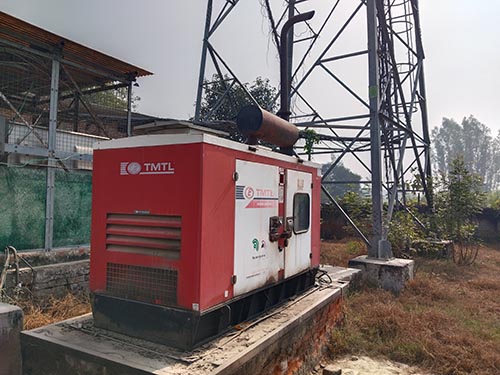

- Remote monitoring of cell-site and standby generators
- HVAC and boiler alarms over BACnet and Modbus

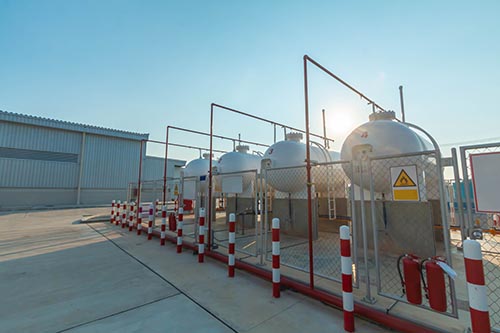

- Fuel and tank level tracking for refill route planning

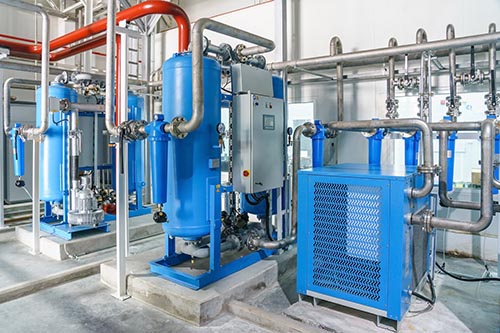

- Air compressor fault detection and energy usage tracking
- Compliance logging for distributed unattended equipment
FOX Series for Critical Asset Monitoring datasheets & documentation
FOX Series for Critical Asset Monitoring FAQ
Which industrial protocols do FOX critical asset gateways support?
Lantronix lists native support for Modbus and BACnet, plus RS-232/485 serial, CAN and analog/digital I/O. Connectivity to the cloud uses MQTTS with TLS 1.3, and the gateway also supports TCP, UDP, HTTP and SMTP over the cellular link.
What is the difference between F43H502S and F43H50FS?
Both are FOX4 LTE-M/NB2 RS-485 units with BLE 5.2, Wi-Fi 4 and a backup battery. F43H502S covers Europe, North America (AT&T FirstNet), Australia and Singapore with 2G fallback. F43H50FS is the worldwide build and has no 2G fallback.
Can FOX run automation logic without a cloud connection?
Yes. PFAL and LUA scripting run on the gateway, so threshold checks, alarms and control actions execute locally. LUA is a software-activated premium feature, part number 1000104, and is included in the FOX4-PROMO evaluation kit.
What temperature range is the FOX gateway rated for?
The FOX operates and stores from -40°C to +85°C. With the backup battery, use is limited to the battery range: discharging from -20°C to +60°C and charging from 0°C to +45°C.
How do I manage hundreds of FOX gateways remotely?
Lantronix Percepxion provides remote zero-touch setup of firmware, configuration and certificates, real-time health monitoring and automation of lifecycle tasks. Lantronix offers a 60-day free trial at percepxion.ai; Lantronix Workbench handles local configuration and script testing.
