Lantronix LS Series Hardened PoE++ Switch with Multi-Gig SFP+

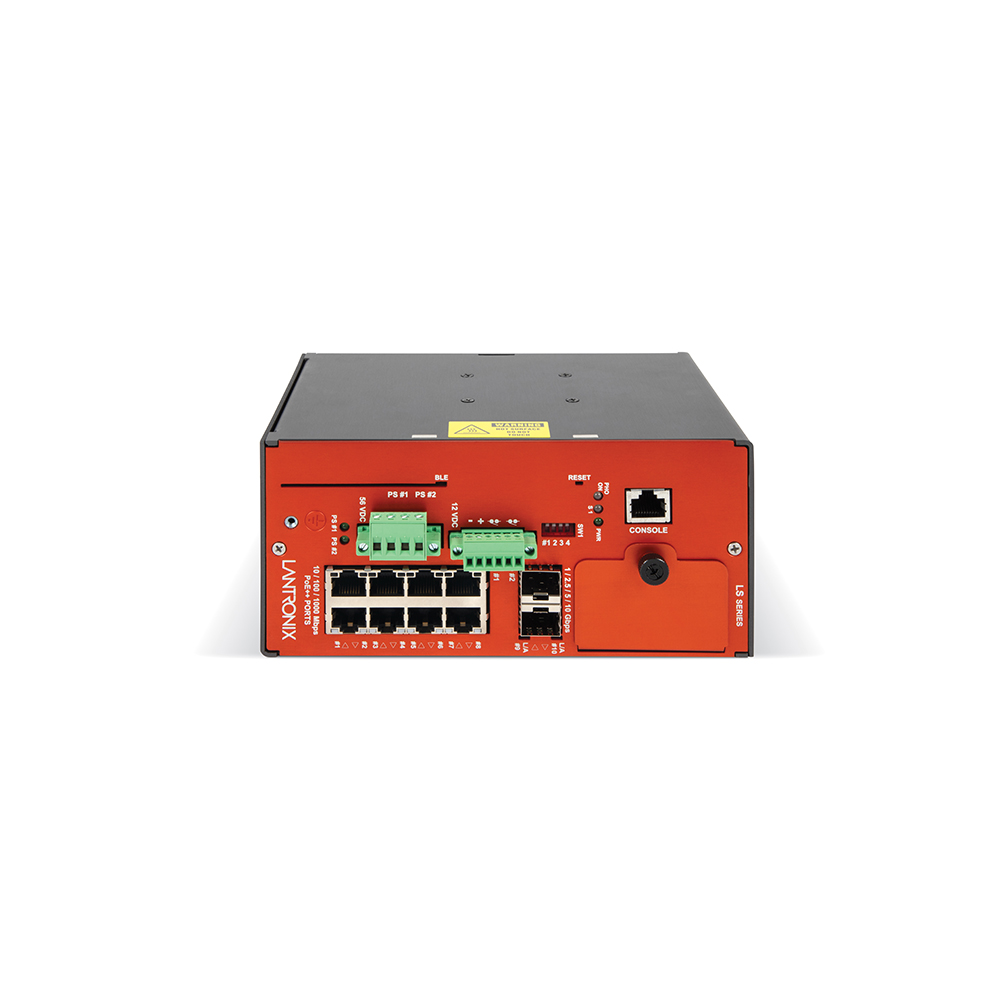

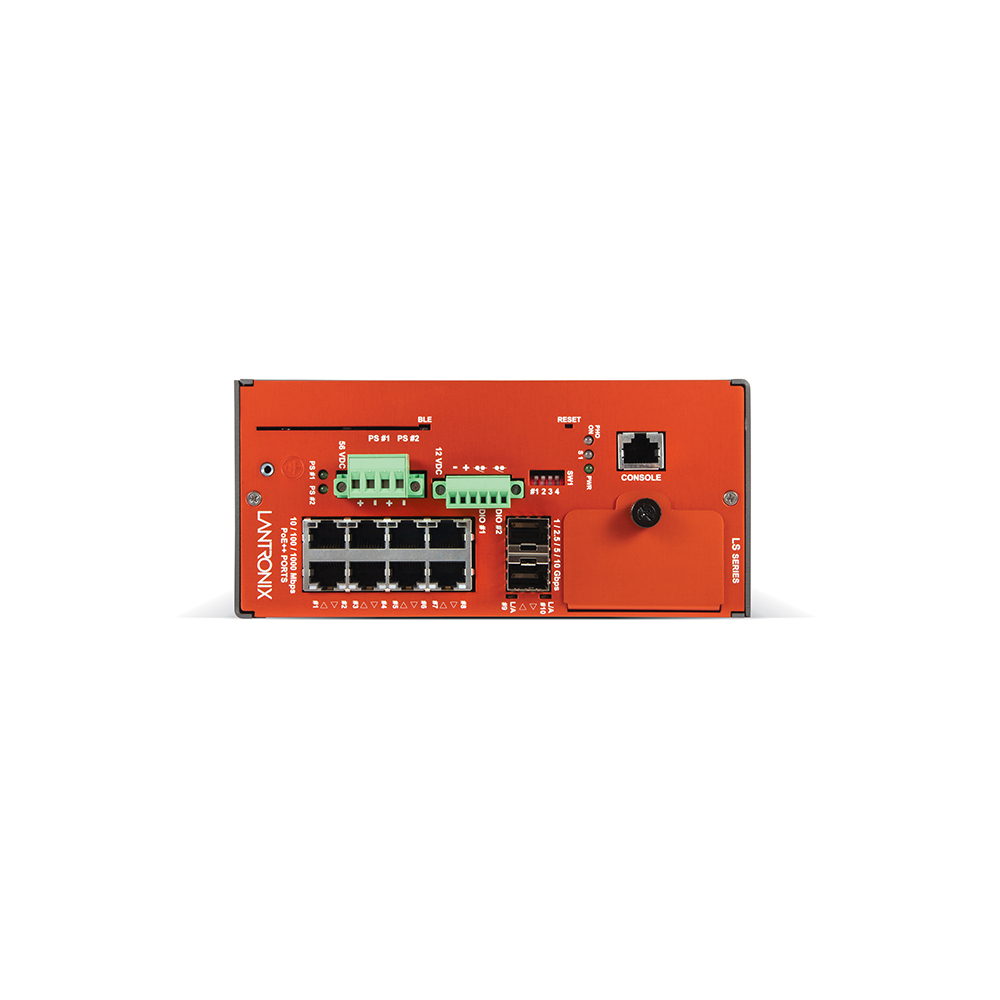

The LS Series LSS2200-8P is a fanless, DIN-rail managed Layer 2+ switch with eight 90 W PoE++ ports, a 720 W budget and two multi-gig SFP+ uplinks, built for powering lighting, cameras and IoT devices across buildings and rugged sites.
From $1,835.00
Overview
About the Lantronix LS Series
The LSS2200-8P (also written LSS 2200-8P) is the switch in Lantronix's LS Series. It is designed to sit close to the devices it powers, distributed throughout commercial buildings or in rugged environments, where its small footprint and hardened rating matter. Eight 10/100/1000Base-T ports deliver full IEEE 802.3bt power at up to 90 W each, and the 720 W budget covers all eight ports at 90 W simultaneously, enough for LED lighting and high-power cameras.

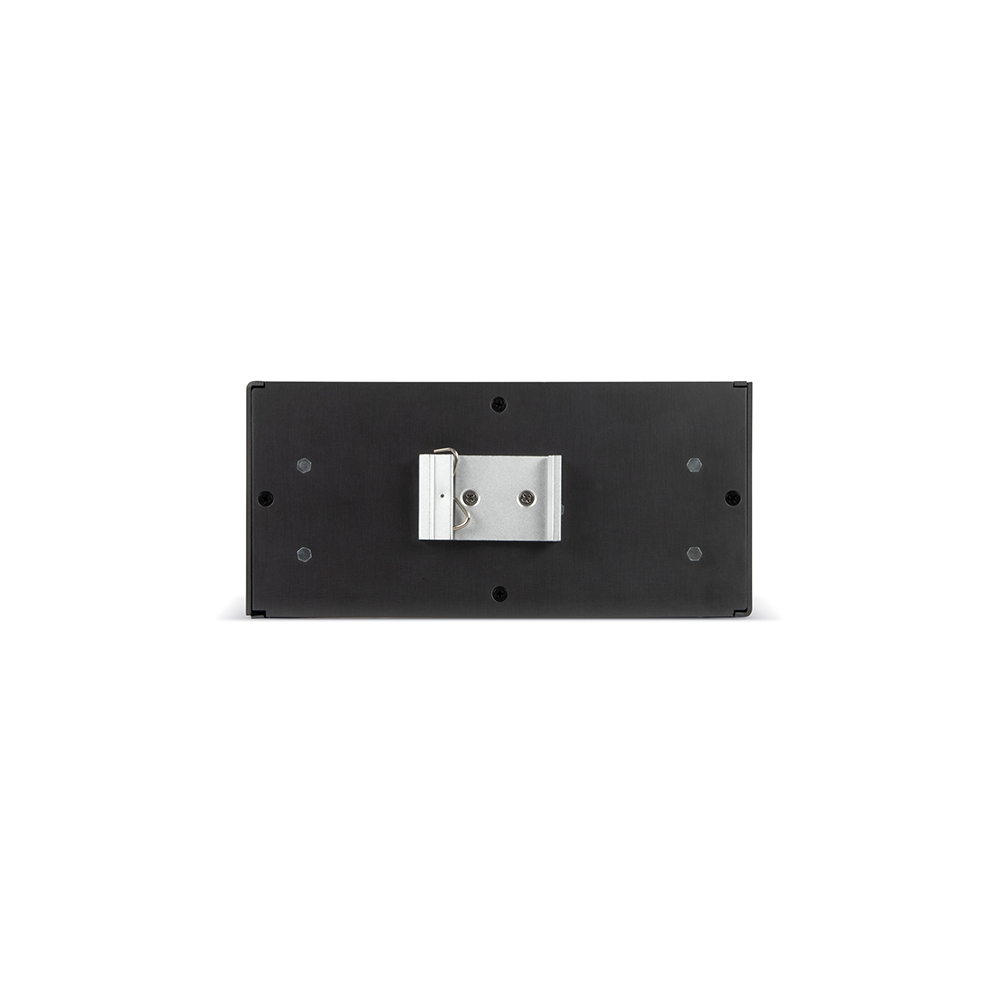

Two SFP+ slots run at 10G, 5G, 2.5G or 1G for fiber uplinks, with a 16K MAC table and full line-rate, non-blocking switching. The switch is fanless, rated -40°C to +65°C and IP31, mounts on DIN rail (wall bracket optional), and takes 46-56 VDC on redundant inputs. Two programmable, isolated digital inputs/outputs include a 12 VDC power output.

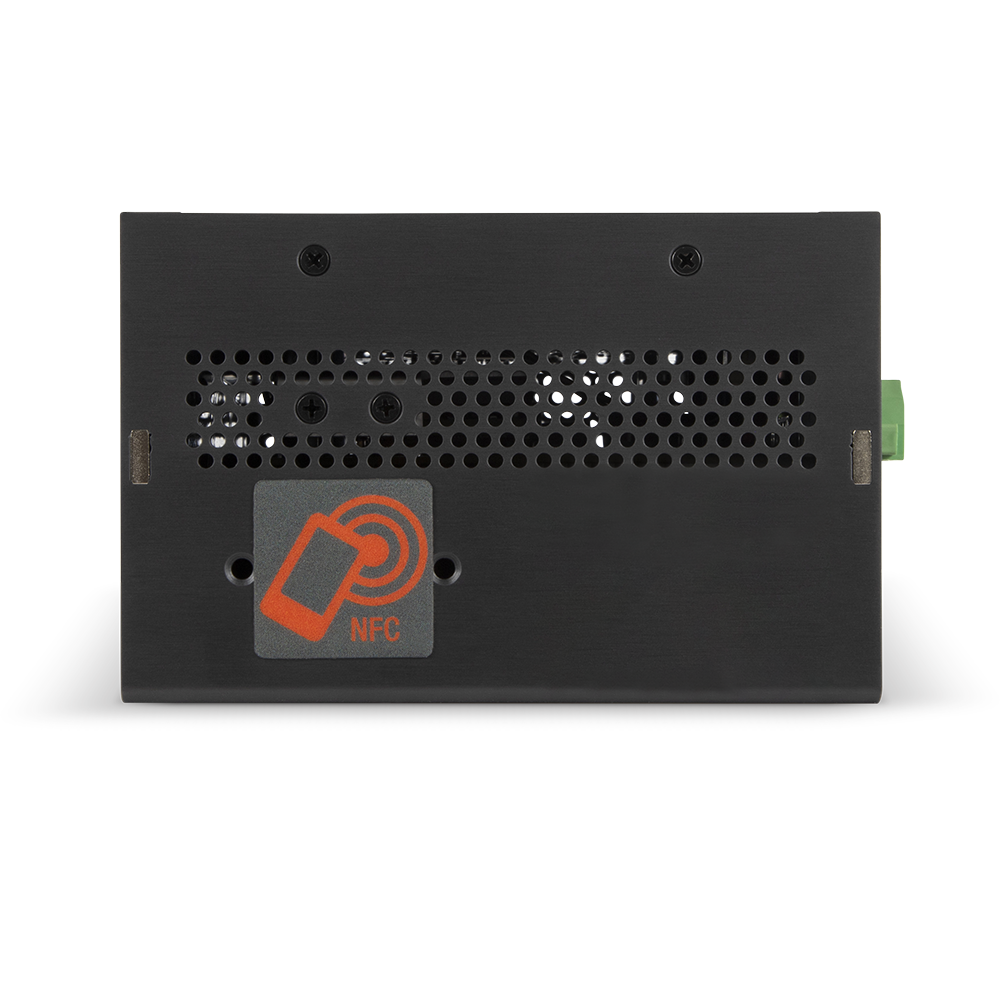

Installers can load a configuration from the mobile app over NFC before power-up, and BLE provides a wireless CLI for troubleshooting without physical access. Management covers web GUI, CLI over Telnet or SSH, SNMP v1/v2c/v3 monitoring, RESTful APIs for building management integration and Lantronix Percepxion.
Key capabilities
- 90 W on every port
- The full PoE budget supports IEEE 802.3bt 90 W on all eight ports at once, with Always-On PoE, Ultra-fast PoE and scheduling.
- Multi-gig SFP+ uplinks
- Two SFP+ slots run at 10G, 5G, 2.5G or 1G, so uplinks can match existing optics or move to 10G.
- Fanless, -40°C to +65°C
- A fanless, IP31-rated design runs from -40°C to +65°C and stores to +85°C for rugged or unconditioned spaces.
- NFC and BLE access
- Pre-configure over NFC before dispatch and use BLE for a wireless CLI to troubleshoot or reset without reaching the switch.
- Building system APIs
- RESTful APIs and cloud management let building management systems and Percepxion monitor the switch, simplifying installation and maintenance.
How to choose the right LS Series part number
The LS Series has one switch, LSS2200-8P: 8 PoE++ ports, 2 multi-gig SFP+ slots, a console port and two digital I/O. It needs 46-56 VDC (54 VDC for full 802.3bt), so pair it with a DIN-rail supply sized to the PoE load. The 25172 delivers 48-57 VDC at 960 W from 85-277 VAC or 80-370 VDC and covers the full 750 W maximum draw. The 25160 delivers 48-55 VDC at 480 W for lighter loads. WMB-LSS is the optional wall mount bracket kit; a DIN-rail mount is included.
Configure & order
Find your LS Series part number
Every orderable LS Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
LSS2200-8P
$1,835.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the LS Series, organized by what it does — power, mounting & enclosures— each with why you'd add it.
Power
3 items
25160
25160
Hardened DIN rail mounted power supply with 90-264 VAC or 127-370 VDC input and 48 ~ 55 VDC, 10A, 480 Watts output.
$517.00
3 in stock
25160
25160
Hardened DIN rail mounted power supply with 90-264 VAC or 127-370 VDC input and 48 ~ 55 VDC, 10A, 480 Watts output.
$517.00
3 in stock
25172
25172
960 Watts DIN RAIL power supply for Lantronix Gigabit Ethernet PoE++ Switches LS Series. It accepts 85-277VAC or 80-370VDC input and provides 48 ~ 57VDC output at 20A.
$1,655.00
Ships on backorder
Mounting & enclosures
1 itemWMB-LSS
WMB-LSS
Wall Mount Bracket Kit listed in the Accessories group for the ls-series. It is categorized under Network Infrastructure Switch Accessories.
$25.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the LS Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the LS Series is used
- Powering PoE LED lighting throughout commercial buildings
- High-power security cameras distributed throughout a building
- Smart building IoT devices integrated with a BMS
- Rugged sites needing a fanless hardened PoE++ switch
LS Series datasheets & documentation
LS Series FAQ
Can the LSS2200-8P power 90 W on all ports at once?
Yes. Its 720 W PoE budget supports 90 W on all eight IEEE 802.3bt ports simultaneously. Maximum power consumption with full 90 W load on every port is 750 W, and the input should be 54 VDC for 802.3bt.
What power supply does the LS Series switch need?
It accepts 46-56 VDC on redundant inputs. Lantronix lists the 25172 (48-57 VDC, 20 A, 960 W) and the 25160 (48-55 VDC, 10 A, 480 W), both DIN-rail mounted with wide AC or DC input. Size the supply to your PoE load.
What speeds do the LSS2200-8P SFP+ slots support?
10G, 5G, 2.5G and 1G. There are two SFP+ multi-gig slots alongside the eight 10/100/1000Base-T PoE++ ports and one RJ-45 console port. Switching is full line rate and non-blocking, with a 16K MAC address table.
What is the LS Series operating temperature?
-40°C to +65°C operating and -40°C to +85°C storage, with 5% to 95% non-condensing humidity. The switch is fanless and rated IP31, with FCC Class A, CE and UL 62368-1 certifications.
Is the LSS2200-8P a Layer 3 switch?
Lantronix calls it a managed Layer 2+ switch. It provides RSTP, up to 4K VLANs, static routing, DHCP server and relay, LLDP-MED, port security, port mirroring and last gasp, plus 10K-byte jumbo frames.
