Lantronix 25160 — DIN Rail 48 VDC 10A Power Supply
$349.04$517.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 48 ~ 55 VDC output at 10A and 480 Watts
- 90-264 VAC and 127-370 VDC input
- DIN rail mounting in a hardened power supply form factor
- -25°C to +70°C operating range
- 20% to 90% (non-condensing) humidity range
- UL508 and TUV EN60950-1 safety certifications
- IEC60068-2-6 (Vibration) certification

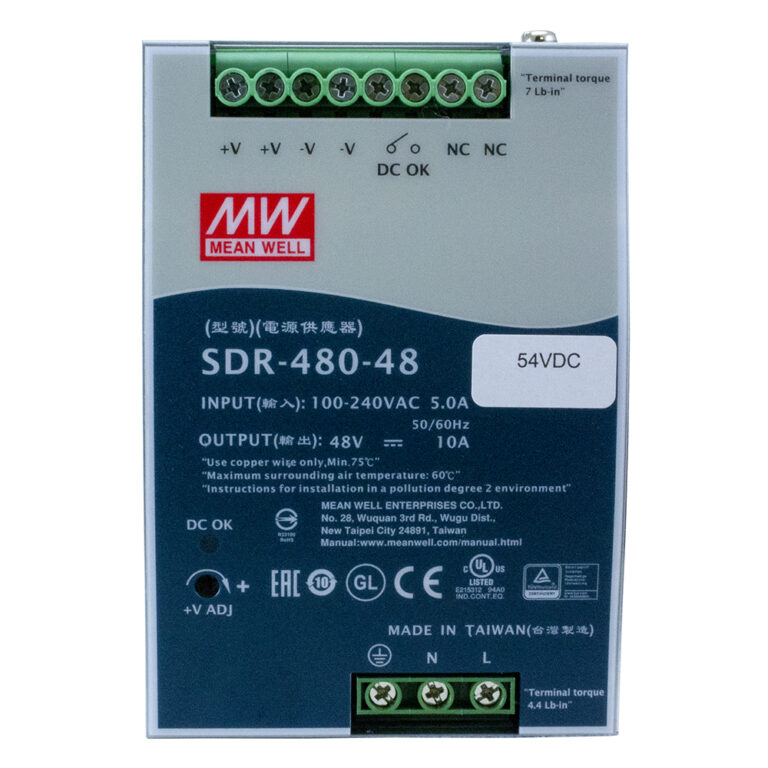

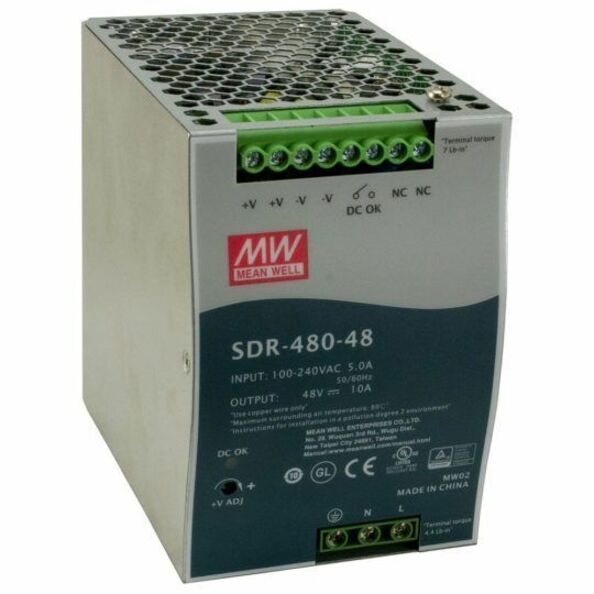

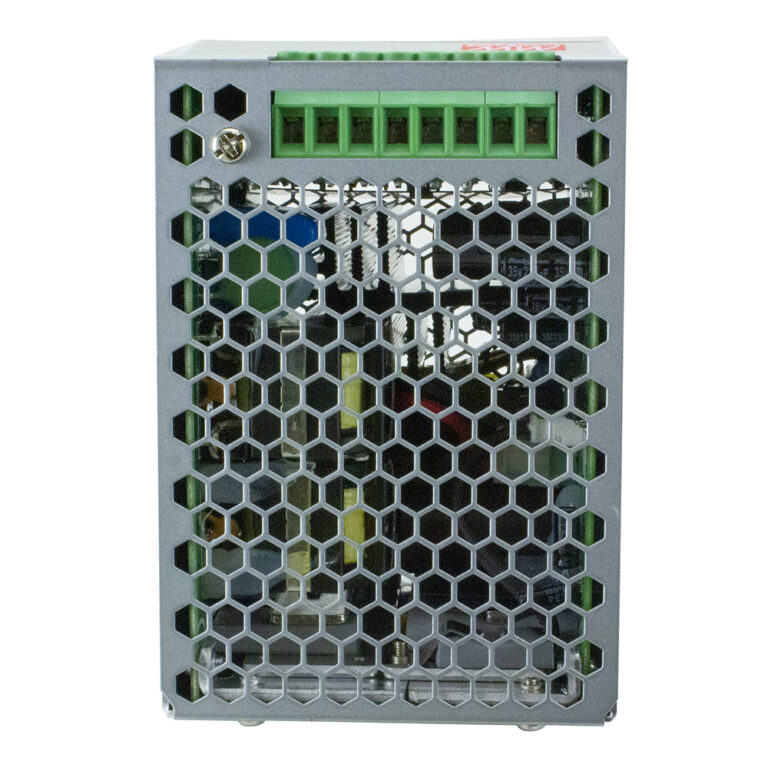

Lantronix 25160 is a hardened DIN rail mounted power supply. It accepts 90-264 VAC or 127-370 VDC input and provides 48 ~ 55 VDC output at 10A, 480 Watts. Lantronix lists 25160 in Compatible Accessories for the sispm1242-582-lrt series. It is DIN rail mountable for installations that require a 48 VDC power supply. The unit is rated for -25°C to +70°C operating temperature, -40°C to +85°C storage temperature, and 20% to 90% (non-condensing) humidity. Safety listings include UL508 and TUV EN60950-1.
Ideal For
- Powering Lantronix sispm1242-582-lrt installations listed for Compatible Accessories
- DIN rail power installations requiring 48 ~ 55 VDC output
- Deployments requiring a -25°C to +70°C operating range
- Projects that specify UL508 or TUV EN60950-1 safety certifications
Specifications
| MTBF | 112.9 Khrs |
| Safety | UL508, TUV EN60950-1 |
| Weight | 3.53 lb |
| Cooling | Convection air cooling |
| Humidity | 20% to 90% (non-condensing) |
| Peak Load | 150% |
| Dimensions | 3.37” [85.5 mm] x 5.99” [152.2 mm] x 5.06” [128.5 mm] |
| Efficiency | 94% |
| Protection | Short Circuit - Overload - Over Voltage - Overheating |
| Form Factor | DIN Rail |
| EMC Emission | EN55011, EN5032(CISPR32), EN61204-3 Class B, EN61000-3-2, EN61000-3-3 |
| EMC Immunity | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, EN55024, EN61000-6-2, EN50082-2, EN61204-3, SEMI F47, GL Approved |
| Output Power | 480 Watts |
| Product Type | Power Supply |
| Certification | IEC60068-2-6 (Vibration) |
| TAA Compliant | Yes |
| Output Current | 10A |
| Output Voltage | 48 ~ 55 VDC |
| RoHS Compliance | Yes |
| AC Input Voltage | 90-264 VAC |
| DC Input Voltage | 127-370 VDC |
| Limited Warranty | 5 Year |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -25°C to +70°C |
Frequently Asked Questions
Does the Lantronix 25160 mount on DIN rail?▾
Yes. The 25160 is described as a hardened DIN rail mounted power supply and as DIN rail mountable.
What input voltage does the 25160 support?▾
It accepts 90-264 VAC or 127-370 VDC input.
What output does the 25160 provide?▾
It provides 48 ~ 55 VDC output at 10A, 480 Watts.
Which Lantronix product listing includes this accessory?▾
Lantronix lists 25160 in Compatible Accessories for the sispm1242-582-lrt series.
