Lantronix NTC-550 Series 5G Industrial IoT Gateways
The NTC-550 Series are ruggedized 5G industrial IoT gateways that pair 5G NR Release 16 cellular with Wi-Fi 6, a 2.5 Gbps WAN/LAN port, four Gigabit LAN ports and serial, I/O and ignition inputs for vehicles and unmanned sites.
From $599.00
Overview
About the Lantronix NTC-550 Series
The NTC-550 Series (also written NTC550, with models NTC-551 and NTC-552) is a 5G router and IoT gateway for fixed and mobile industrial deployments: emergency vehicles, trucks and buses, smart factories, and remote sites with no staff on hand. It supports 5G NR Release 16 in both standalone (SA) and non-standalone (NSA) modes with automatic fallback to 4G LTE, plus dynamic 5G network slicing. Private 5G networks are supported too, including CBRS band n48 in the USA and n77/n78 in ANZ, EMEA and LATAM.

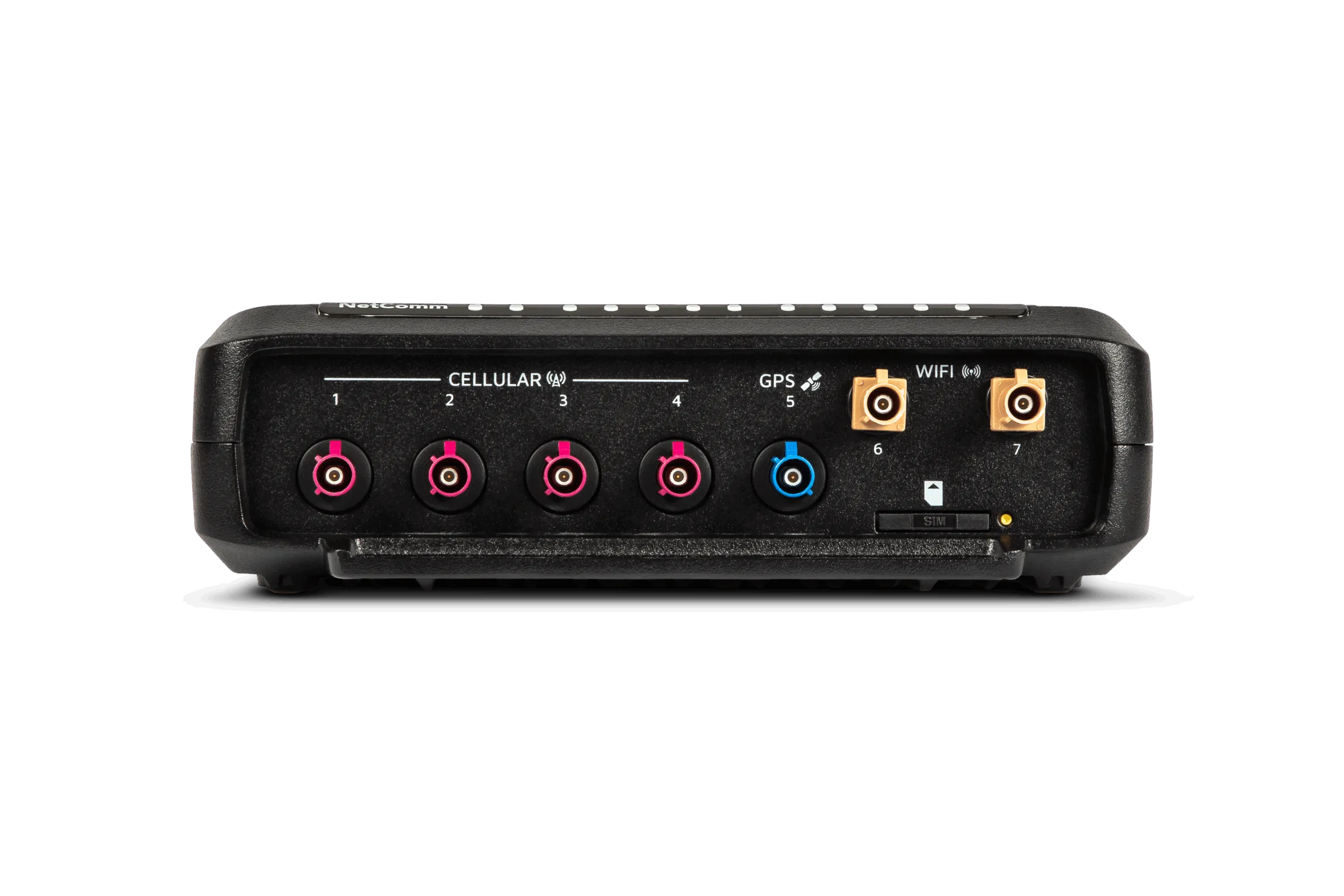

Peak cellular rates reach 2.4 Gbps down and 900 Mbps up on 5G SA, and 1.6 Gbps down on LTE Cat 19. Wired connectivity is one 2.5 Gbps LAN/WAN port and four 1 Gbps LAN ports, and Wi-Fi 6 runs 2x2 MU-MIMO in AP, client or AP plus client mode with WPA3. One RS-232/422/485 serial port, three GPIOs, ignition sensing, USB-C, microSD and GPS/GLONASS round out the I/O. All antennas attach via FAKRA connectors: four cellular, one GPS and two Wi-Fi.
Routing features include WAN failover across cellular, Ethernet and Wi-Fi, VRRP, RIPv2, VLANs, an IPS firewall, IPsec (up to 5 tunnels), GRE and OpenVPN. A Modbus TCP and serial gateway and a Data Stream Manager handle industrial data. Remote management uses TR-069, LWM2M, SNMPv3, MQTT to Azure and AWS, SMS commands and Percepxion. The IP41 metal housing operates from -30 °C to +70 °C.
Key capabilities
- 5G Release 16 SA/NSA
- Supports 5G standalone and non-standalone modes, dynamic network slicing and LTE fallback, with up to 2.5 Gbps downlink on 5G NSA.
- 2.5 Gbps WAN port
- One 2.5 Gbps LAN/WAN port plus four Gigabit LAN ports keep wired throughput in line with 5G cellular speeds.
- Private 5G ready
- Covers CBRS band n48 for USA private networks and n77/n78 for ANZ, EMEA and LATAM industrial, energy and logistics sites.
- Vehicle-ready I/O
- Ignition sensing, GNSS, three configurable GPIOs and FAKRA antenna connectors suit emergency vehicles, trucks and buses.
- Wi-Fi 6 with WPA3
- 2x2 MU-MIMO 802.11ax on 2.4 and 5 GHz with dual-band simultaneous operation, running as access point, client or both.
- SMS and cloud management
- Configure and query via SMS, report data over MQTT to Azure and AWS, and manage fleets through TR-069, LWM2M or Percepxion.
How to choose the right NTC-550 Series part number
The two NTC-550 models share identical interfaces and differ only in cellular band support. NTC-551-01-01 is the North American version, covering 5G bands including n2, n41, n48 (CBRS), n66, n71 and n77, with LTE bands such as B2, B4, B12, B13, B14 and B66. NTC-552-01-01 serves EMEA and APAC excluding Japan and China, covering 5G n1, n3, n28, n75, n76, n77 and n78 and LTE bands such as B1, B3, B20 and B28. Add the ANT-0102 7-in-1 antenna or ANT-0101-B07 bundle and the PSU-0250 12 VDC supply.
Configure & order
Find your NTC-550 Series part number
Every orderable NTC-550 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
NTC-551-01-01
$599.00
Ships on backorder
NTC-552-01-01
$599.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the NTC-550 Series, organized by what it does — antennas, power— each with why you'd add it.
Antennas
2 items
Antenna Bundle
ANT-0101-B07
Antenna bundle designed for NTC-550 evaluation. It includes 4pcs 5G, 1pc GNSS, and 2pcs Wi-Fi antennas with FAKRA connectors.
$162.50
Ships on backorder
Antenna
ANT-0102
Combo 7-in-1 antenna listed for NTC-550 Series products. It includes 5G/LTE MIMO, Wi-Fi MIMO and GNSS, with SMA male and a 3m FAKRA-to-SMA female extension cable.
$502.46
Ships on backorder
Power
1 item
Power Supply
PSU-0250
Wall cube power supply rated 12VDC 2.5A and 30W. It includes a 2M cable with 2 bare wires and universal AC plug EU/UK/US/SAA.
$22.03
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the NTC-550 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the NTC-550 Series is used
- 5G connectivity for ambulances, police and fire vehicles
- Fleet trucks and buses with ignition sensing and GNSS
- Private 5G and CBRS networks in factories and logistics
- Remote monitoring at unmanned energy and utility sites
- Modbus serial equipment connected to cloud platforms
NTC-550 Series datasheets & documentation
NTC-550 Series FAQ
What is the difference between the NTC-551 and NTC-552?
They differ only in cellular bands. The NTC-551-01-01 is the North American model with bands such as n48 CBRS, n71 and LTE B13/B14. The NTC-552-01-01 covers EMEA and APAC excluding Japan and China, with bands such as n1, n3, n78 and LTE B20/B28.
Does the NTC-550 Series support 5G standalone and private 5G?
Yes. It supports 5G NR Release 16 in SA and NSA modes with dynamic 5G slicing and LTE fallback. For private 5G it supports CBRS band n48 in the USA and n77 and n78 in ANZ, EMEA and LATAM.
What peak speeds can the NTC-550 reach?
Lantronix lists 2.4 Gbps down and 900 Mbps up on 5G NR SA Sub-6, 2.5 Gbps down and 550 Mbps up on 5G NSA, and 1.6 Gbps down and 200 Mbps up on 4G LTE.
What comes in the box with the NTC-551 or NTC-552?
The box includes the router, a six-way terminal block, a 1 m Ethernet cable, a DIN-rail mounting kit and a welcome card. Antennas and the power supply are separate accessories, such as the ANT-0102 antenna and PSU-0250 12 VDC wall supply.
What is the NTC-550 operating temperature and enclosure rating?
It operates from -30 °C to +70 °C at 0-95% humidity, with storage to +85 °C. The metal enclosure is IP41 rated, measures 193.3 x 175 x 51.7 mm and weighs 1.05 kg.
