Network Switches
Lantronix SISTP1040-382B-LRT Hardened Low-Voltage PoE+ Switch
The SISTP1040-382B-LRT is an unmanaged, fanless industrial PoE+ switch that runs directly from 12 or 24 VDC, powering up to eight cameras, radios or sensors in vehicles, solar sites and field cabinets.
From $630.70
Overview
About the Lantronix SISTP1040-382B-LRT
The SISTP1040-382B-LRT (sometimes written SISTP1040-382B) is an eight-port Gigabit PoE+ switch built for sites where only a 12 V or 24 V DC system is available, such as battery and solar installations, vehicles and low-voltage control cabinets. It accepts 12-24 VDC on redundant inputs with reverse power protection and still delivers IEEE 802.3af/at PoE+ on its eight Gigabit copper ports, so cameras and radios can draw power from the same DC system.
The PoE budget depends on the input voltage. At 24 VDC the switch provides 120 W total: 30 W on four ports or 15 W on all eight. At 12 VDC the budget is 60 W: 30 W on two ports or 15 W on four. Two 100/1000Base-X SFP slots provide fiber uplinks. Switching is store-and-forward at Layer 2 wire speed, with a 4K MAC table, 9K jumbo frames, 802.1p and 802.3az Energy Efficient Ethernet.

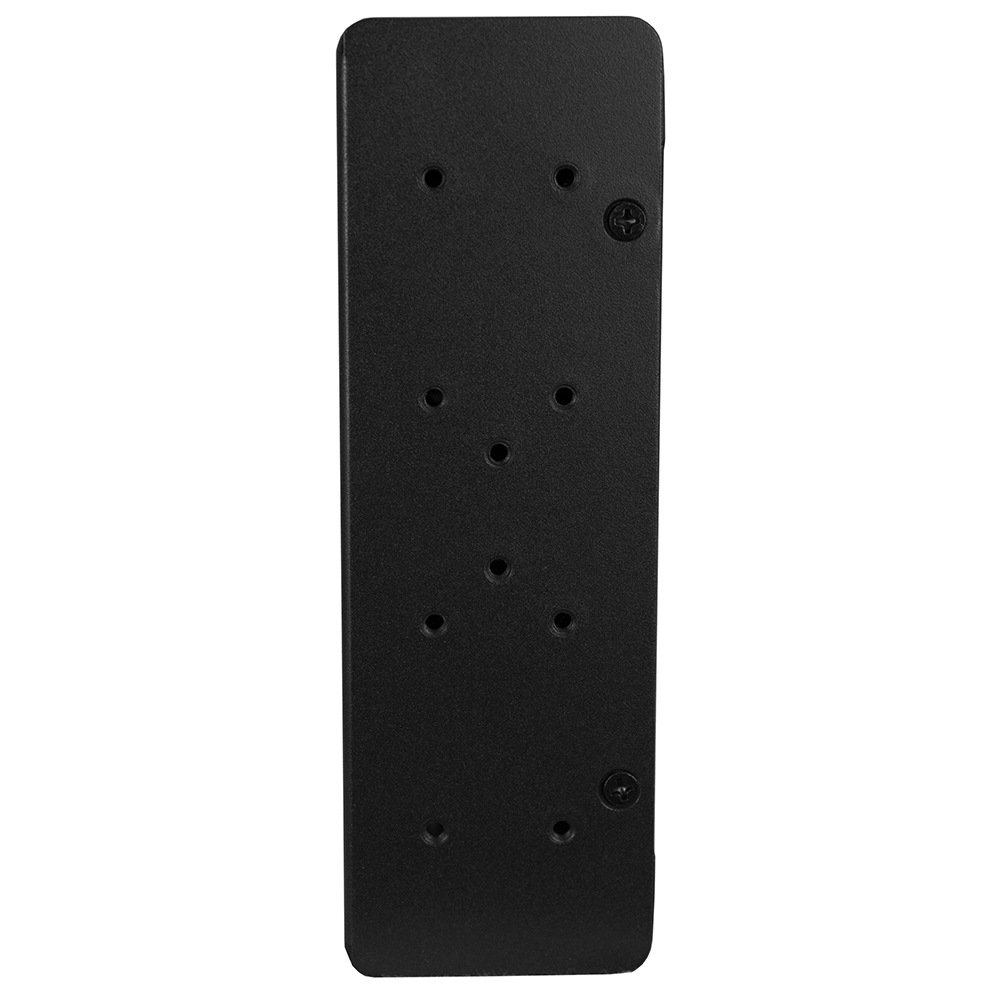

The fanless IP30 metal housing measures 44 x 130 x 135 mm, weighs 0.46 kg and operates from -40°C to +70°C. A DIN-rail bracket is included, with wall mounting as an option. It is UL listed, and Lantronix lists it as designed to meet Class 1 Div 2.
Key capabilities
- 12-24 VDC low-voltage input
- Runs straight from 12 V or 24 V DC systems, with redundant inputs and reverse power protection, so PoE devices run from the site's existing DC system.
- Up to 120 W PoE+
- At 24 VDC input the switch delivers 120 W total, 30 W on four ports or 15 W on all eight; at 12 VDC the budget is 60 W.
- Two SFP fiber uplinks
- 100/1000Base-X SFP slots carry traffic over multimode or single-mode fiber back to the core, beyond copper distance limits.
- Fanless, -40°C to +70°C
- A ruggedized fanless metal enclosure rated IP30 operates across -40°C to +70°C without moving parts to fail.
- Plug-and-play unmanaged
- No configuration required: Layer 2 wire-speed switching, 802.3az power saving and 9K jumbo frames work out of the box.
How to choose the right SISTP1040-382B-LRT part number
There is one switch model, SISTP1040-382B-LRT, with eight 10/100/1000Base-T PoE+ ports, two 100/1000Base-X SFP slots and an included DIN-rail bracket. Choose accessories to fit the site: DRBH-01 is a spare DIN-rail bracket, WMBH-01 a wall mount bracket, 25175 an industrial DIN-rail power supply (90-264 VAC input, 24-48 VDC output, 120 W), and OCA-P181610 a vented outdoor cabinet with DIN rails and cable glands. SFP modules are ordered separately.
Configure & order
Find your SISTP1040-382B-LRT part number
Every orderable SISTP1040-382B-LRT configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SISTP1040-382B-LRT, organized by what it does — power, mounting & enclosures— each with why you'd add it.
Power
1 item

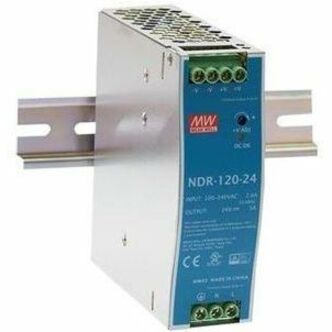

25175
25175
Industrial DIN rail mounted power supply with 90 – 264VAC, 127 – 370VDC input and 24VDC, 5A output.
$95.00
Ships on backorder
Mounting & enclosures
3 items
DRBH-01
DRBH-01
DIN rail bracket kit for hardened switches. It is listed for SISPM, SISGM and SISTx products, with compatible products identified by Lantronix for multiple SISPM1040, SISGM1040,…
$11.00
1 in stock
WMBH-01
WMBH-01
Wall mount bracket for SISPM1040-384-LRT-C, SISPM1040-362-LRT, and SISPM1040-582-LRT switches.
$33.00
3 in stock
OCA-P181610
OCA-P181610
18 x 16 x 10” polycarbonate outdoor cabinet assembly for Lantronix outdoor switches.
$948.75
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the SISTP1040-382B-LRT. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SISTP1040-382B-LRT is used
- Solar and battery-powered surveillance camera sites
- Vehicle and mobile networks running from 12 or 24 VDC
- Low-voltage industrial control cabinets with PoE sensors
- Outdoor PoE+ edge switching in roadside enclosures
SISTP1040-382B-LRT datasheets & documentation
SISTP1040-382B-LRT FAQ
Can the SISTP1040-382B-LRT provide PoE from a 12 VDC supply?
Yes. At 12 VDC input the switch provides a 60 W PoE budget, enough for 30 W on two ports or 15 W on four ports. At 24 VDC the budget doubles to 120 W.
What is the PoE budget of the SISTP1040-382B-LRT?
Total PoE budget is 120 W at 24 VDC input, supporting 30 W on four ports or 15 W on all eight. With 12 VDC input it is 60 W. Ports comply with IEEE 802.3af and 802.3at.
Is the SISTP1040-382B-LRT managed or unmanaged?
It is an unmanaged Layer 2 switch with a store-and-forward, wire-speed switching engine, 4K MAC table and 9K jumbo frame support. Status LEDs show system, both power inputs and port status, and a reset button resets the switch.
What temperature range is the SISTP1040-382B-LRT rated for?
It operates from -40°C to +70°C at 5% to 95% non-condensing humidity, in a fanless IP30 metal enclosure that mounts on DIN rail with the included bracket or on a wall.
