Lantronix XPort EDGE Embedded Ethernet IoT Gateway Module
XPort EDGE is an embedded serial-to-Ethernet gateway built into an RJ45 connector, letting OEMs add secure, remotely managed 10/100 Ethernet to any product with a microcontroller UART.
From $47.11
Overview
About the Lantronix XPort EDGE
XPort EDGE (also written XPort Edge, part prefix XPE200) is the next-generation version of the Lantronix XPort in the same compact form factor: a complete network communications engine packed inside an RJ45 Ethernet jack with integrated magnetics. Device makers connect it to any 8, 16 or 32-bit microcontroller over a UART and get a fully offloaded TCP/IP stack, security and management, so the host firmware only has to send and receive serial data. Lantronix positions it for adding Ethernet connectivity and control to a product in a few weeks.
Inside is a Cortex-R4 CPU at up to 320 MHz with 8 MB SPI flash. The 3.3V CMOS UART runs from 9600 bps to 4 Mbps with RTS/CTS and DTR/DCD, plus up to three programmable I/O pins. TruPort Serial passes hundreds of serial protocols through transparently over TCP, UDP or TLS, and TruPort Socket supports multi-host client and server connections and an HTTP(S) server. InfiniShield security adds secure boot, secure FOTA updates, encrypted configuration, key storage, role-based access control, IEEE 802.1X (EAPOL) and TLS 1.2 with X.509 certificates.
The module runs from 3.3VDC at 160 mA on 100Base-TX, measures 33.9 x 16.25 x 13.5 mm, weighs 9.6 g and operates from -40 to +85 C. It is pre-integrated with Lantronix Percepxion for cloud device management and secure firmware upgrades, can send email directly through authenticated SMTP, and is supported by an SDK available from Lantronix.
Key capabilities
- Gateway inside an RJ45
- The full gateway, 10/100 PHY and Ethernet magnetics fit in a 33.9 x 16.25 x 13.5 mm RJ45 package weighing 9.6 g, replacing a standard Ethernet jack.
- UART to Ethernet offload
- Connects to any 8, 16 or 32-bit MCU over a 3.3V UART at up to 4 Mbps, removing the TCP/IP stack and security from host firmware.
- InfiniShield security
- Secure boot, secure firmware-over-the-air updates, encrypted configuration, secure key storage, role-based access and 802.1X network attach are built in.
- Industrial temperature
- Operates and stores from -40 to +85 C, at 5% to 95% non-condensing storage humidity, for industrial controllers and field equipment.
- Percepxion integration
- Pre-integrated with the Lantronix Percepxion cloud platform for centralized device management, data access and secure firmware upgrades across a fleet.
How to choose the right XPort EDGE part number

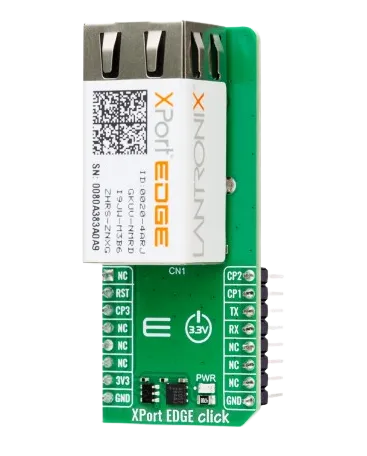

The three XPort EDGE part numbers are the same module in different packaging. XPE200100B is the production part, supplied 50 units per tray (200 per carton). XPE200100S is a single-unit sample in a box. XPE200100EK is the evaluation kit for developing and testing firmware before committing to a board design. For prototyping on MIKROE hardware, the XPort EDGE Click add-on board is listed as a compatible accessory.
Configure & order
Find your XPort EDGE part number
Every orderable XPort EDGE configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
XPE200100B
$47.11
Ships on backorder
XPE200100S
$49.73
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the XPort EDGE, organized by what it does — evaluation & development kits— each with why you'd add it.
Evaluation & development kits
1 itemXPort EDGE – Evaluation Kit
XPE200100EK
XPort EDGE Evaluation Kit. It supports evaluation of the XPort EDGE wired Ethernet gateway and device server with Percepxion integration, TruPort data communication and…
$99.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the XPort EDGE. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the XPort EDGE is used
- Adding Ethernet to printers and imaging equipment
- Networking motion controllers and industrial automation devices
- Secure remote monitoring of traffic and field controllers
- Upgrading existing XPort designs to secure, cloud-managed connectivity
- Security and surveillance devices needing compact serial-to-Ethernet
XPort EDGE FAQ
Is XPort EDGE pin compatible with the original Lantronix XPort?
Lantronix describes XPort EDGE as the next-generation wired Ethernet gateway and device server in the same compact form factor as the XPort. Check the XPort Family Comparison Matrix and datasheet to confirm pinout and feature differences for your board.
What microcontrollers can connect to XPort EDGE?
Any 8, 16 or 32-bit microcontroller with a UART. The serial interface uses 3.3V CMOS signals at 9600 bps to 4 Mbps, with RTS/CTS hardware flow control, XON/XOFF software flow control and DTR/DCD control signals.
What power does XPort EDGE need?
XPort EDGE runs from a 3.3VDC input. Current consumption is 160 mA when linked at 100Base-TX and 180 mA at 10Base-T, so size the 3.3V rail for the 10Base-T case.
What security does XPort EDGE provide?
Built-in InfiniShield security covers secure boot, secure FOTA updates, secure key storage, encrypted configuration, SSL/TLS and HTTPS connections, role-based access control, software-controlled service ports and IEEE 802.1X (EAPOL). Crypto includes TLS 1.2, AES up to 256-bit and RSA keys up to 4096 bits.
Which XPort EDGE part should I order for development?
Start with XPE200100EK, the XPort EDGE evaluation kit, or the XPort EDGE Click add-on board for MIKROE platforms. Order XPE200100S for single samples and XPE200100B trays of 50 for production builds.
