What is the EDCA-DIO-01 used for?

The EDCA-DIO-01 mounts within a telecom equipment cabinet and helps alert network managers when the cabinet door has been opened.

Does it power the cabinet door contact switch?

Yes. The product description states that it provides 12VDC power to a cabinet door contact switch or other actuation device.

How does it report door status to the switch?

The status of the contact switch, open or closed, can be wired to a standard alarm input on a managed Ethernet switch. The ALARM out port connects to the digital input port on the hardened Ethernet switch.

Which Lantronix switches are named in the product description?

The Lantronix description names SISPM1040-362-LRT, SISPM1040-384-LRT-C, and SISPM1040-582-LRT as Hardened Ethernet Switch examples.

Lantronix Enclosure Door Contact Alarm

Name: Lantronix EDCA-DIO-01 — Enclosure Door Contact Alarm
Brand: Lantronix
SKU: EDCA-DIO-01
Price: 92.62 USD
Availability: BackOrder

Lantronix|

MPN: EDCA-DIO-01

UPC: 648177043163

Available on Backorder

$92.62$138.00

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free shipping — every order, no minimumShips free as soon as stock arrives. We'll confirm the lead time before your card is charged.

Authorized Dealer — Full manufacturer warranty

Business Pricing Available

Exclusive pricing, free shipping on your first order, and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Cabinet-door status monitoring for telecom equipment cabinets
12VDC power output for a cabinet door contact switch or other actuation device
Open/closed contact status wiring to a standard alarm input on a managed Ethernet switch
2-wire DC input port on the 6-pin terminal block for power input
12 VDC Relay port connection to the sensor or door contact closure switch
ALARM out port connection to the digital input port on a hardened Ethernet switch

Lantronix EDCA-DIO-01 Enclosure Door Contact Alarm mounts within a telecom equipment cabinet to help alert network managers when the cabinet door has been opened. The device provides 12VDC power to a cabinet door contact switch or other actuation device. The contact switch status, open or closed, can be wired to a standard alarm input on a managed Ethernet switch. EDCA-DIO-01 requires power and can be powered by the same power supply providing power to the Hardened Ethernet Switch through the 2-wire DC input port on the 6-pin terminal block. The 12 VDC Relay port connects to the sensor or door contact closure switch, and the ALARM out port connects to the digital input port on the hardened Ethernet switch. Lantronix lists EDCA-DIO-01 as a Compatible Accessory for the OCA Bundle Series.

Ideal For

Detecting when a telecom equipment cabinet door has been opened
Wiring cabinet-door status to a managed Ethernet switch alarm input
Adding door contact monitoring to Hardened Ethernet Switch installations
Using EDCA-DIO-01 as a Compatible Accessory in OCA Bundle Series projects

Why This Product

1Listed as the EDCA-DIO-01 Enclosure Door Contact Alarm under Compatible Accessories for the OCA Bundle Series

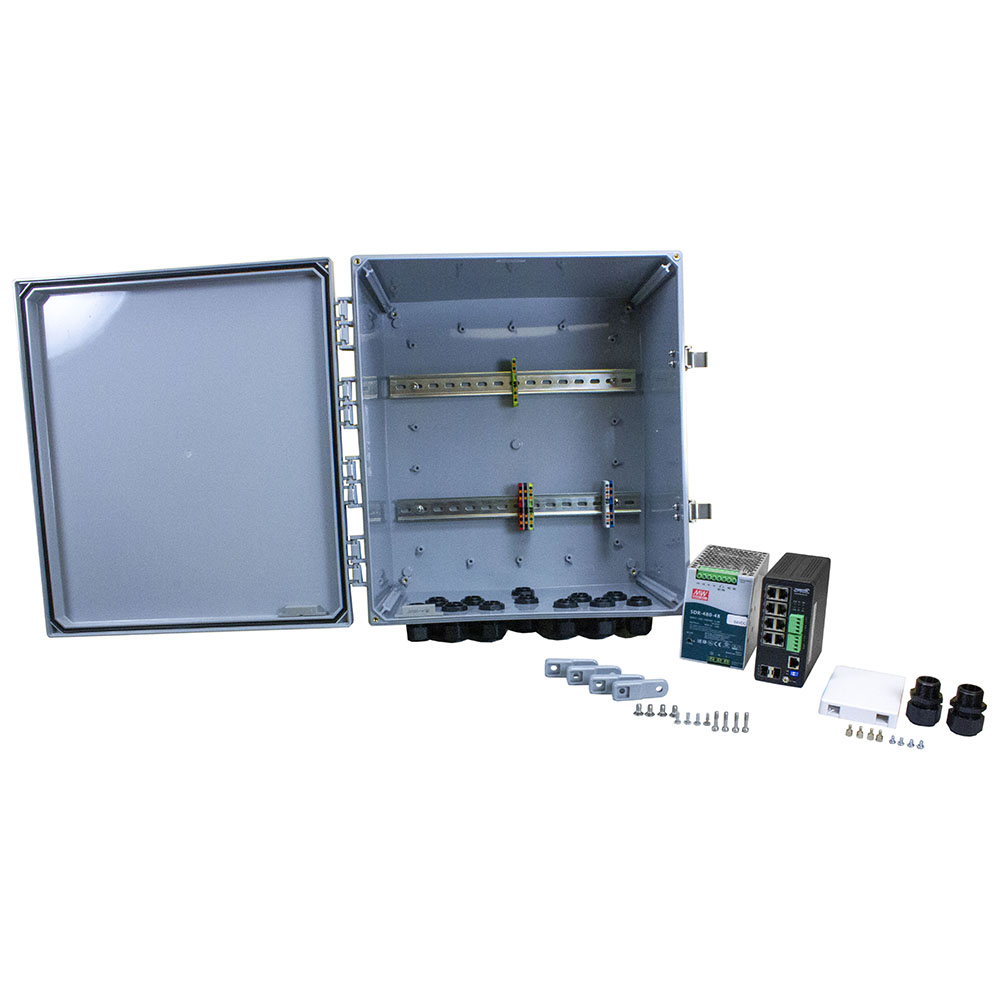

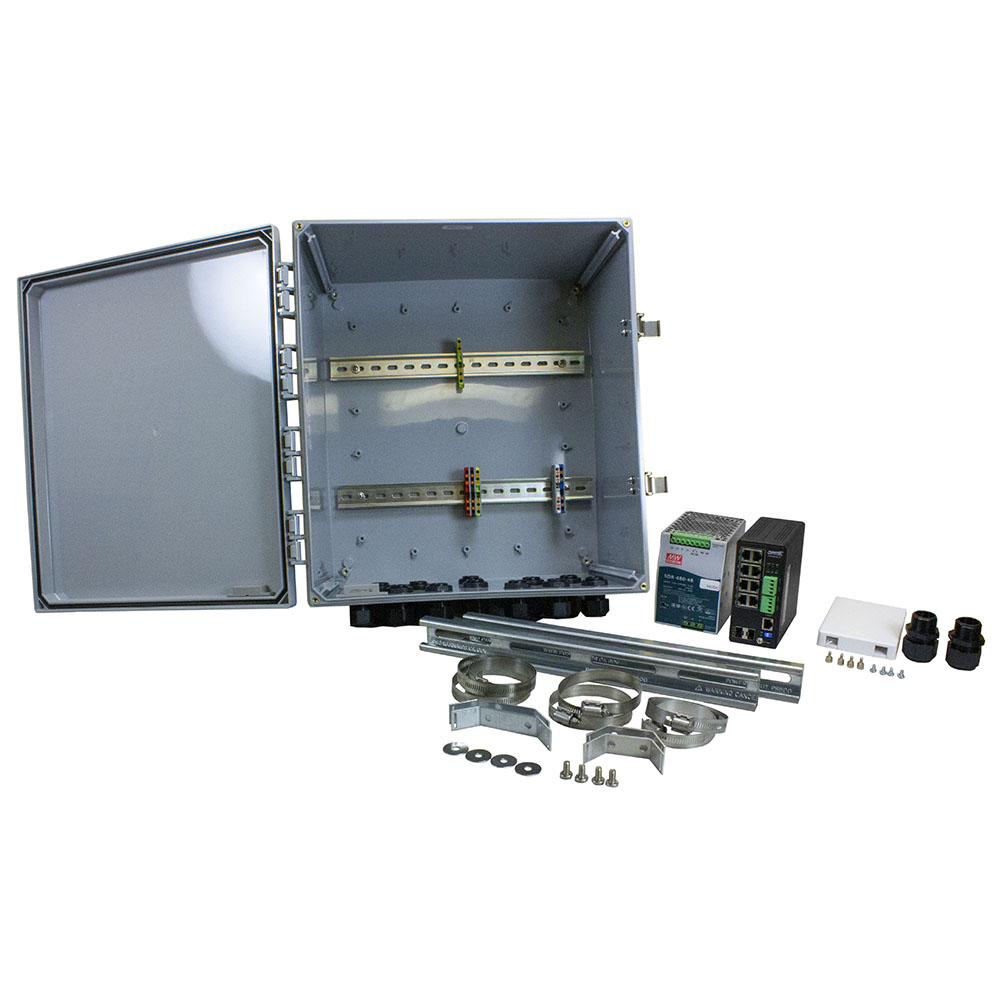

2Included in OCA-1AA2A0, OCA-1AA2A1, OCA-1BA1A0, and OCA-1BA1A1 bundle configurations
3The same OCA Bundle Series accessory table also lists 25160 as a power supply; EDCA-DIO-01 is the door contact alarm accessory
