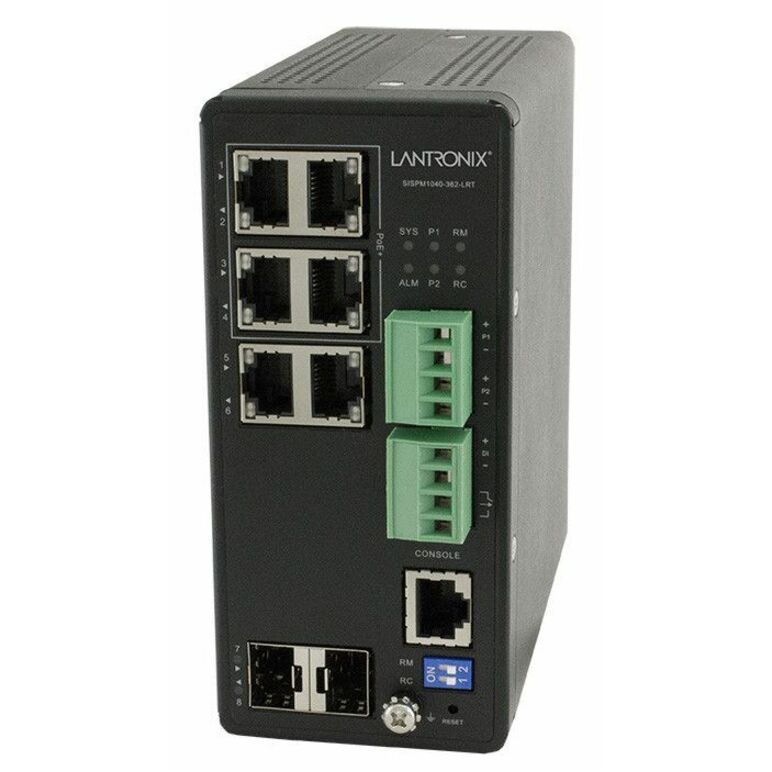

Lantronix SISPM1040-362-LRT — SISPM1040-300 Series Managed Hardened PoE+ Switch
$710.81$1,057.35
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 4 10/100/1000Base-T PoE+ ports supply up to 30 Watts per port
- 2 10/100/1000Base-T RJ-45 ports and 2 100/1000Base-X SFP slots support copper and SFP connections
- 120 Watts PoE Budget supports 30 Watts output on all 4 PoE ports
- Percepxion IoT Edge Solutions Platform provides device life cycle management, enterprise application integration, and data analytics
- DMS web manager provides topology, floor, and map views, traffic monitoring, and network diagnostics
- -40°C to +75°C operating temperature supports hardened environments
- Ring protections include G.8032 Ethernet Ring Protection Switching, G.8031 Ethernet Linear Protection Switching, and Rapid Ring recovery time less than 20ms
- PoE+ for up to 30watts
The Lantronix SISPM1040-362-LRT is a managed hardened PoE+ switch in the SISPM1040-300 Series. This SKU provides (4) 10/100/1000Base-T PoE+ ports, (2) 10/100/1000Base-T RJ-45 ports, and (2) 100/1000Base-X SFP slots. The switch can supply up to 30 Watts per port on all PoE ports simultaneously, with a 120 Watts PoE Budget for the 362 model. It is suitable for connecting and powering devices in hardened environments. Integrated Percepxion provides device life cycle management, enterprise application integration, and data analytics. DMS, accessible by Percepxion or the local web manager, provides graphical network topology, floor map creator, device map view, traffic monitoring, and network diagnostics. The SISPM1040-300 Series supports IEEE 1588 v2 PTP, web GUI and CLI management, ring protections, VLAN features, ACLs, QoS, system alarms, and Media Redundancy Protocol.
Ideal For
- Connecting and powering PoE+ devices in hardened environments
- Managed Ethernet switching for factory floors
- Outdoor enclosures that require -40°C to +75°C operating temperature
- Managing IP addressable devices with topology, floor, and map views
Specifications
| MTBF | 100,874 hours |
| Weight | 2 lbs. [0.9 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Backplane | 16 Gbps |
| Dimensions | 2.4” [62 mm] x 5.3" [135 mm] x 5.4” [130 mm] |
| PoE++ Budget | 120 Watts PoE Budget |
| PoE++ Output | 30 Watts output on all 4 ports |
| Mac Address | 8K |
| Power Input | 48 - 57VDC |
| Digital Output | 24VDC/1A |
| Serial Console | RJ-45 |
| Limited Warranty | 5 Year |
| Digital Input Low | 0V to 6V |
| Digital Input High | 10V to 24V |
| Ingress Protection | IP30 |
| Port Configuration | (4) 10/100/1000Base-T PoE+ ports + (2) 10/100/1000Base-T RJ-45 ports + (2) 100/1000Base-X SFP slots |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to +75°C |
| Power Consumption Without PoE++ | 11.1 Watts |
Frequently Asked Questions
What ports are on the SISPM1040-362-LRT?▾
SISPM1040-362-LRT has (4) 10/100/1000Base-T PoE+ ports, (2) 10/100/1000Base-T RJ-45 ports, and (2) 100/1000Base-X SFP slots.
What is the PoE budget for this switch?▾
The 362 model lists a 120 Watts PoE Budget and 30 Watts output on all 4 ports.
Is a DIN rail bracket included?▾
Yes. The Lantronix part row states that a DIN Rail Bracket is included.
How can this switch be managed?▾
Management options listed for the SISPM1040-300 Series include Percepxion, DMS web manager, web, SNMP v1/v2c/v3, Telnet, and CLI management.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SISPM1040-362-LRT-L1Y1
$95.16 - 3-year technical support
SISPM1040-362-LRT-L1Y3
$277.55 - 5-year technical support
SISPM1040-362-LRT-L1Y5
$449.36 - 1-year extended warranty & technical support
SISPM1040-362-LRT-L2Y1
$137.45 - 3-year extended warranty & technical support
SISPM1040-362-LRT-L2Y3
$396.49 - 5-year extended warranty & technical support
SISPM1040-362-LRT-L2Y5
$634.38
