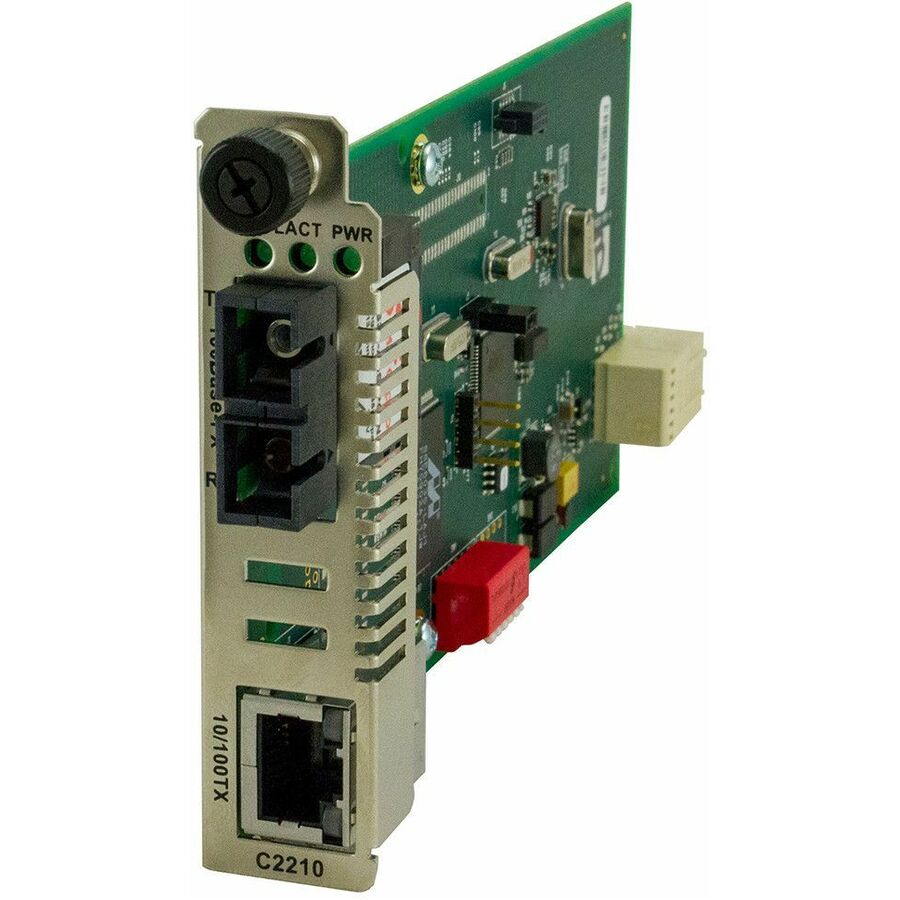

Lantronix C2210-1014 — Media Converter Module 20 km Single-Mode SC
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Key Features
- 10/100Base-TX (RJ-45) to 100Base-FX 1310nm single mode (SC) conversion
- 20 km/12.4 mi fiber distance with 16.0 dB link budget
- Layer 2 operation with rate conversion for legacy 10Base-T copper devices
- Auto-Negotiation of speed and duplex on TP port
- Auto-MDI/MDIX on TP port
- Link Pass Through and Far-End-Fault detection
- Manageable operation when installed in a managed ION chassis
Ideal For
- Integrating fiber optic cabling into 10/100 copper environments
- Connecting legacy 10Base-T copper devices to 100Base-FX fiber
- Adding a 20 km/12.4 mi 1310nm single-mode SC fiber link in an ION Platform Chassis
- Using chassis management software for converter status when installed with an ION Management Module
Specifications
| MTBF | Greater than 250,000 hours (MIL-HDBK-217F); Greater than 667,500 hours (Bellcore) |
| Depth | 6.5” [165 mm] |
| Layer | Layer 2 |
| Width | 0.86” [22 mm] |
| Height | 3.4”[86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 10 Mbps; 100 Mbps |
| Standards | IEEE 802.3u; IEEE 802.3x |
| Link Budget | 16.0 dB |
| Certifications | CISPR/EN55022 Class A, FCC Class A, CE Mark, EN55024 |
| Fiber Distance | 20 km/12.4 mi. |
| Max Frame Size | 2048 bytes |
| Copper Distance | 100 m/328 ft |
| Fiber Interface | 100Base-FX 1310nm single mode (SC) |
| Copper Interface | 10/100Base-TX (RJ-45) |
| Mac Address Table | 1K |
| Power Consumption | 2.5 Watts, 200 mA @ 13.9 VDC |
| Frame Buffer Memory | 512 Kbits |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What does the C2210-1014 convert?▾
It provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing fiber optic cabling to be integrated into 10/100 copper environments.
What fiber type, connector, and distance does this SKU support?▾
This configuration is 100Base-FX 1310nm single mode with an SC connector, 20 km/12.4 mi distance, and a 16.0 dB link budget.
Is the C2210-1014 manageable?▾
Yes. The ION C2210 is manageable when installed in a managed ION chassis. Manageable Features are available when used in an ION Platform chassis along with an ION Management Module.
Does it support Auto-Negotiation and Link Pass Through?▾
Yes. The listed features include Auto-Negotiation of speed and duplex on the TP port, Auto-MDI/MDIX on the TP port, Link Pass Through, and Far-End-Fault detection.
