Lantronix C2210 Series ION Fast Ethernet Media Converter Modules
The C2210 Series are slide-in ION chassis modules that convert 10/100Base-TX copper to 100Base-FX fiber at Layer 2, with rate conversion for 10 Mbps devices and full remote management when installed in a managed ION chassis.
From $275.52
Overview
About the Lantronix C2210 Series

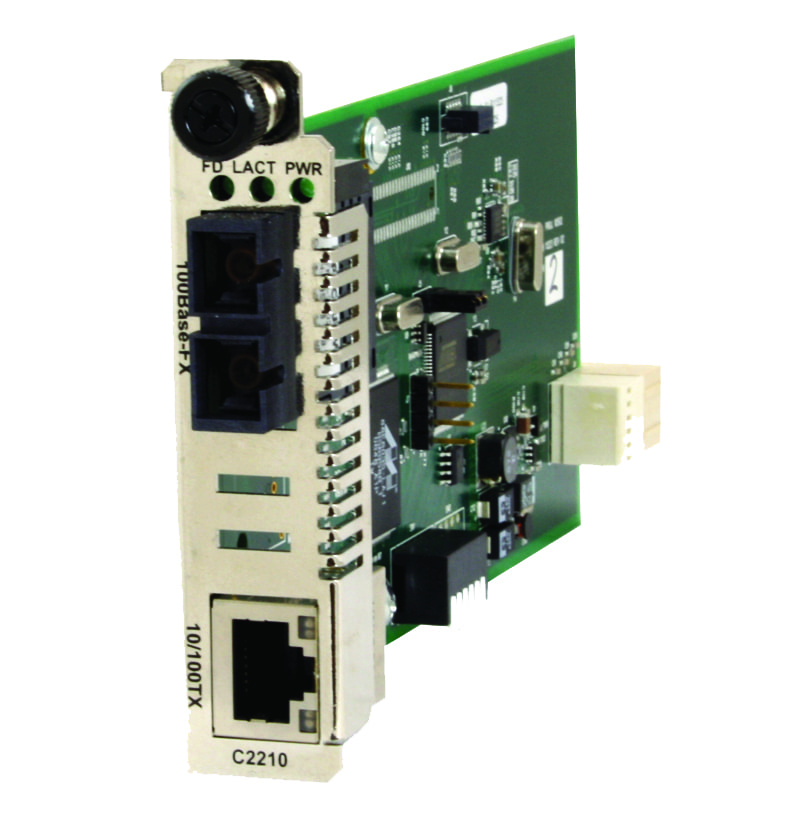

The ION C2210 (also written C-2210) is a media converter card that slides into a Lantronix ION platform chassis, where many copper-to-fiber links can be terminated and managed together. It interfaces 10/100Base-TX copper ports to 100Base-FX fiber and, because it operates at Layer 2 with a 1K MAC table and 512 Kbit frame buffer, it also converts rates so a legacy 10Base-T device can connect to a 100 Mbps fiber link.
Six versions cover the common fiber plants: 1300 nm multimode to 2 km on ST, SC or LC connectors, 1310 nm single-mode to 20 km on SC or LC, and an empty 100Base-X SFP slot. On the copper port, auto-negotiation and Auto-MDI/MDIX are standard, and Link Pass Through, Far-End-Fault detection, software-controlled pause and Automatic Link Restoration help manage faults. Each card draws 2.5 W from the chassis backplane.
In an ION chassis with an ION Management Module, the C2210 reports link status, speed, duplex, switch settings and fault conditions, and accepts remote commands to power the card on or off, force speed or duplex, and toggle LPT, FEF, pause and Auto-MDI/MDIX. Firmware is field-upgradeable.
Key capabilities
- Layer 2 rate conversion
- Unlike a pure Layer 1 converter, the C2210 buffers frames so 10Base-T devices can connect to 100Base-FX fiber.
- Managed in ION chassis
- With an ION Management Module, link state, faults and port settings are visible and changeable remotely, including powering the card off.
- Six fiber options
- ST, SC or LC multimode to 2 km, SC or LC single-mode to 20 km, or an open SFP slot for other optics.
- Fault detection features
- Link Pass Through, Far-End-Fault and Automatic Link Restoration propagate and recover from link failures on either side.
- Hardware or software mode
- A jumper chooses whether DIP switches or saved microprocessor settings control the card, so local and remote setups do not conflict.
How to choose the right C2210 Series part number
All C2210 modules convert 10/100Base-TX to 100 Mbps fiber and fit any ION platform chassis; the suffix selects the optic. C2210-1011 (ST), C2210-1013 (SC) and C2210-1039 (LC) are 1300 nm multimode to 2 km with an 11.0 dB budget. C2210-1014 (SC, 16.0 dB) and C2210-1019 (LC, 17.3 dB) are 1310 nm single-mode to 20 km. C2210-1040 has an empty 100Base-X SFP slot for other wavelengths or distances; order the SFP module separately.
Configure & order
Find your C2210 Series part number
Every orderable C2210 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

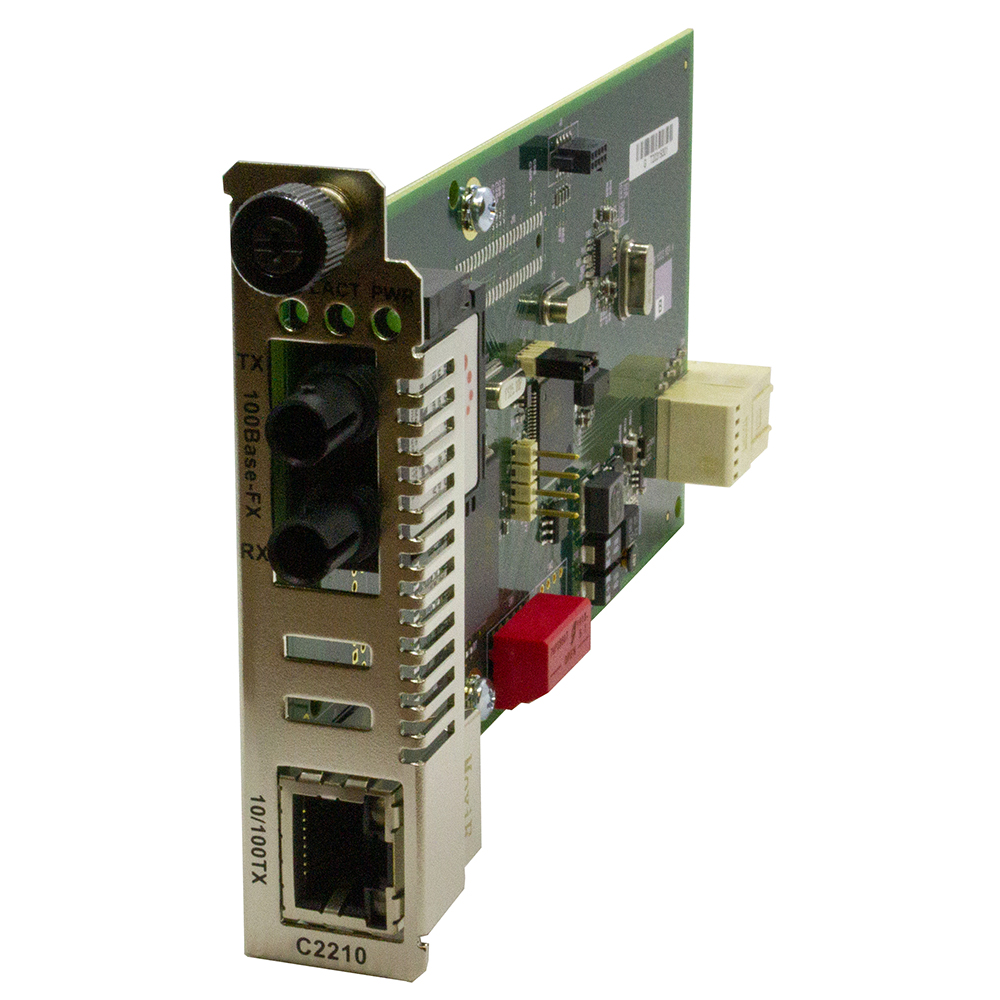

C2210-1011
$320.32
Ships on backorder
C2210-1013
$320.32
Ships on backorder

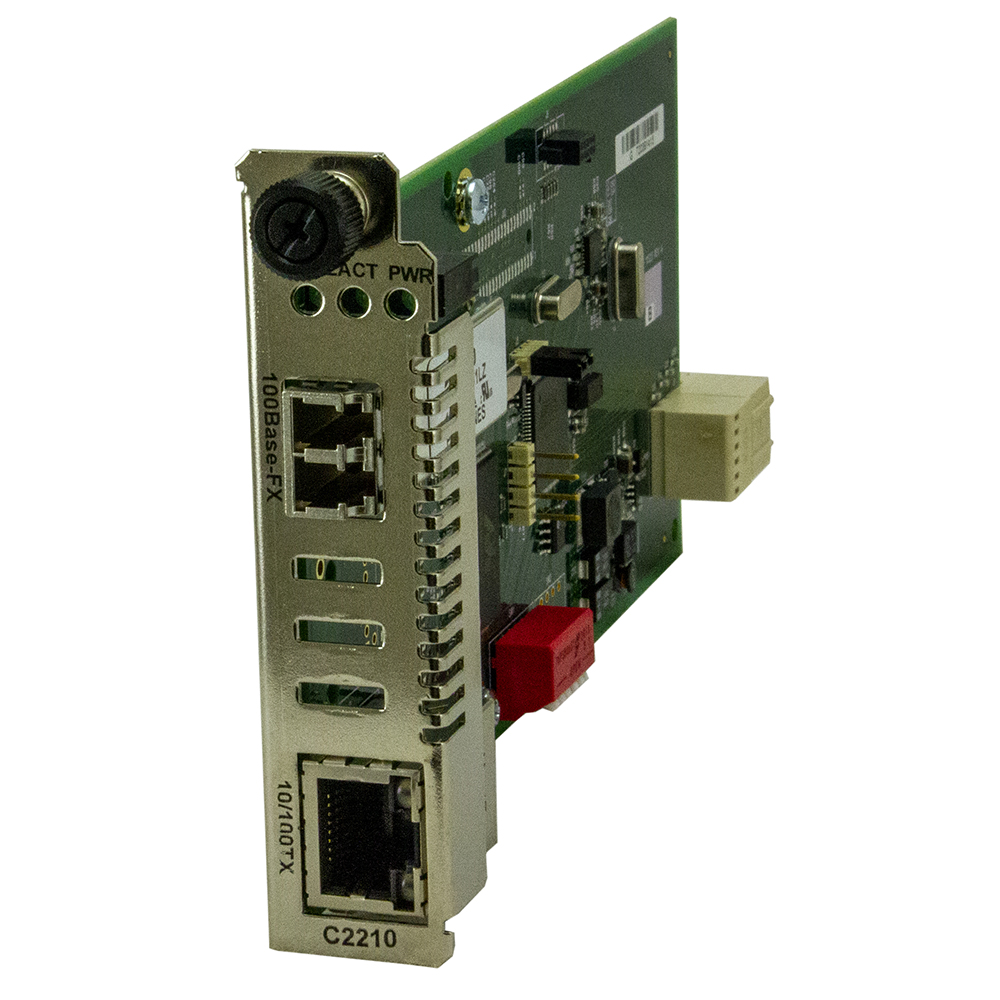

C2210-1039
$376.32
Ships on backorder

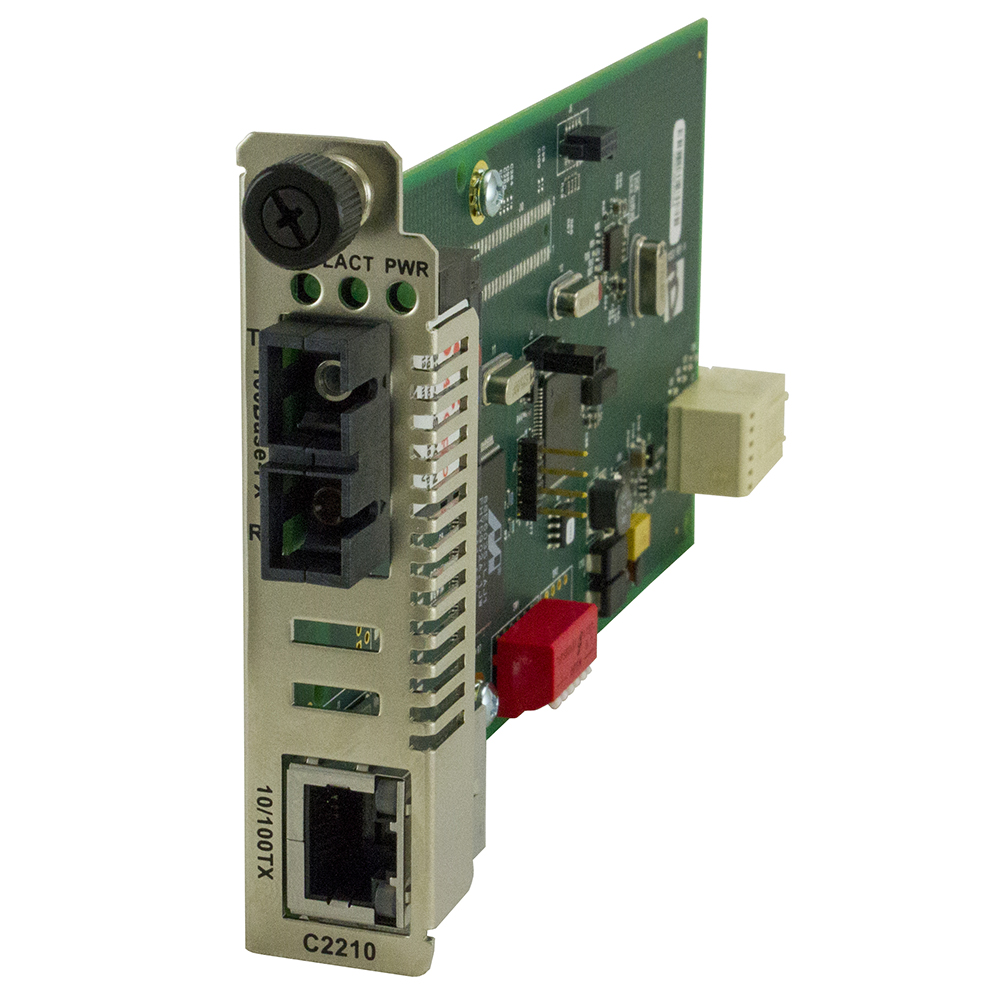

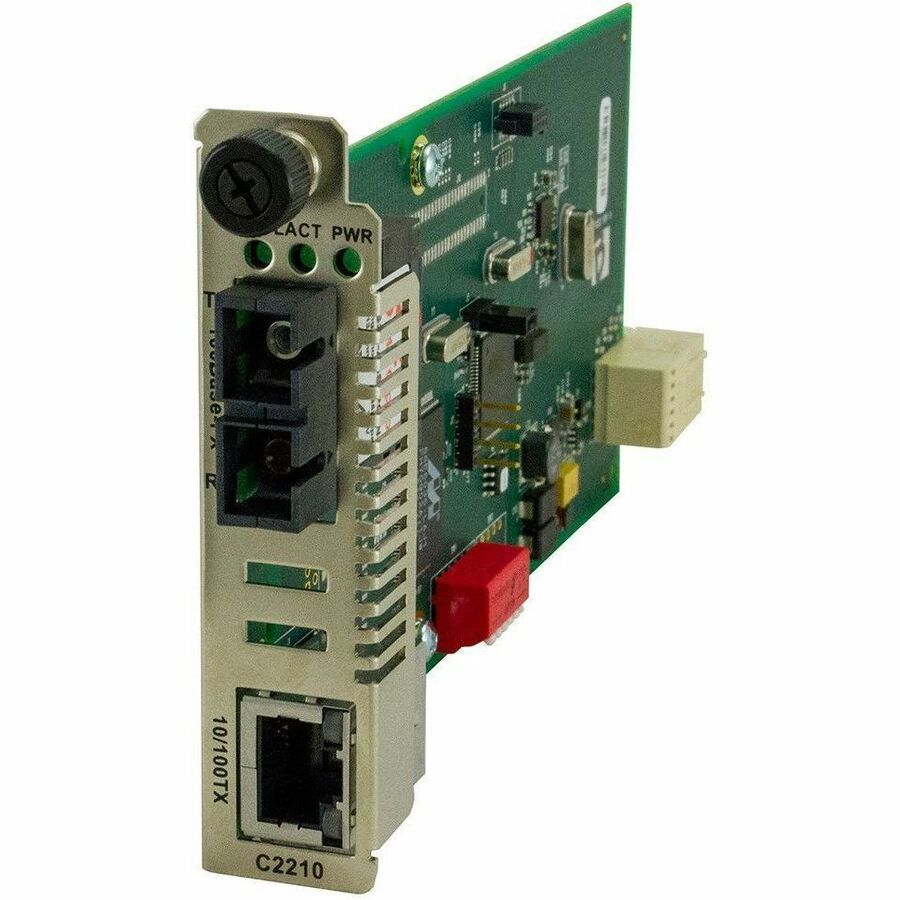

C2210-1014
$552.30
Ships on backorder
C2210-1019
$594.30
Ships on backorder

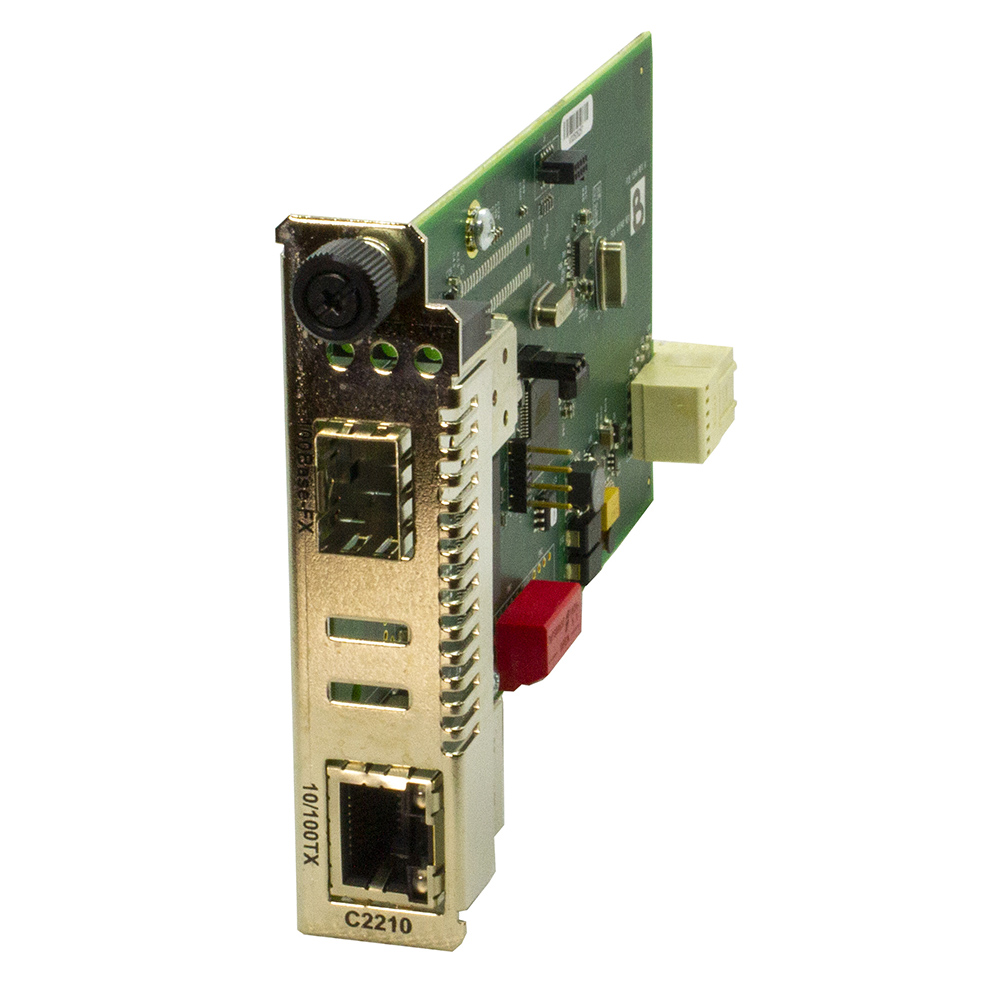

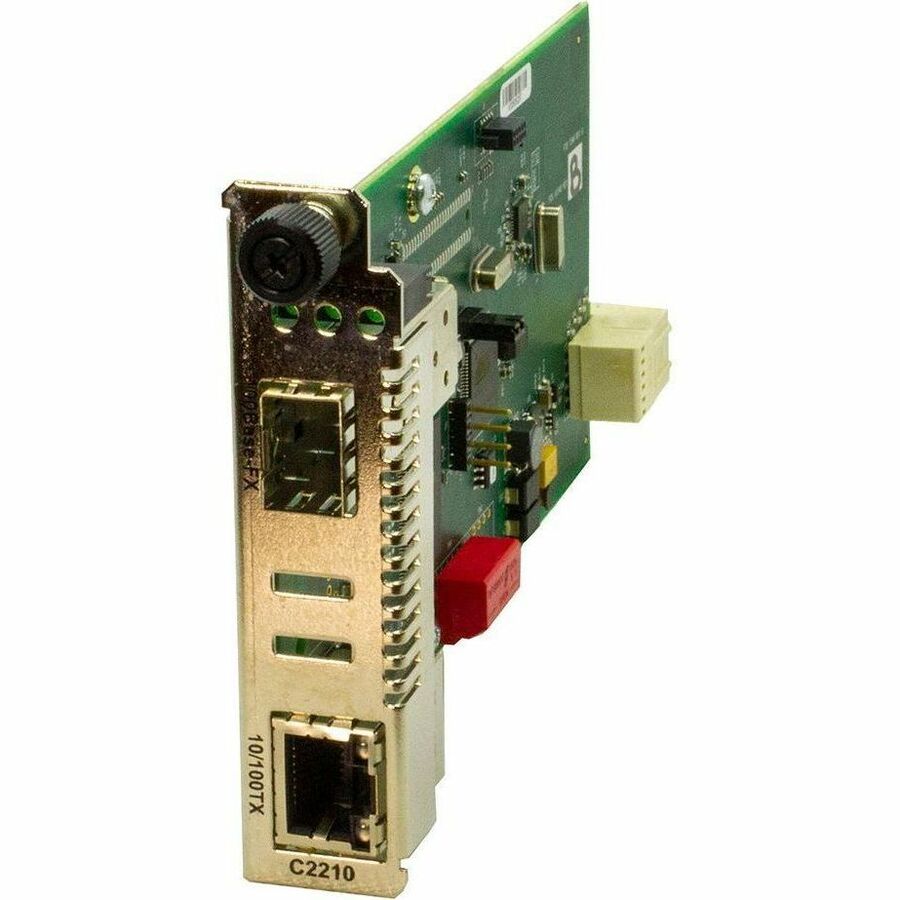

C2210-1040
$275.52
Ships on backorder
Where the C2210 Series is used
- High-density Fast Ethernet fiber termination in an ION chassis
- Connecting legacy 10Base-T equipment to 100 Mbps fiber
- Remotely managed copper-to-fiber links in central offices
- Campus Fast Ethernet links up to 20 km on single-mode
C2210 Series datasheets & documentation
C2210 Series FAQ
Which chassis does the C2210 module fit?
Lantronix states the C2210 can be used in any ION platform chassis. Its management features, such as status reporting and remote configuration, require an ION chassis with an ION Management Module installed.
Can the C2210 connect a 10 Mbps device to 100Base-FX fiber?
Yes. It operates at Layer 2 and performs rate conversion, so a legacy 10Base-T copper device can connect to a 100Base-FX fiber link. The copper port auto-negotiates or can be forced to 10 or 100 Mbps.
How far does the C2210 reach over fiber?
2 km on multimode fiber at 1300 nm (C2210-1011, -1013, -1039) and 20 km on single-mode at 1310 nm (C2210-1014, -1019). The C2210-1040 reach depends on the 100Base-X SFP module installed.
What is the operating temperature of the C2210?
0°C to 50°C with 5% to 95% non-condensing humidity, up to 10,000 ft. Lantronix notes the environmental rating also depends on the ION chassis chosen. The module draws 2.5 W.
