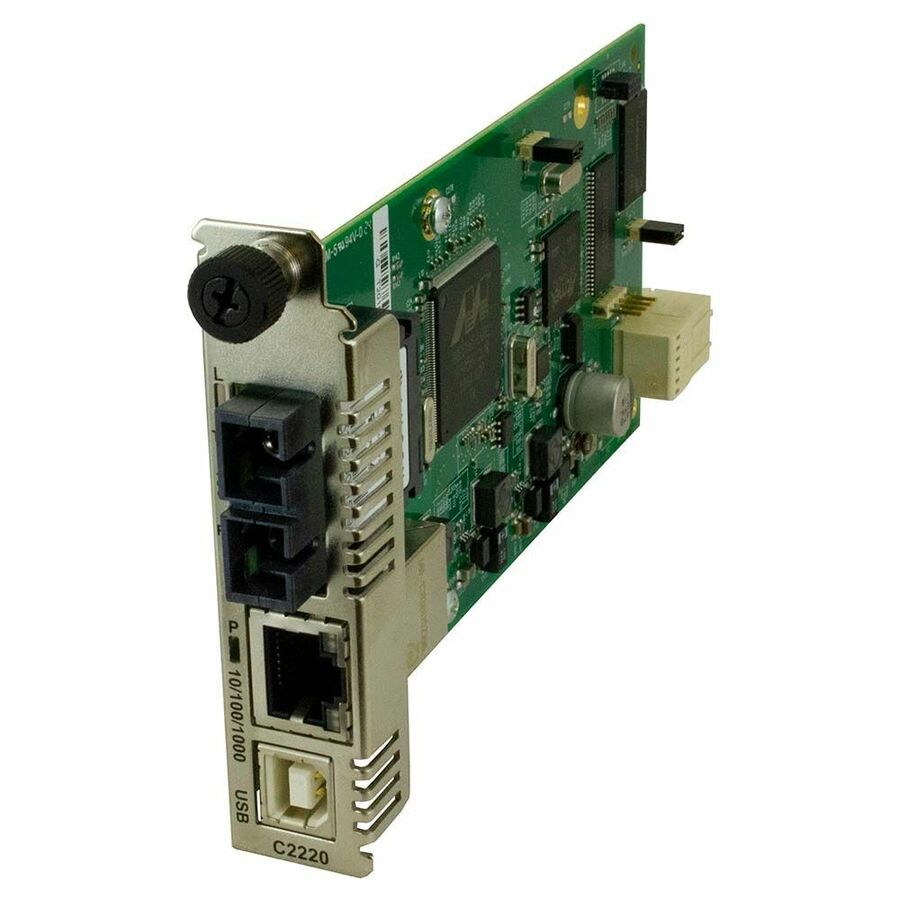

Lantronix C2220-1014 — Media Converter
$695.52$1,036.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Media conversion: 10/100/1000Base-T (RJ-45) [100 m] to 100Base-FX 1310nm single mode (SC) [20 km/12.4 mi.]
- Remote management: IP-based management individually or through an ION Management Module in a managed ION chassis
- Ethernet service controls: IEEE 802.3ah Link OAM, IEEE 802.1p QoS Packet Classification, and IEEE 802.1q VLAN and double VLAN tagging with 4096 VIDs
- Frame support: 10K Jumbo Frame Support and 10,240 bytes Max Frame Size
- Diagnostics: Link Pass Through, Far-End-Fault (FEF), Remote Loopback, DMI Optical Management, and cable diagnostic function for copper ports
- Management access: SSH, Telnet, Command Line Interface (CLI), Web management, and SNMP v1, v2c, and v3
- Certification support: MEF 9, 14 + 21 certified; EN55022 Class A, EN55024, CE Mark
The Lantronix C2220-1014 is a C2220 Series managed Network Interface Device (NID) module for integrating 100Base-FX fiber optic cabling into 10/100/1000 copper environments. This SKU provides 10/100/1000Base-T (RJ-45) [100 m] to 100Base-FX 1310nm single mode (SC) [20 km/12.4 mi.] with a 16.0 dB link budget. The C2220 can be managed individually via an IP address or through the ION Management Module when installed in a managed ION chassis. The series supports IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation. C2220 Series features include Link Pass Through, Far-End-Fault (FEF), Remote Loopback, DMI Optical Management, cable diagnostics for copper ports, RMON counters for each port, and field upgradeable firmware.
Ideal For
- Integrating 100Base-FX fiber optic cabling into 10/100/1000 copper environments
- Managing Ethernet links via IP address or an ION Management Module in a managed ION chassis
- Delivering Ethernet services in business applications
- Delivering Ethernet services in mobile backhaul applications
Specifications
| Depth | 6.5” [165 mm] |
| Width | 0.86” [22 mm] |
| Height | 3.4” [86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Operating | 0°C to 50°C |
| Standards | IEEE 802.3; IEEE 802.3ah; IEEE 802.1p; IEEE 802.1Q |
| Link Budget | 16.0 dB |
| Certifications | EN55022 Class A, EN55024, CE Mark |
| Max Frame Size | 10,240 bytes |
| Fiber Data Rate | 100 Mbps |
| Fiber Interface | 100Base-FX 1310nm single mode (SC) [20 km/12.4 mi.] |
| Copper Data Rate | 10/100/1000 Mbps |
| Copper Interface | 10/100/1000Base-T (RJ-45) [100 m] |
| Power Consumption | 4.5 Watts |
| Filtering Addresses | 8K MAC Addresses |
Frequently Asked Questions
What interfaces does C2220-1014 provide?▾
C2220-1014 converts 10/100/1000Base-T (RJ-45) [100 m] to 100Base-FX 1310nm single mode (SC) [20 km/12.4 mi.].
How is the C2220 managed?▾
The C2220 can be managed individually via an IP address or by the ION Management Module when installed in a managed ION chassis.
Which management features are listed for the C2220 Series?▾
The C2220 Series lists IEEE 802.3ah Link OAM, IEEE 802.1p QoS Packet Classification, IEEE 802.1q VLAN and double VLAN tagging with 4096 VIDs, SSH, Telnet, CLI, Web management, and SNMP v1, v2c, and v3.
What operating environment is specified?▾
Environment specs are dependent on the chassis chosen. The listed operating range is 0°C to 50°C.
