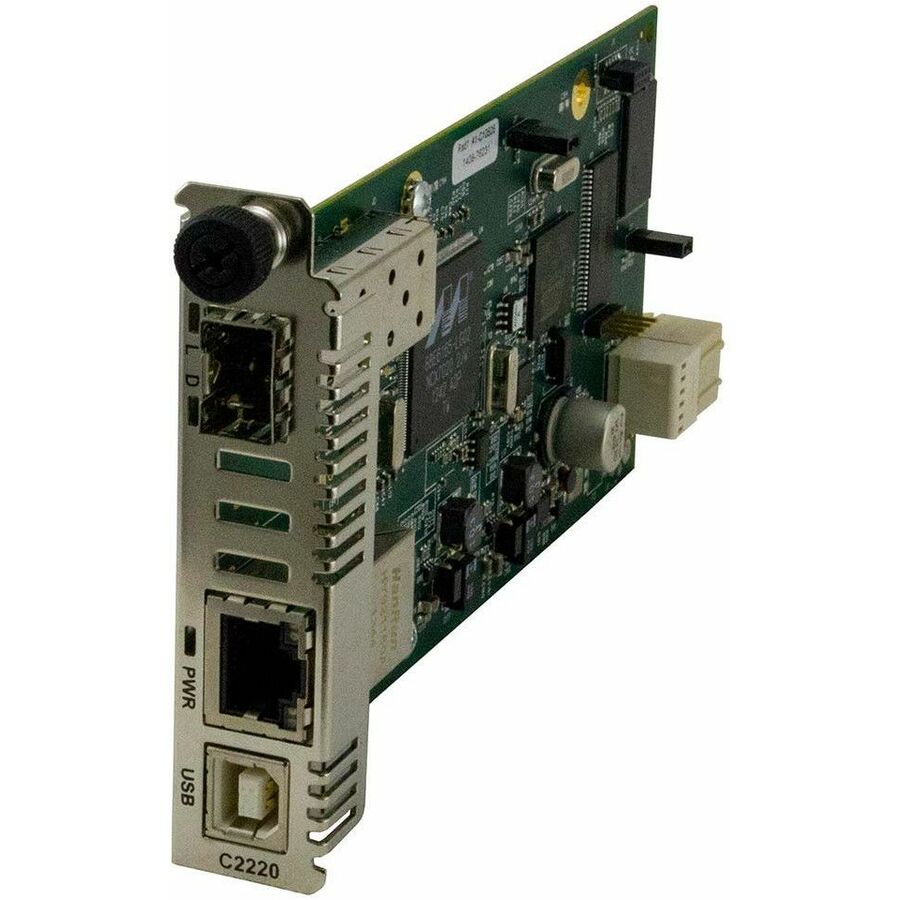

Lantronix C2220-1040 — C2220 Series SFP Nid Module
$508.01$756.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T (RJ-45) [100 m] to 100Base-X SFP Slot (empty)
- IEEE 802.3ah Link OAM for managed link operations
- 10K Jumbo Frame Support for large Ethernet frames
- IEEE 802.1q VLAN and double VLAN tagging with 4096 VIDs
- SSH, Telnet, Command Line Interface (CLI), and Web management
- 4.5 Watts power consumption
The Lantronix C2220-1040 is a C2220 Series managed Network Interface Device (NID) module for converting 10/100/1000Base-T (RJ-45) [100 m] copper links to a 100Base-X SFP Slot (empty). It is part of the ION media conversion platform and is built for remotely managed Ethernet links. The C2220 can be managed individually via an IP address or by the ION Management Module when installed in a managed ION chassis. It supports IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation. Lantronix positions the C2220 Series for business and mobile backhaul applications where users need managed Ethernet services across copper and fiber environments.
Ideal For
- Integrating fiber optic cabling into 10/100/1000 copper environments
- Remotely managing Ethernet links through IP-based management
- Business Ethernet service delivery with VLAN, QoS, and bandwidth allocation features
- Mobile backhaul applications using managed Ethernet services
Specifications
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3; IEEE 802.3ah; IEEE 802.1p; IEEE 802.1Q |
| Warranty | Lifetime |
| Interface | 10/100/1000Base-T (RJ-45) [100 m] to 100Base-X SFP Slot (empty) |
| Dimensions | 0.86” [22 mm] x 6.5” [165 mm] x 3.4” [86 mm] |
| Certifications | EN55022 Class A, EN55024, CE Mark |
| Max Frame Size | 10,240 bytes |
| Fiber Data Rate | 100 Mbps |
| Copper Data Rate | 10/100/1000 Mbps |
| Power Consumption | 4.5 Watts |
| Filtering Addresses | 8K MAC Addresses |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
Does C2220-1040 include an SFP module?▾
The part row describes C2220-1040 as 10/100/1000Base-T (RJ-45) [100 m] to 100Base-X SFP Slot (empty).
How is the C2220 managed?▾
The C2220 can be managed individually via an IP address or by the ION Management Module when installed in a managed ION chassis.
What data rates does the C2220 Series support?▾
The listed data rates are Copper: 10/100/1000 Mbps and Fiber: 100 Mbps.
What chassis environment should buyers check?▾
The environment specs are dependent on the chassis chosen. The listed operating range is 0°C to 50°C.
