Lantronix C2220 Series ION Fast Ethernet Remotely Managed NID Modules
Remotely managed ION Network Interface Device cards that hand off 10/100/1000Base-T copper over 100Base-FX fiber, with Link OAM, MEF certification, VLAN and QoS for business Ethernet and mobile backhaul.
From $756.00
Overview
About the Lantronix C2220 Series
The C2220 Series (Lantronix ION C2220) is a managed Network Interface Device (NID) module for the Lantronix ION chassis. It sits at the demarcation between a service provider's fiber and a customer's copper Ethernet. Where a plain media converter only translates media, the C2220 lets the operator monitor and control the link: it supports IEEE 802.3ah Link OAM, remote loopback and Far-End-Fault, and is MEF 9, 14 and 21 certified for Carrier Ethernet services.
Each card has one 10/100/1000Base-T RJ-45 port and one 100Base-FX fiber port. Service features include 802.1Q VLAN and double tagging across 4096 VIDs, 802.1p QoS classification, bandwidth profiling, a management VLAN, 10,240-byte jumbo frames and an 8K MAC table. Diagnostics include DMI optical monitoring, copper cable diagnostics and per-port RMON counters.
The C2220 can be managed on its own IP address or by the ION Management Module in a managed ION chassis. A remote unit can also be managed in-band by its local peer. Interfaces include web, CLI, Telnet, SSH, SNMP v1/v2c/v3 and Focal Point, with RADIUS, DHCP client, SNTP and TFTP, plus a USB port for basic setup. The card draws 4.5 W.
Key capabilities
- 802.3ah Link OAM
- Standards-based Link OAM, remote loopback and Far-End-Fault let operators test and monitor the fiber link from the network side.
- MEF 9, 14 and 21
- Certified to MEF 9, 14 and 21 for delivering Carrier Ethernet services in business Ethernet and mobile backhaul applications.
- Two management modes
- Manage the card on its own IP address, or in-band through a local peer, or via the ION Management Module.
- VLAN and QoS
- 802.1Q VLAN and double tagging with 4096 VIDs, 802.1p classification and bandwidth profiling per service.
- Secure access
- SSH, SSL, SNMPv3 and RADIUS client authentication, with a dedicated management VLAN to separate control traffic from customer data.
How to choose the right C2220 Series part number
Both C2220 cards have a 10/100/1000Base-T RJ-45 port; they differ on the fiber side. C2220-1014 has fixed 100Base-FX 1310 nm single-mode SC optics rated 20 km (12.4 mi) with a 16.0 dB link budget. C2220-1040 has an empty 100Base-X SFP slot for multimode, longer-reach, single-fiber or CWDM SFPs. Pick the 1014 for a standard 20 km single-mode run, and the 1040 when the far end or fiber plant needs a specific optic.
Configure & order
Find your C2220 Series part number
Every orderable C2220 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

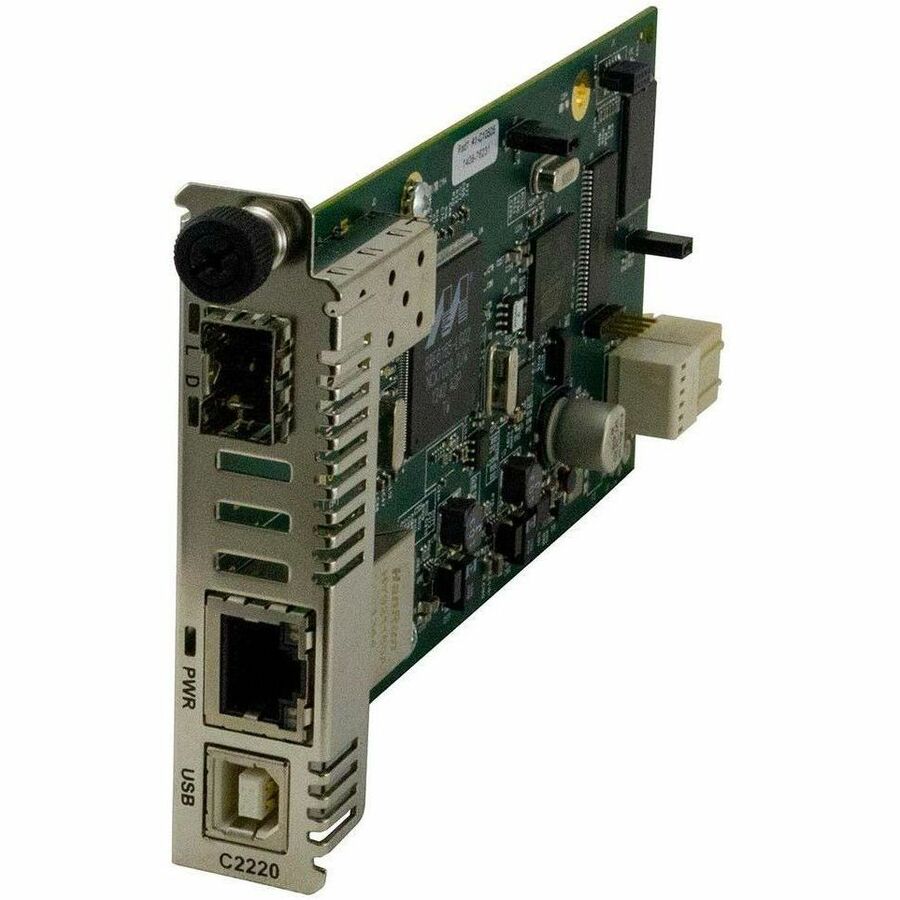

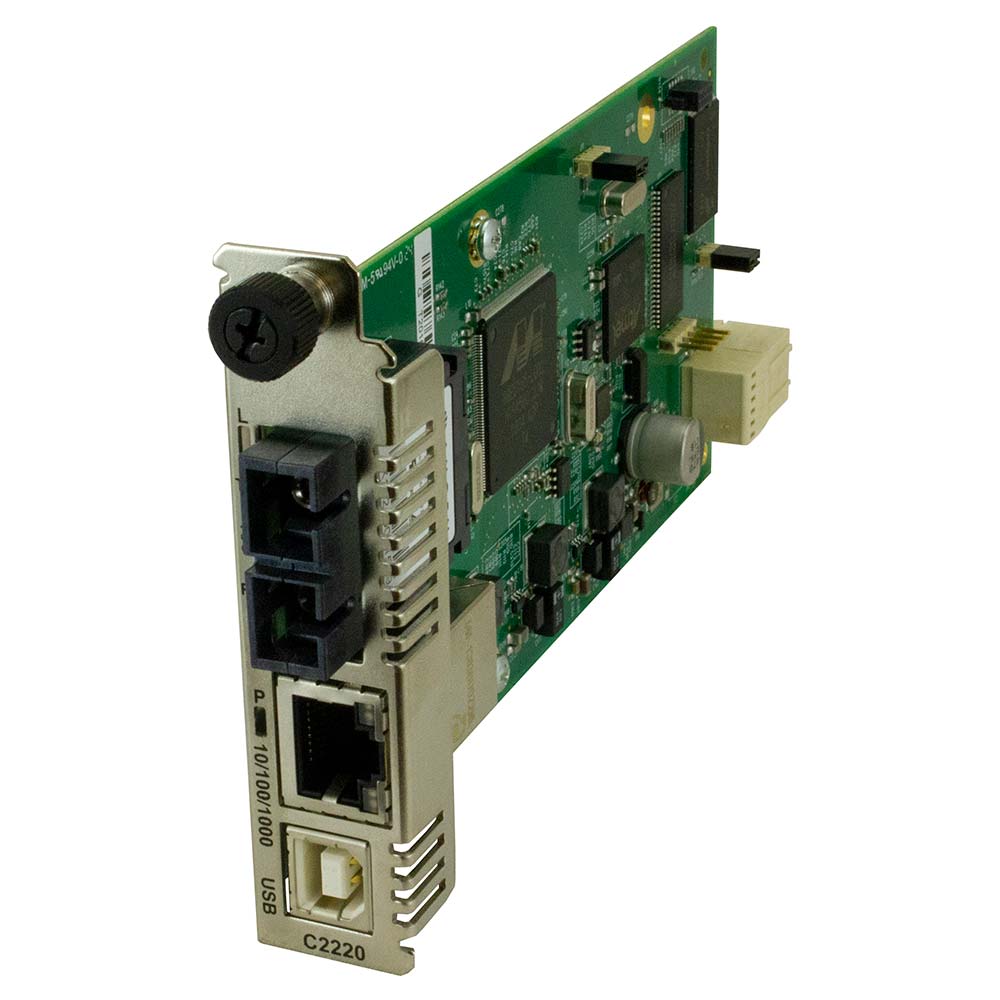

C2220-1014
$1,036.00
Ships on backorder

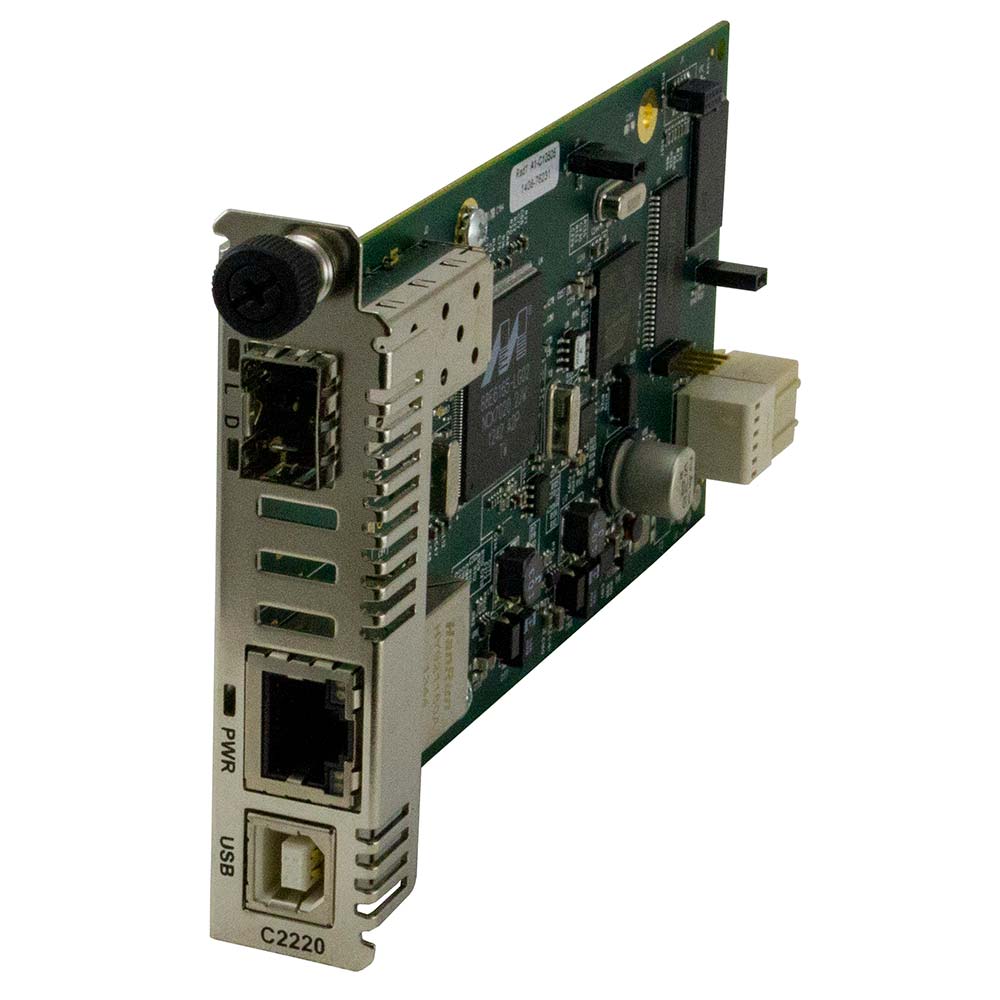

C2220-1040
$756.00
Ships on backorder
Where the C2220 Series is used
- Business Ethernet service demarcation at customer premises
- Mobile backhaul hand-offs with Link OAM monitoring
- Provider VLAN tagging (Q-in-Q) at the network edge
- Remote loopback testing of 100 Mbps fiber circuits
C2220 Series datasheets & documentation
- Product BriefPDF
- C2220 Series Product Brief (A4)PDF
- ION Media Conversion PlatformPDF
- C2220, S2220, C3220, S3220 Series User Guide Rev KPDF
- C2220, S2220, C3220, S3220 Series CLI Reference Guide Rev HPDF
- CLI initial Set-up Procedure (PDF 802.33 KB)PDF
- C2220, S2220, C3220, S3220, C3230, S3230 Series Installation Guide Rev DPDF
- Configure VLAN 100 with Provider S-Tag (PDF 1.40 MB)PDF
C2220 Series FAQ
What is the difference between the C2220 and a regular media converter?
The C2220 is a managed NID. Beyond copper-to-fiber conversion, it offers 802.3ah Link OAM, remote loopback, VLAN tagging, QoS, bandwidth profiling and IP-based management, and it is MEF 9, 14 and 21 certified.
What fiber speed does the C2220 use?
The fiber port is 100Base-FX (100 Mbps). The copper port is 10/100/1000Base-T. C2220-1014 reaches 20 km on single-mode fiber. The C2220-1040 accepts an SFP of your choice.
How is the C2220 managed?
Individually via its own IP address, in-band by a local peer, or through the ION Management Module in a managed ION chassis. Web, CLI, Telnet, SSH, SNMP v1/v2c/v3 and Focal Point are supported.
Does the C2220 support Q-in-Q?
Yes. It supports IEEE 802.1Q VLAN and double VLAN tagging with 4096 VIDs. Lantronix publishes setup guides for provider S-Tag and C-Tag configurations and for C-Tags with T-Tags.
How much power does the C2220 draw?
4.5 W, drawn from the ION chassis. Operating environment depends on the chassis chosen, with the card rated 0°C to 50°C, 5% to 95% non-condensing humidity and up to 10,000 ft altitude.
