Lantronix C3220-1040 — Managed NID Module
$694.34$1,034.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T (RJ-45) [100 m] copper interface
- (1) 100/1000Base-X SFP Slot (empty)
- IP-Based Remote Management for remote device management by a local peer
- IEEE 802.3ah Link OAM
- 10K Jumbo Frame Support with 10,240 bytes max frame size
- IEEE 802.1Q VLAN and double VLAN tagging with 4096 VIDs
- SSH, Telnet, Command Line Interface (CLI) and Web management

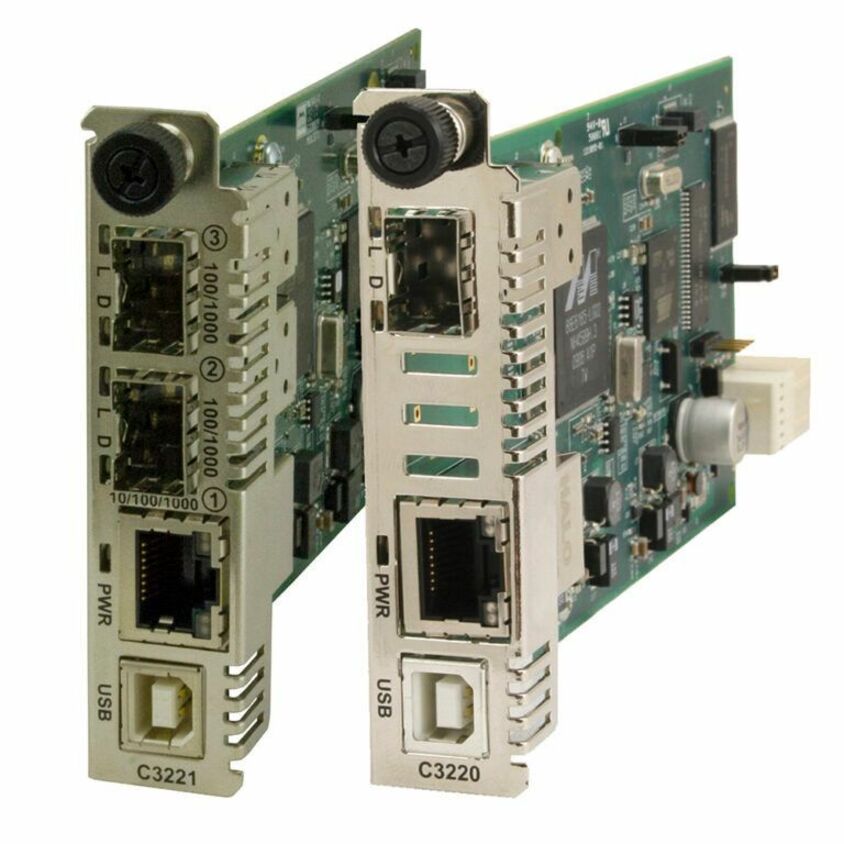

The Lantronix C3220-1040 is a C3220 Series managed Network Interface Device (NID) module. It provides 10/100/1000Base-T (RJ-45) [100 m] to (1) 100/1000Base-X SFP Slot (empty), allowing fiber optic cabling to be integrated into 10/100/1000 copper environments. As a remotely managed device, the C3220 can be managed individually via an IP address or by the ION Management Module when installed in a managed ION chassis. The series supports OAM/IP-Based Management, including IP-Based Remote Management and in-band remote management. The C3220 Series includes IEEE 802.3ah Link OAM, IEEE 802.1p QoS packet classification, IEEE 802.1Q VLAN and double VLAN tagging with 4096 VIDs, RMON counters for each port, DMI Optical Management, cable diagnostic function for copper ports, SSH, Telnet, Command Line Interface (CLI) and Web management.
Ideal For
- Integrating fiber optic cabling into 10/100/1000 copper environments
- Remote management of Ethernet links through an IP address
- Managed ION chassis deployments using the ION Management Module
- Ethernet service delivery in business and mobile backhaul applications
Specifications
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Standards | IEEE 802.3; IEEE 802.3ah; IEEE 802.1p; IEEE 802.1Q; IEEE 802.1X |
| Dimensions | 0.86” [22 mm] x 6.5” [165 mm] x 3.4” [86 mm] |
| SFP+ Interface | (1) 100/1000Base-X SFP Slot (empty) |
| Certifications | EN55022 Class A, EN55024, CE Mark |
| Max Frame Size | 10,240 bytes |
| Fiber Data Rate | 1000 Mbps |
| Copper Data Rate | 10/100/1000 Mbps |
| Copper Interface | 10/100/1000Base-T (RJ-45) [100 m] |
| Power Consumption | 4.5 Watts |
| Filtering Addresses | 8K MAC Addresses |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What interface does the C3220-1040 provide?▾
It provides 10/100/1000Base-T (RJ-45) [100 m] to (1) 100/1000Base-X SFP Slot (empty).
Is an SFP included with this SKU?▾
No. The Lantronix part row describes this SKU as having a 100/1000Base-X SFP Slot (empty).
How is the C3220 managed?▾
The C3220 can be managed individually via an IP address or by the ION Management Module when installed in a managed ION chassis. It also supports IP-Based Remote Management and in-band remote management.
What operating environment is listed for the C3220 Series?▾
Environment specs are dependent on the chassis chosen. The listed operating range is 0°C to 50°C, with 5% to 95% humidity (non-condensing).
